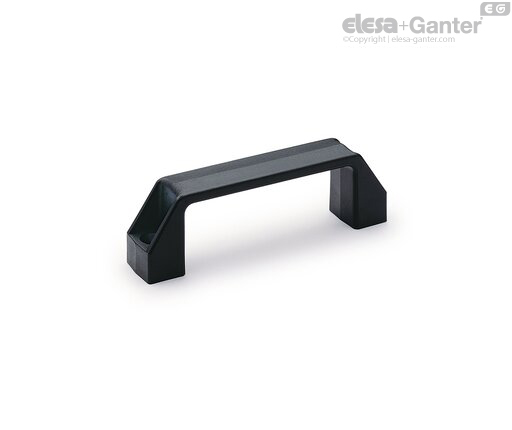

M.443/200 AE-V0
M.443 AE-V0 Poignées de pont
En stock Toutes les tailles et variantes de M.443 AE-V0
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

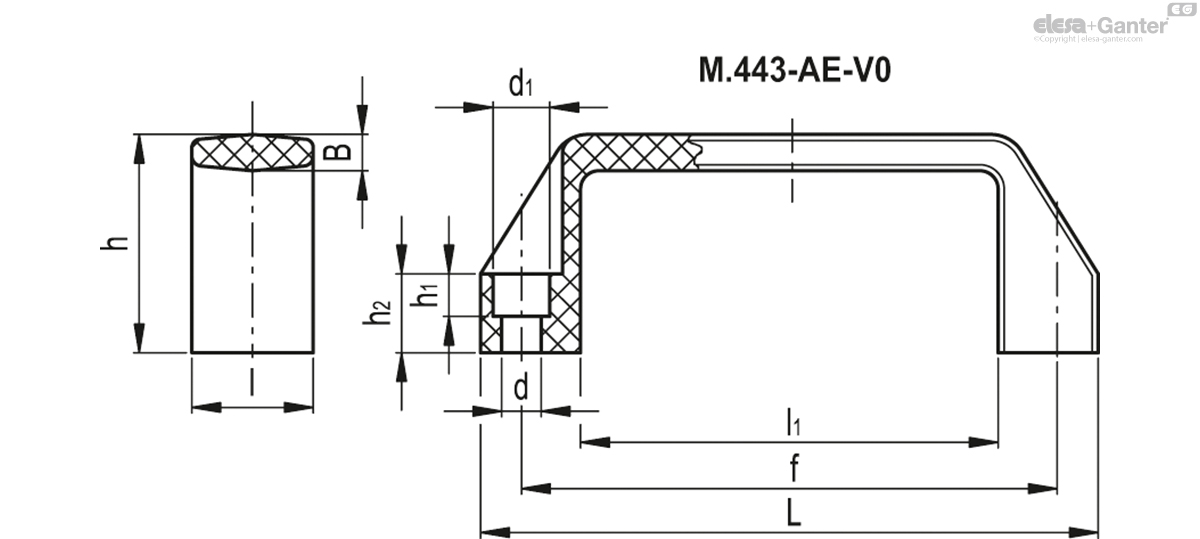

Caractéristiques techniques
- Code
- 150031
- L
- 196
- f
- 179±1
- d
- 8.5
- d1
- 13.5
- h
- 50
- h1
- 8.5
- h2
- 17
- B
- 7.5
- l
- 28
- l1
- 151
- F1
[N] - 1400
- F2
[N] - 2100
- L1
[J] - 20
- L2
[J] - 13
- 80
Material
Glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguish UL-94 V0, black colour, matte finish.
Standard execution
Pass-through holes for cylindrical-head screws with hexagon socket.
Technical data
In long-term thermal ageing tests, with a maximum decrease in critical mechanical properties by 50%, the relative temperature index UL 746 B (RTI) was equal to 65.
The 'V0' certification in accordance with UL-94 V (Underwriters Laboratories) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating any incandescent drops.

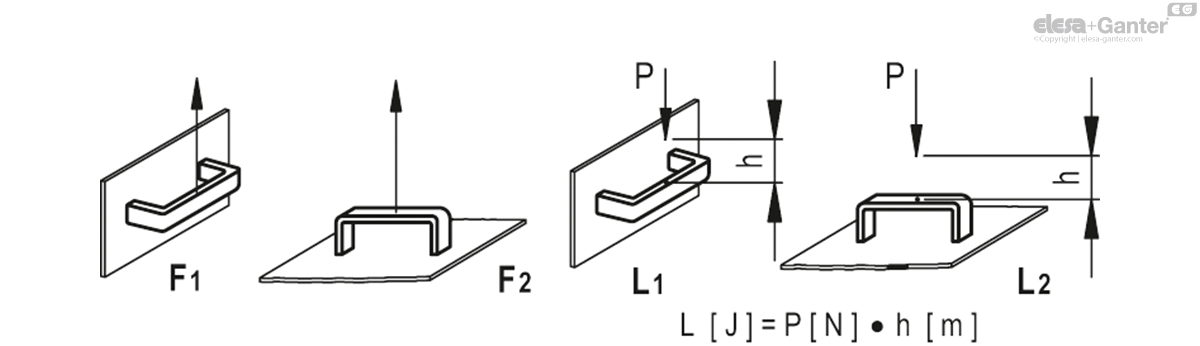

Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
