124.2-8-20
GN 124.2 Broches de centrage en inox
Délai: 1-2 semaines Toutes les tailles et variantes de GN 124.2
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

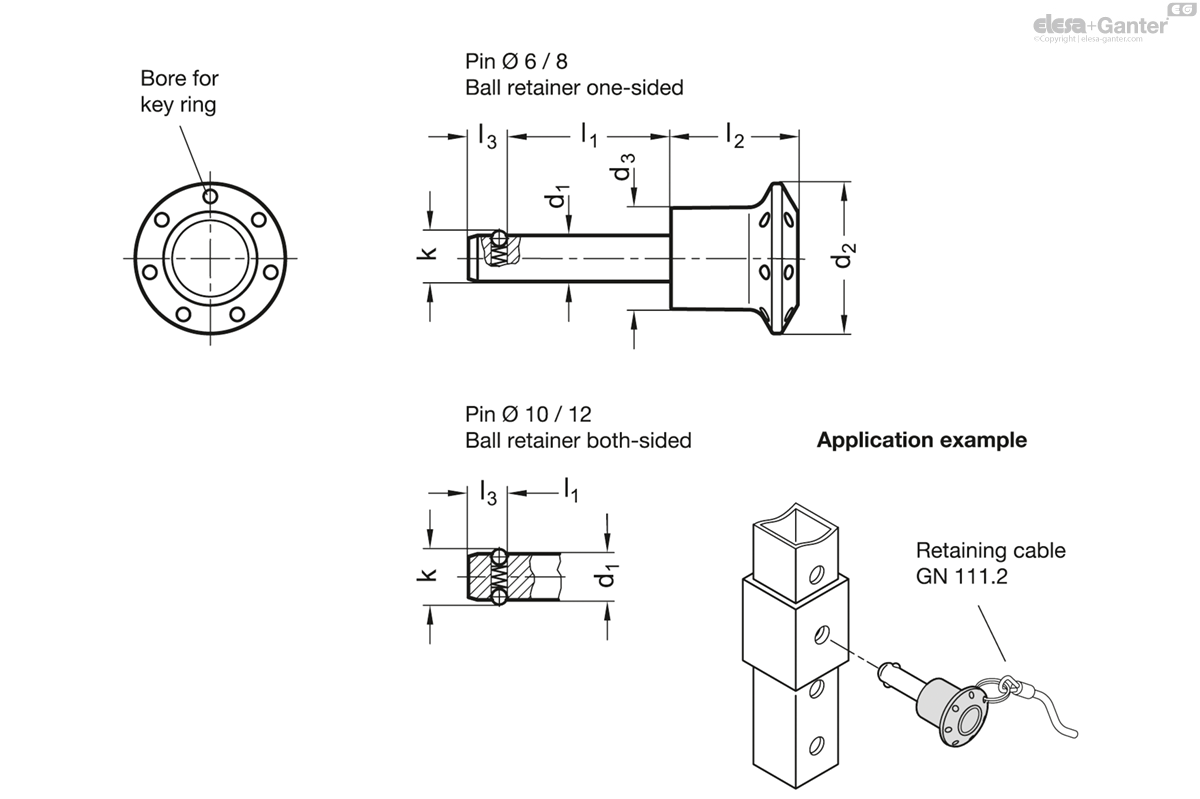

Caractéristiques techniques
- Code
- GN 124.2-8-20
- d1 -0.04/-0.08
- 8
- l1
- 20
- d2
- 26
- d3
- 17.5
- k
- 8.7
- l2
- 22
- l3
- 6.3
- Location bore
- 8
- Axial holding
force in N ≈ - 15
- Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 40
- 16
Pin
Stainless Steel AISI 303
Knob
Plastic Technopolymer (Polyamide PA)
- black-grey
- temperature resistant up to 80 °C
Ball
Stainless Steel AISI 420C
Spring
Stainless Steel AISI 631
GN 124.2 Stainless Steel-Locking pins are used for quick fixing, connecting and locking of various jig and fixture systems.
The locking balls are held in position by a pressure spring and are therefore not rigidly locked. The bolts can be quickly and easily inserted and removed from the locating hole.
The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
This standard replaces the previous Stainless Steel-Locking pins GN 124.
