113.1-8-0
GN 113.1 Broches à billes en inox
Délai: 1-2 semaines Toutes les tailles et variantes de GN 113.1
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques

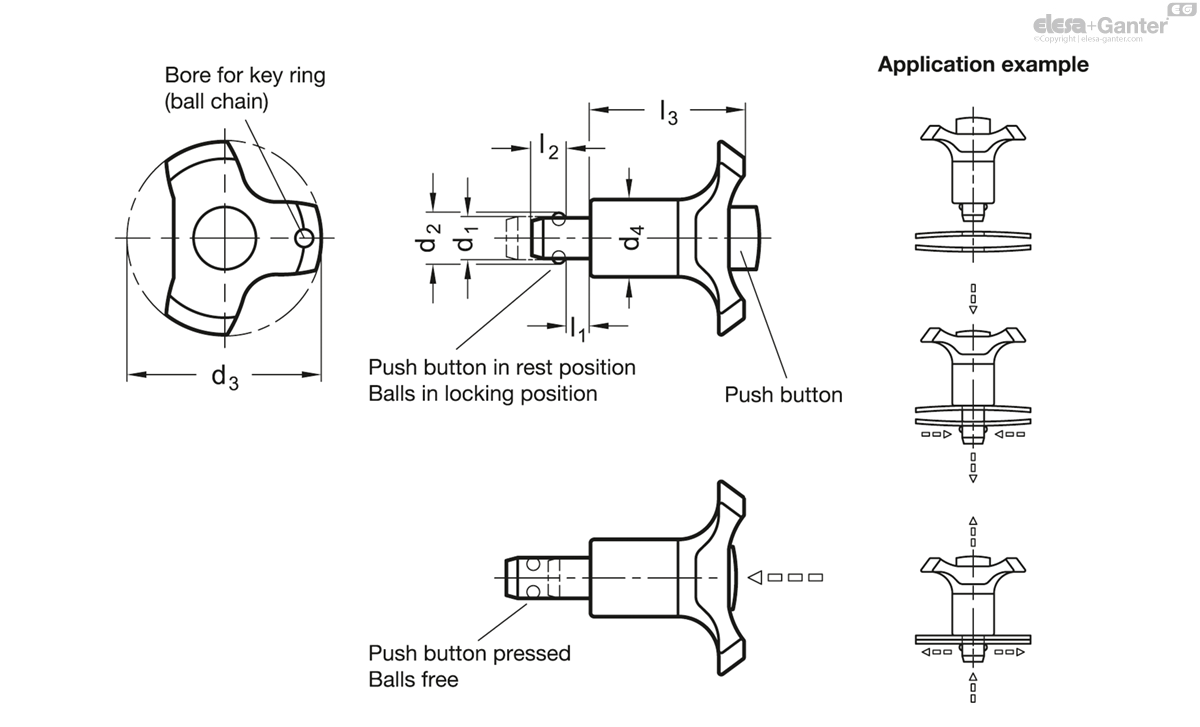

- Code
- GN 113.1-8-0
- d1 -0.04/-0.08
- 8
- l1 max.
- 5
- l1 min.
- 0
- d2
- 9.5
- d3
- 38
- d4
- 17.5
- l2
- 6.5
- l3
- 30
- Location
bore H11 - 8
- Clamping force
max. in N ≈ - 16
- 24
Pin
Stainless Steel AISI 303
Handle
Plastic (Polyamide PA)
- black-grey / red
- temperature resistant up to 80 °C
Balls
Stainless Steel AISI 420C
Spring
Stainless Steel AISI 631
Stainless Steel-Ball lock pins GN 113.1 are used for rapid clamping and, at the same time, play-free clamping of thin components in particular where frequent clamping and releasing is required. A typical application is the alignment and clamping of sheet metal during a welding process.
By depressing the spring-loaded push button the pin advances by the length l2 and at the same time frees the two balls.
