928-25 GN 928-ST Acier

928-25 GN 928-ST Acier

Acier / Acier inoxydable
Toutes les tailles et variantes
  • INOX
  • RoHS

Disponible immédiatement (1-2 jours ouvrables)

Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 928-25
d1 h11
25
d2
M 12
d3 Round workpiece
40 - 60
d4 H7
25
d5
M 8
e +0.2
d3/2 + 5.6
l1 max.
72
l2
25
l3
12
A/F
10
Max. tightening torque
in Nm
82
Code no.
mounting tool
GN 928.1-10
weight
188
928-25 drawing
Video: GN 928

Version in Steel

Steel

  • Blackened
  • Socket cap screw DIN 912

Zinc plated, blue passivated

Version in Stainless Steel

Stainless steel AISI 303 NI

Socket cap screw DIN 912

Stainless steel

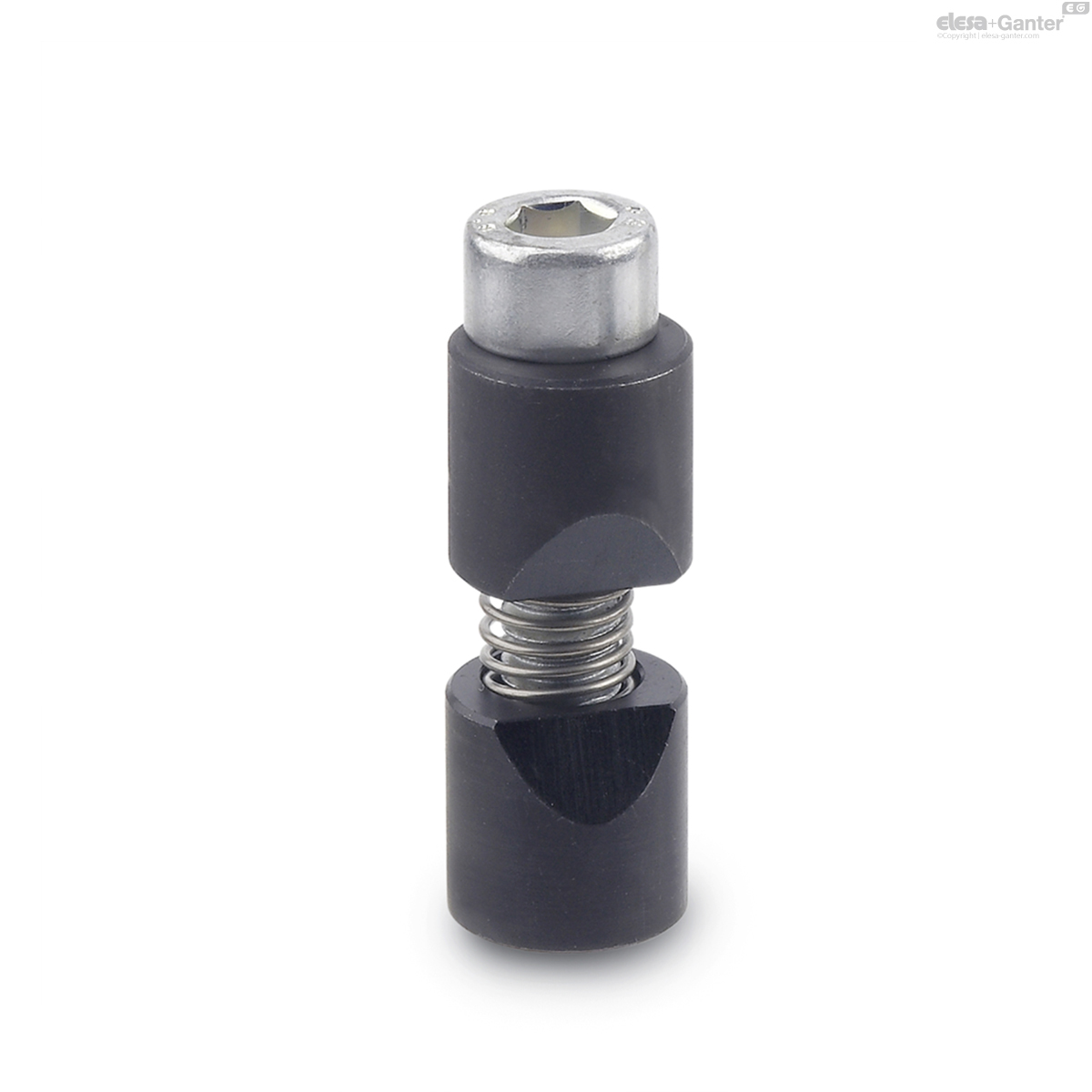

With the shaft clamping unit 'trueround' GN 928, round workpieces from 6 to 125 mm can be rapidly, accurately and economically clamped.

The threaded hole d5 can be used for attaching a jig or fixture or a fixing screw for holding the clamping unit in an axial position during an assembly operation.

  • Mounting tools  GN 928.1 (Code no. see table)
