HCFE.24/C-1
HCFE-C Sites de circulation pétrolière
En stock Toutes les tailles et variantes de HCFE-C
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

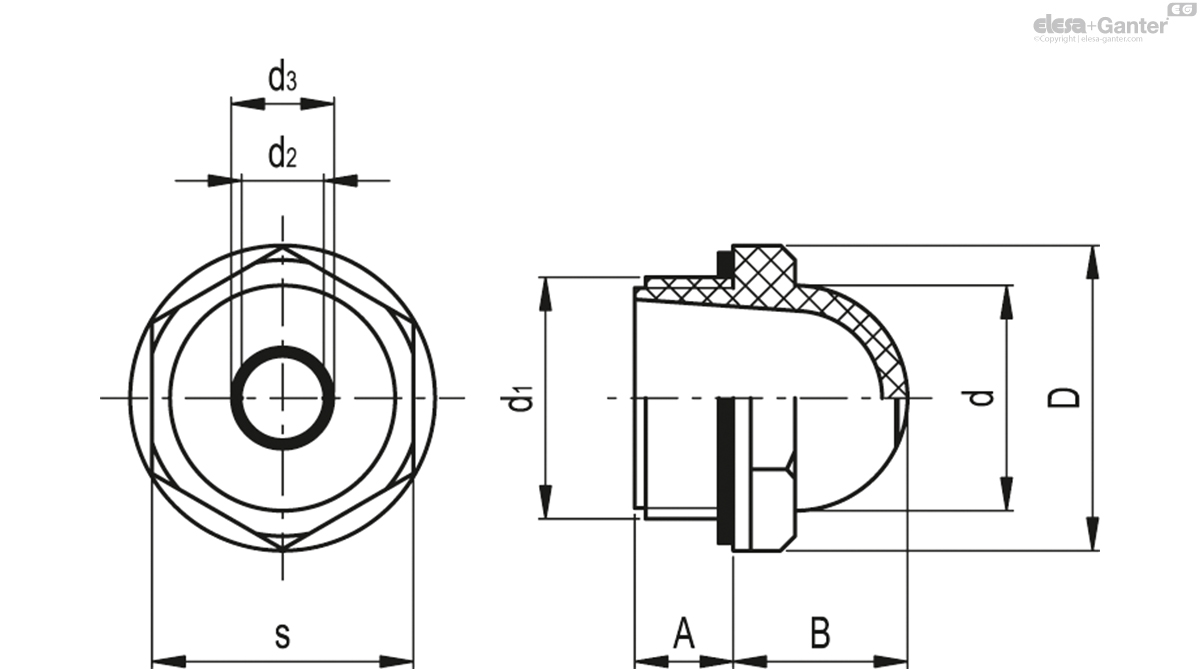

Caractéristiques techniques
- Code
- 11106
- d1
- G 1
- A
- 11
- B
- 24
- D
- 42
- d
- 31
- d2
- 14
- d3
- 15
- s
- 36
- Tightening torque
[Nm] - 8÷10
- 18
Material
Transparent polyamide based (PA-T) technopolymer. Avoid contact with alcohol or detergents containing alcohol.
Standard executions
Reading reference outlined by a reference circle:
- HCFE-C: with time stamped red circle.
- HCFE-CB: with time stamped white circle.
Tampoprinting resistant to oils with additives, greases, alkali and white spirit; resistant to abrasions under normal working conditions. Avoid contact with solvents, alcohol or detergents containing alcohol.
Packing ring
NBR synthetic rubber.
Maximum continuous working temperature
100°C.
Technical data
The tightening torque indicated in the table guarantees an optimal tightness, keeping the packing ring in the correct position.
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories on request
Brass nut type GH. for fitting to reservoirs with wall thickness smaller than 5 mm.
