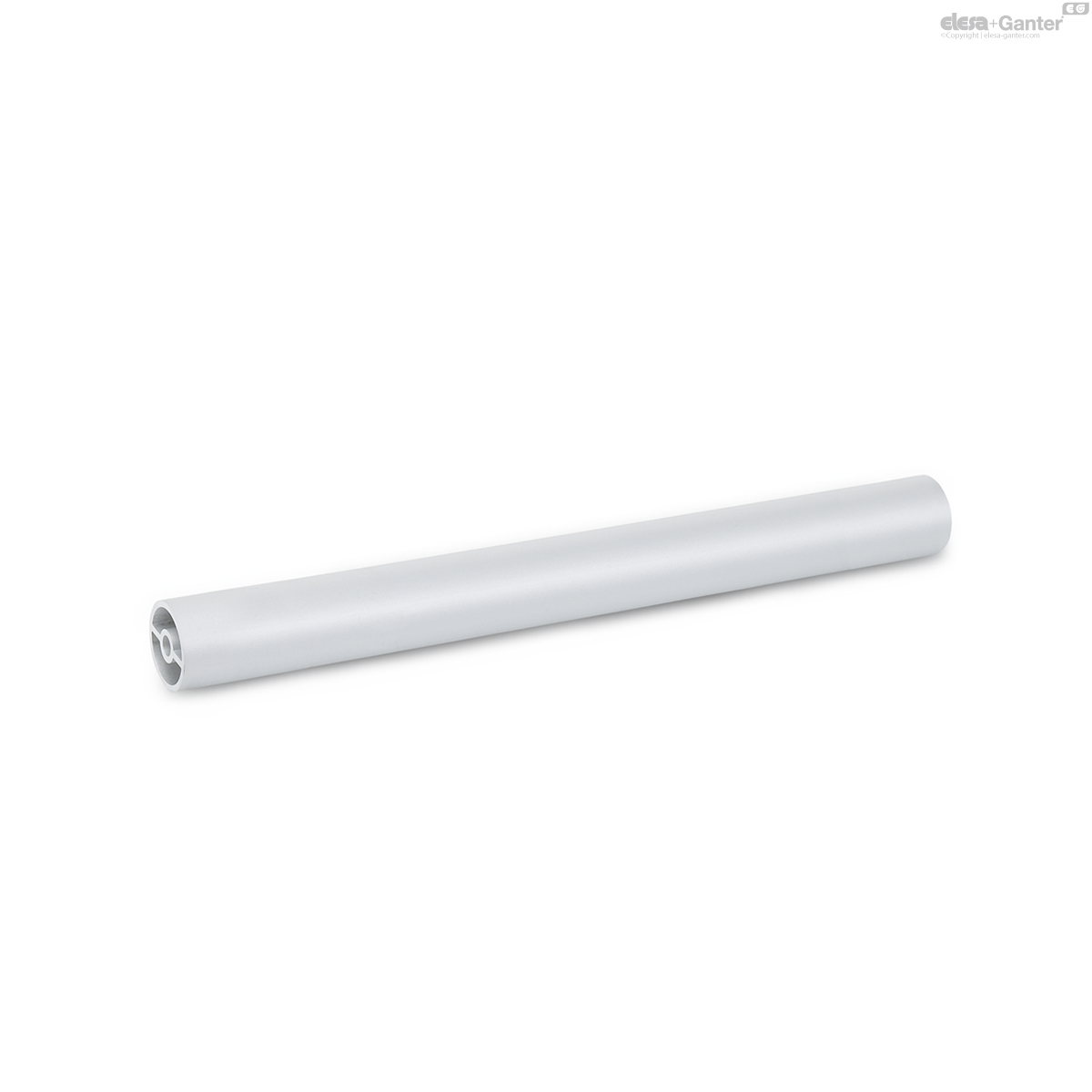

GN 930Handle Tubes

Handle Tubes — EL - Anodized

Aluminum, with Screw Channel

  • Icons/__logo__RoHS__.png
Handle Tubes
Handle Tubes
SW - RAL 9005
EL - Anodized, natural color

GN 930

Catalogue
d1 ±0.2
Length l ±0.25
d2
For thread tapping
screws DIN 7500
20
194
4.5
M 5
63
20
244
4.5
M 5
80
20
294
4.5
M 5
98
20
394
4.5
M 5
150
28
192
5.5
M 6
90
28
242
5.5
M 6
120
28
292
5.5
M 6
150
28
392
5.5
M 6
195
28
492
5.5
M 6
240
28
592
5.5
M 6
280
30
189
3.6
M 4
106
30
289
3.6
M 4
164
30
389
3.6
M 4
220
30
489
3.6
M 4
280
30
589
3.6
M 4
340
30
989
3.6
M 4
560

Aluminum

  • Powder coated
  • Black, RAL 9005, textured finish SW
  • (available up to 3000 mm length)
  • Anodized, natural color EL
  • (available up to 2600 mm length)

Handle tubes GN 930 with screw channel are designed for use in a variety of different tube handles (e.g. GN 333).

For applications not requiring handle bases, the screw channel provides a very economical fixing solution with thread-tapping screws. The lengths l listed in the table are ex stock lengths. Depending to the finish, any lengths until max. 3000 mm are available.

  • GN 333.8 Handle Legs (for tubes Ø 28, angled)
  • GN 333.9 Handle Legs (for tubes Ø 28, straight)
  • Plastic cover in black or light gray for tube Ø 28
Related products
Aluminium tube with epoxy resin coating

ETH-EP

Tubular handles Technopolymer and aluminium
Mounting from the operator‘s side (only for d<sub>1</sub> = 28)
