GN 750-NControl Levers

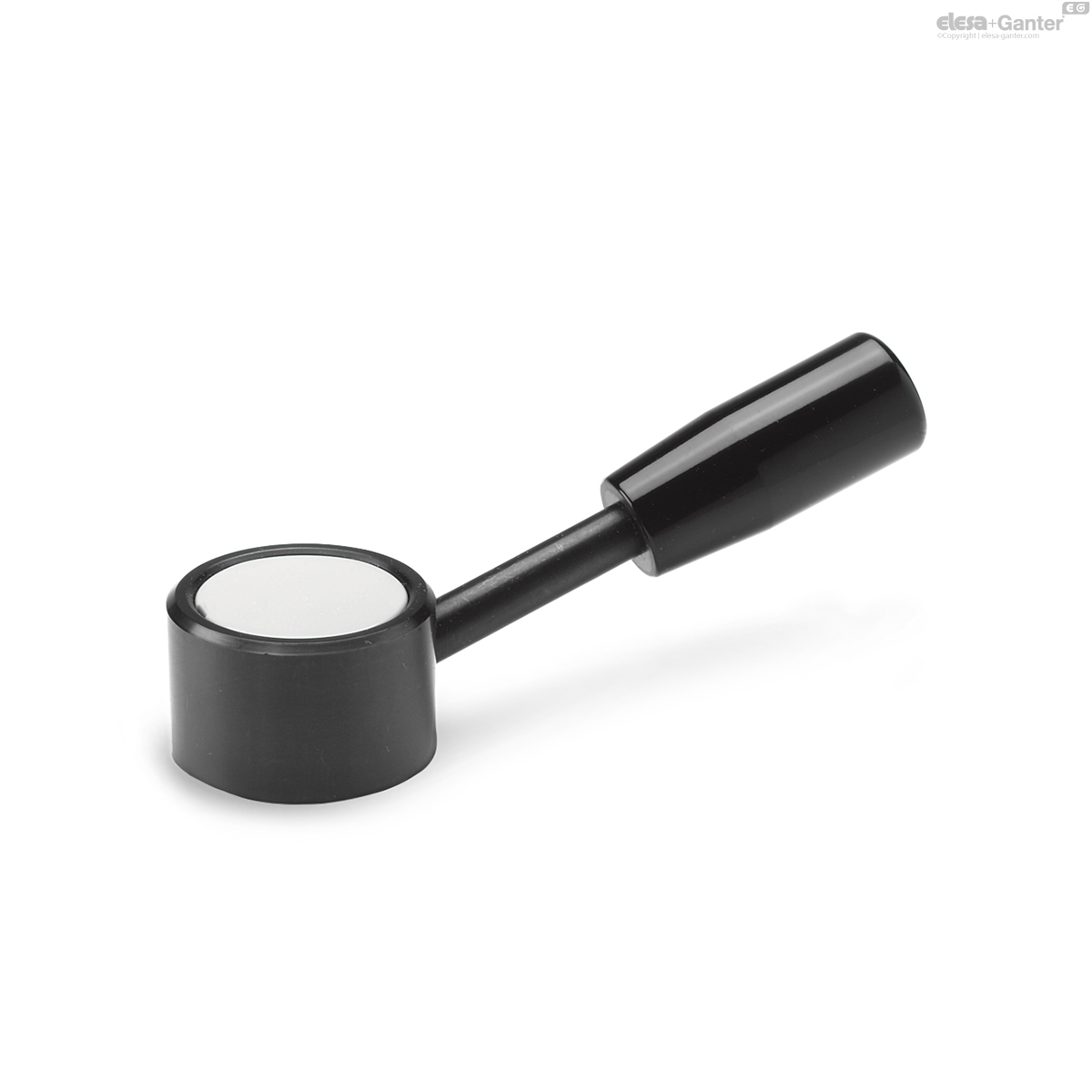

Cover plain

Steel

  • RoHS
pdf Other documents
Cover plain
Cover plain
Cover plain
GN 750-N
Cover plain
Cover with indicator point
GN 750-M
Cover with indicator point

GN 750-N

Catalogue

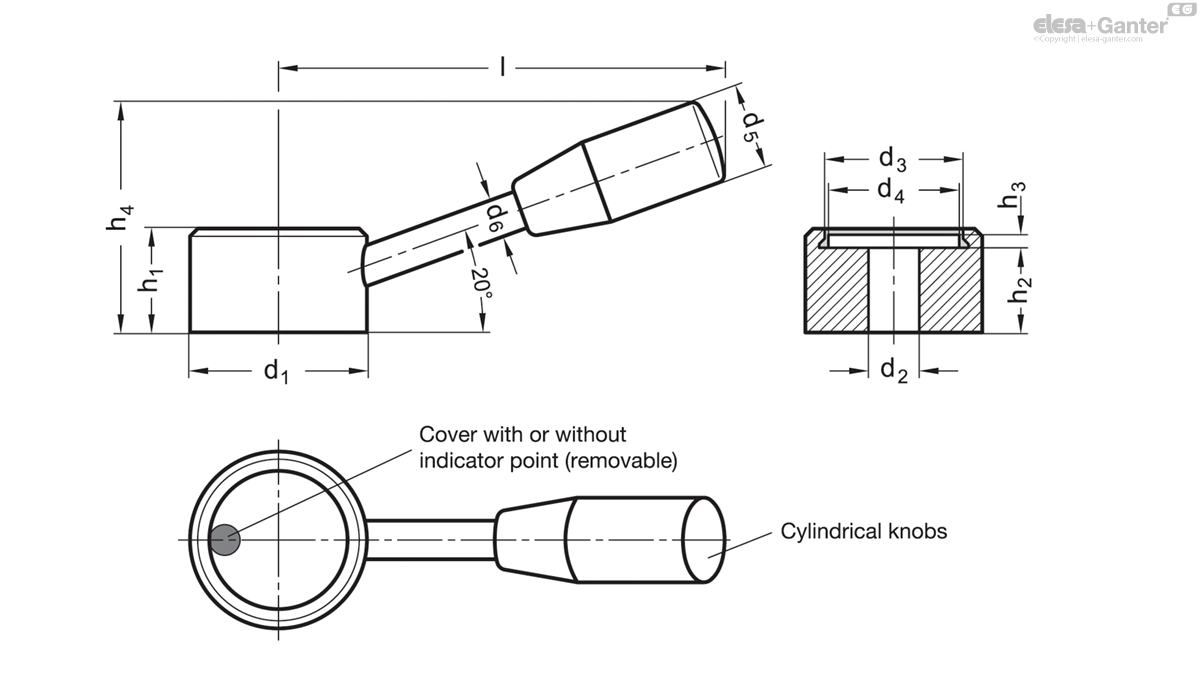

d1
d2 Bore H7 Square H11
d3
d4
d5
d6
h1
h2
h3
h4 ≈
Length l
weight
32
10
25
23
18
8
21
15
4.2
43
84
123
32
10
25
23
18
8
21
15
4.2
43
84
121
32
10
25
23
18
8
21
15
4.2
43
84
116
40
10
32
30
21
9
25
19
4
54
106
239
40
10
32
30
21
9
25
19
4
54
106
236
40
10
32
30
21
9
25
19
4
54
106
232
40
12
32
30
21
9
25
19
4
54
106
232
40
12
32
30
21
9
25
19
4
54
106
229
40
12
32
30
21
9
25
19
4
54
106
230
50
14
40
37.5
23
11
28
22
3.8
63
130
412
50
14
40
37.5
23
11
28
22
3.8
63
130
408
50
14
40
37.5
23
11
28
22
3.8
63
130
412
50
16
40
37.5
23
11
28
22
3.8
63
130
406
50
16
40
37.5
23
11
28
22
3.8
63
130
402
50
16
40
37.5
23
11
28
22
3.8
63
130
403

Bore code

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9
  • Version V: With square DIN 79

Types

  • Type M: Cover with indicator point
  • Type N: Cover plain

Hub / Shaft

Steel

Blackened

Cover

Plastic, polyamid (PA)

Light gray

Cylindrical knob I.280

Plastic, phenolic resin (PF)

Black, shiny finish

The cover of the control hubs GN 750 conceals fastening elements (see installation examples) as well as protruding and receding shafts. It is also suitable for printing characters and symbols.

During installation, the cover is pressed in by hand. For removal, it can be lifted off at the recess using a screwdriver.

  • Control lever versions of the assembly examples

Control levers GN 750 with spring plunger GN 614 , mounted with a cross pin. The arrangement of the spring plunger facilitates simple installation; if desired the detent cone can be drilled out from the shifting hub before the plunger is fitted. The recessed shaft and the bore for the spring plunger are hidden by the cover.

Control levers GN 750 with hub keyway / parallel key, mounted axially by countersunk washer GN 184 , with an annular groove for attaching pins to limit the angle of rotation.



Related products
Black-oxide steel boss, cap in the Ergostyle colours

ELC.

Control levers arranged for clicking operation, technopolymer
Control lever

ELCR.

Control lever arranged for clicking operation, technopolymer
Without keyway, without clamping

GN 210-B

Gear Levers Zinc Die Casting
Without keyway

GN 211-B

Control Levers Steel
Steel

GN 212-ST

Tension Levers Steel / Stainless Steel
Indexing Levers

GN 215

Indexing Levers Steel
Without keyway

GN 223-B

Control Levers Steel
Neutral

GN 723.4-N

Control Knobs Aluminum
With arrow

GN 726.2-A

Control Knobs Aluminum, with Scale Ring
With black-oxide steel boss, plain hole

LBR-A

Control levers arranged for clicking operation, technopolymer
Diamond cut knurled control knobs

MBT+I

Diamond cut knurled control knobs with revolving handle, technopolymer
