GN 711.2-WRulers

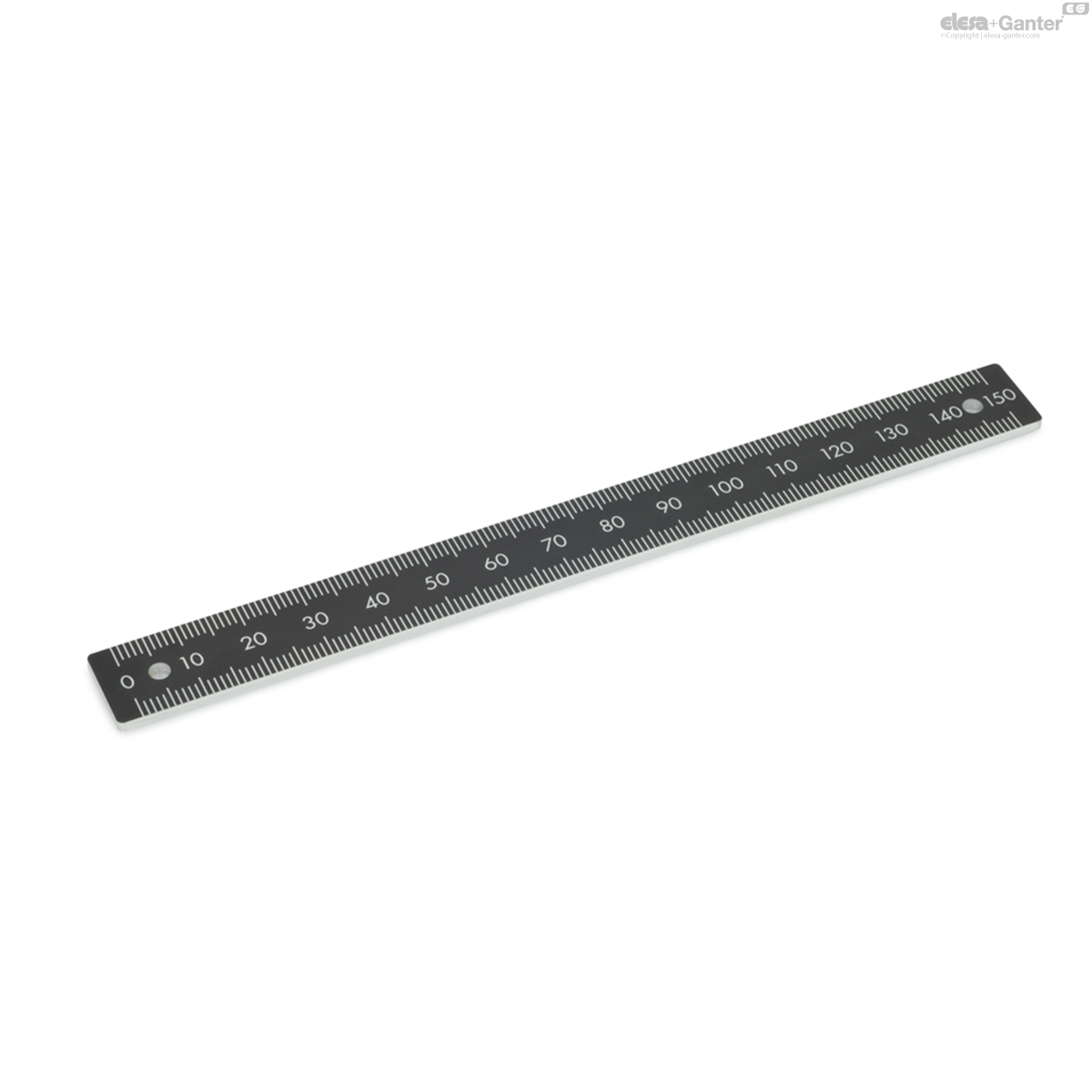

Figures horizontally arranged (figure sequences L, M, R)

Aluminum, with Mounting Holes

Technical datasheet

Figures horizontally arranged (figure sequences L, M, R)

GN 711.2-W

Figures horizontally arranged (figure sequences L, M, R)

GN 711.2-S

Figures vertically arranged (figure sequences U, M, O)

GN 711.2-W

Reset

Catalogue	Length l Scale	Number ob bores	a₁ ±0.1	a₂ ±0.1	a₃ ±0.1	a₄ ±0.1	a₅ ±0.1	a₆ ±0.1	a₇ ±0.1

GN 711.2-AL-50-W-R-1	50	2	4	-	-	-	-	-	-	8
GN 711.2-AL-100-W-R-1	100	2	9	-	-	-	-	-	-	9
GN 711.2-AL-150-W-R-1	150	2	4	-	-	-	-	-	-	12
GN 711.2-AL-200-W-R-1	200	3	9	99	-	-	-	-	-	15
GN 711.2-AL-300-W-R-1	300	3	9	149	-	-	-	-	-	26
GN 711.2-AL-400-W-R-1	400	4	9	139	269	-	-	-	-	30
GN 711.2-AL-500-W-R-1	500	4	9	169	339	-	-	-	-	40
GN 711.2-AL-750-W-R-1	750*	8	4	129	249	369	389	509	629	58
GN 711.2-AL-1000-W-R-1	1000*	8	9	169	329	499	519	679	839	81

* These lengths consist of 2 parts.

Types

Type W: Figures horizontally arranged (figure sequences L, M, R)
Type S: Figures vertically arranged (figure sequences U, M, O)

Identification no.

No. 1: With mounting holes Ø 3.3

Aluminum AL

Anodized, natural color
Black imprint
Numbers and scale etched, i.e. aluminum colored
Imprint resistant to weak acids and lye solutions, and against solvents in the event of brief contact

The position of linear actuator connectors can be easily read from GN 711.2 rulers. The black background creates a high contrast to the natural-colored numbers and scales, and prevents glare.

The orientation of the dimensioning of the fastening holes depends on the sequence of the numbers and is shown in the drawing.
