Technical datasheet
GN 706.4-STSemi-Split Shaft Collars
Steel
Steel / Aluminum / Stainless Steel, with Adjustable Hand Lever
|
Catalogue
|

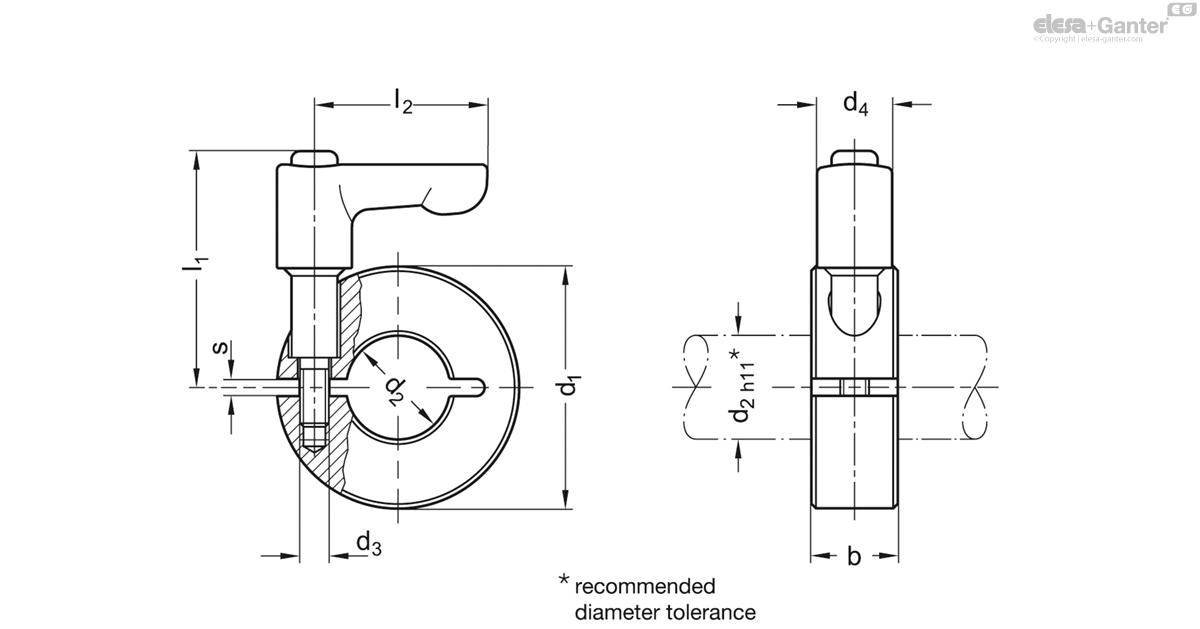

d1
|
d2 H10
|
b ±0.2
|
d3
|
d4
|
l1
|
l2
|
s
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 706.4-16-B4-ST
|
16
|
B 4
|
9
|
M 3
|
10.5
|
26.5
|
22
|
2.1
|
24
|
|
GN 706.4-16-B5-ST
|
16
|
B 5
|
9
|
M 3
|
10.5
|
26.5
|
22
|
2.1
|
23
|
|
GN 706.4-20-B6-ST
|
20
|
B 6
|
9
|
M 3
|
10.5
|
29.5
|
22
|
2.1
|
30
|
|
GN 706.4-22-B8-ST
|
22
|
B 8
|
9
|
M 3
|
10.5
|
29.5
|
22
|
2.1
|
32
|
|
GN 706.4-26-B10-ST
|
26
|
B 10
|
11
|
M 4
|
10.5
|
37
|
30
|
2.1
|
46
|
|
GN 706.4-30-B12-ST
|
30
|
B 12
|
11
|
M 4
|
13
|
31
|
22
|
2.1
|
69
|
|
GN 706.4-32-B14-ST
|
32
|
B 14
|
11
|
M 4
|
13
|
37
|
30
|
2.1
|
70
|
|
GN 706.4-36-B15-ST
|
36
|
B 15
|
13
|
M 5
|
13
|
38.5
|
30
|
2.1
|
112
|
|
GN 706.4-36-B16-ST
|
36
|
B 16
|
13
|
M 5
|
13
|
38.5
|
30
|
2.1
|
71
|
|
GN 706.4-42-B18-ST
|
42
|
B 18
|
15
|
M 5
|
13
|
41
|
30
|
3
|
120
|
|
GN 706.4-42-B20-ST
|
42
|
B 20
|
15
|
M 5
|
13
|
41
|
30
|
3
|
118
|
|
GN 706.4-48-B22-ST
|
48
|
B 22
|
15
|
M 5
|
13
|
43
|
45
|
3
|
180
|
|
GN 706.4-48-B25-ST
|
48
|
B 25
|
15
|
M 5
|
13
|
43
|
45
|
3
|
141
|
|
GN 706.4-55-B28-ST
|
55
|
B 28
|
15
|
M 6
|
13
|
45
|
45
|
3
|
200
|
|
GN 706.4-55-B30-ST
|
55
|
B 30
|
15
|
M 6
|
13
|
45
|
45
|
3
|
198
|
|
GN 706.4-60-B32-ST
|
60
|
B 32
|
15
|
M 6
|
13
|
46.5
|
45
|
4
|
240
|
|
GN 706.4-60-B35-ST
|
60
|
B 35
|
15
|
M 6
|
13
|
46.5
|
45
|
4
|
220
|
|
GN 706.4-65-B40-ST
|
65
|
B 40
|
15
|
M 6
|
13
|
47.5
|
45
|
4
|
240
|
null

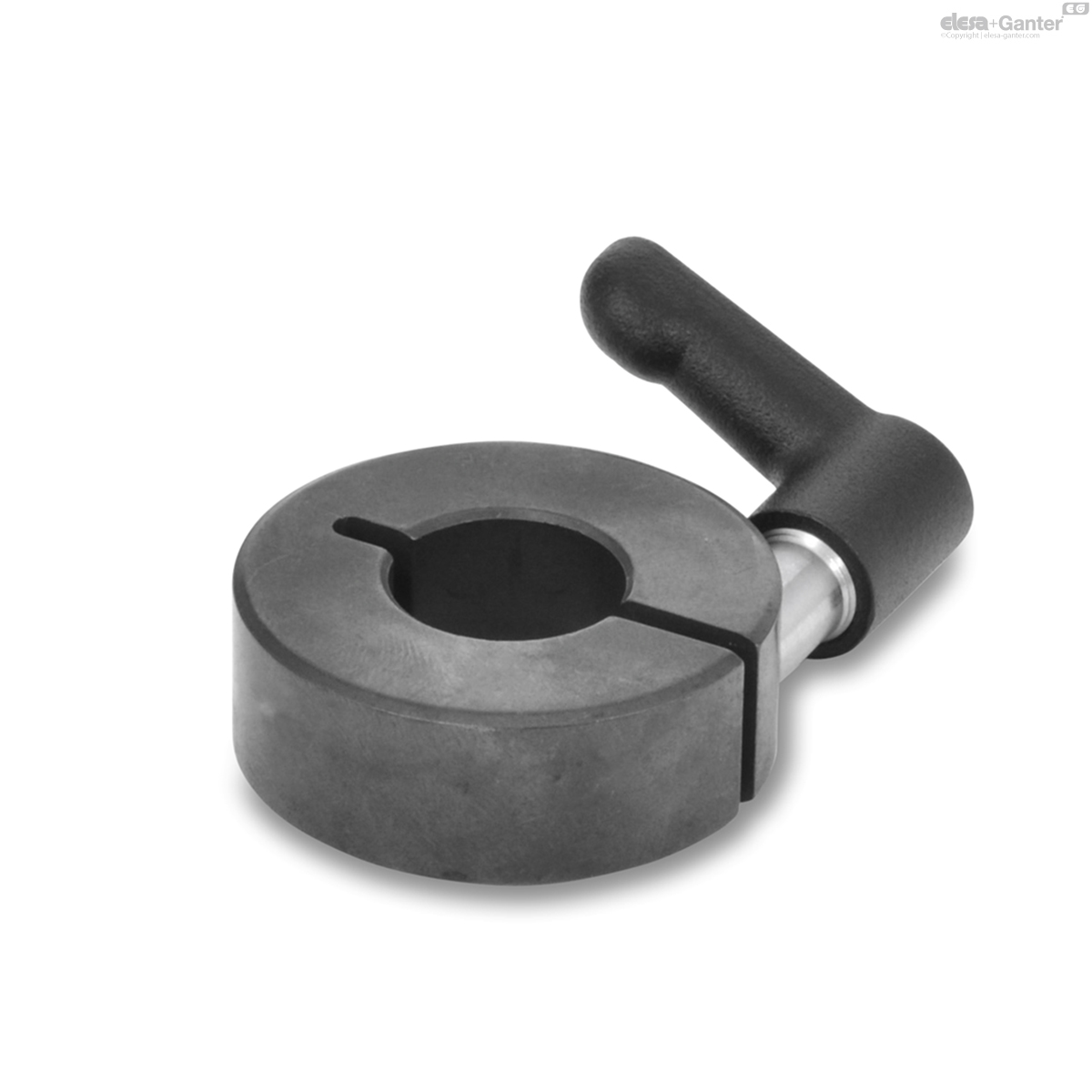

Shaft Collar
- Steel ST
- Sintered
- Black oxidized with vapor
- Aluminum AL
- Turned, tumbled
- Stainless steel AISI 316L NI
- Sintered
Adjustable hand lever
Zinc die casting
- Powder coated
- Black RAL 9005, textured finish
- Screw insert / Retaining screw
- Stainless steel AISI 303
Semi-split shaft collars GN 706.4 can safely and simply be clamped by reducing the slot height by using an adjustable hand lever and thus they act, for instance, like an end stop.
This version offers great advantages especially for applications that demand new positions of the shaft collar.
The thread d3 for sizes d1 = 32 and 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as blind hole.
- GN 7062.30 Damping Washers
