Technical datasheet

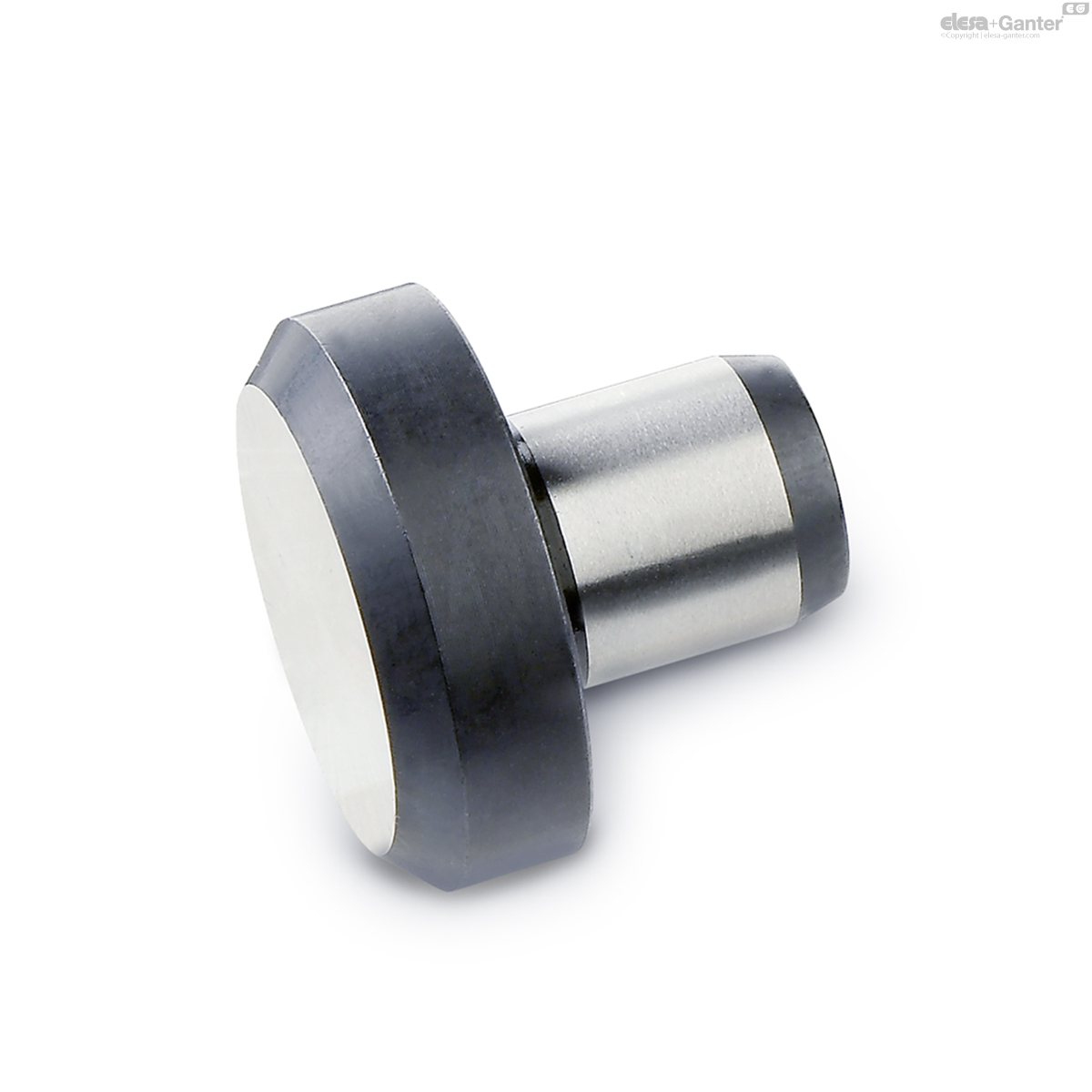

GN 6321.1Headed dowels
Headed dowels
GN 6321.1
|
Catalogue
|

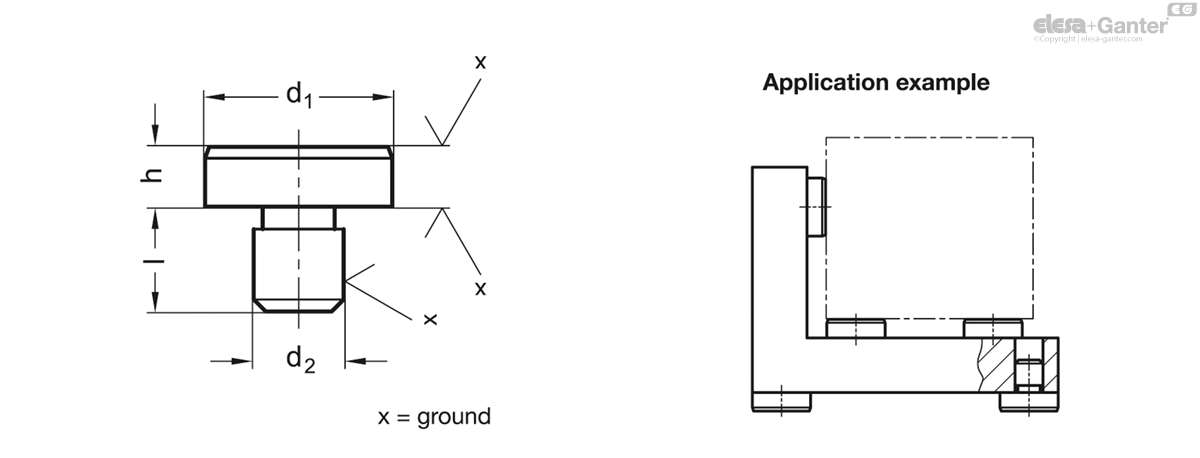

d1
|
d2 n6
|
h h9
|
l
|
|
d p6/h6
|
|
|---|---|---|---|---|---|---|---|
|
6
|
4
|
2.5
|
6.5
|
2
|
6
| ||
|
6
|
4
|
4.5
|
8.5
|
2
|
6
| ||
|
6
|
4
|
5
|
6
|
2
|
6
| ||
|
10
|
6
|
4.5
|
8.5
|
5
|
10
| ||
|
10
|
6
|
8
|
8
|
6
|
10
| ||
|
16
|
8
|
5
|
10
|
11
|
16
| ||
|
16
|
8
|
13
|
10
|
23
|
16
| ||
|
20
|
10
|
6
|
12
|
21
|
20
| ||
|
20
|
10
|
12
|
12
|
35
|
20
| ||
|
25
|
12
|
8
|
14
|
41
|
25
| ||
|
25
|
12
|
20
|
14
|
87
|
25
| ||
|
25
|
12
|
30
|
14
|
124
|
25
| ||
|
30
|
16
|
25
|
20
|
164
|
30
| ||
|
30
|
16
|
40
|
20
|
248
|
30
| ||
|
30
|
16
|
50
|
20
|
305
|
30
| ||
|
30
|
16
|
65
|
20
|
385
|
30
| ||
|
40
|
20
|
13
|
20
|
171
|
40
| ||
|
40
|
20
|
32
|
20
|
357
|
40
|
