Technical datasheet

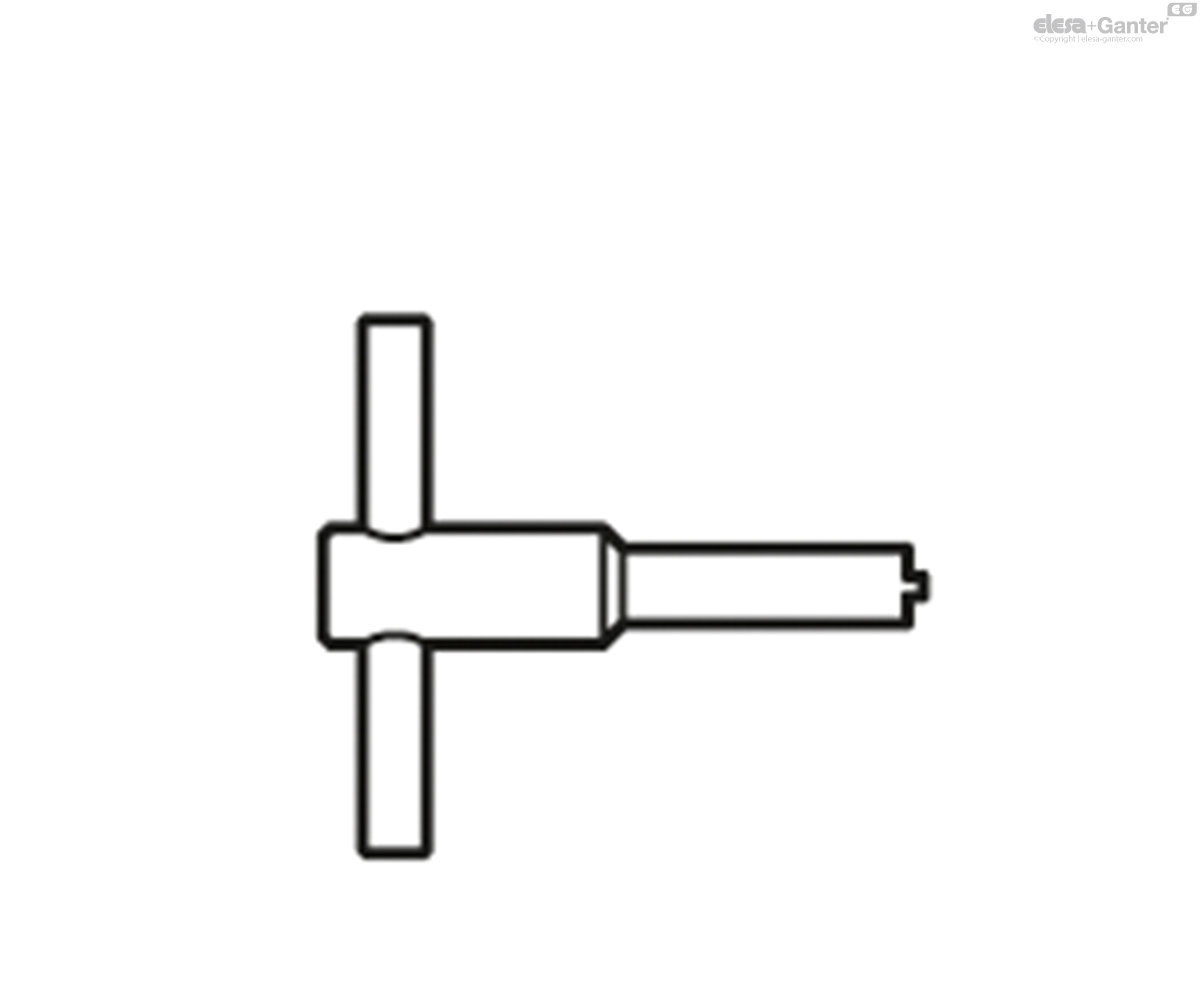

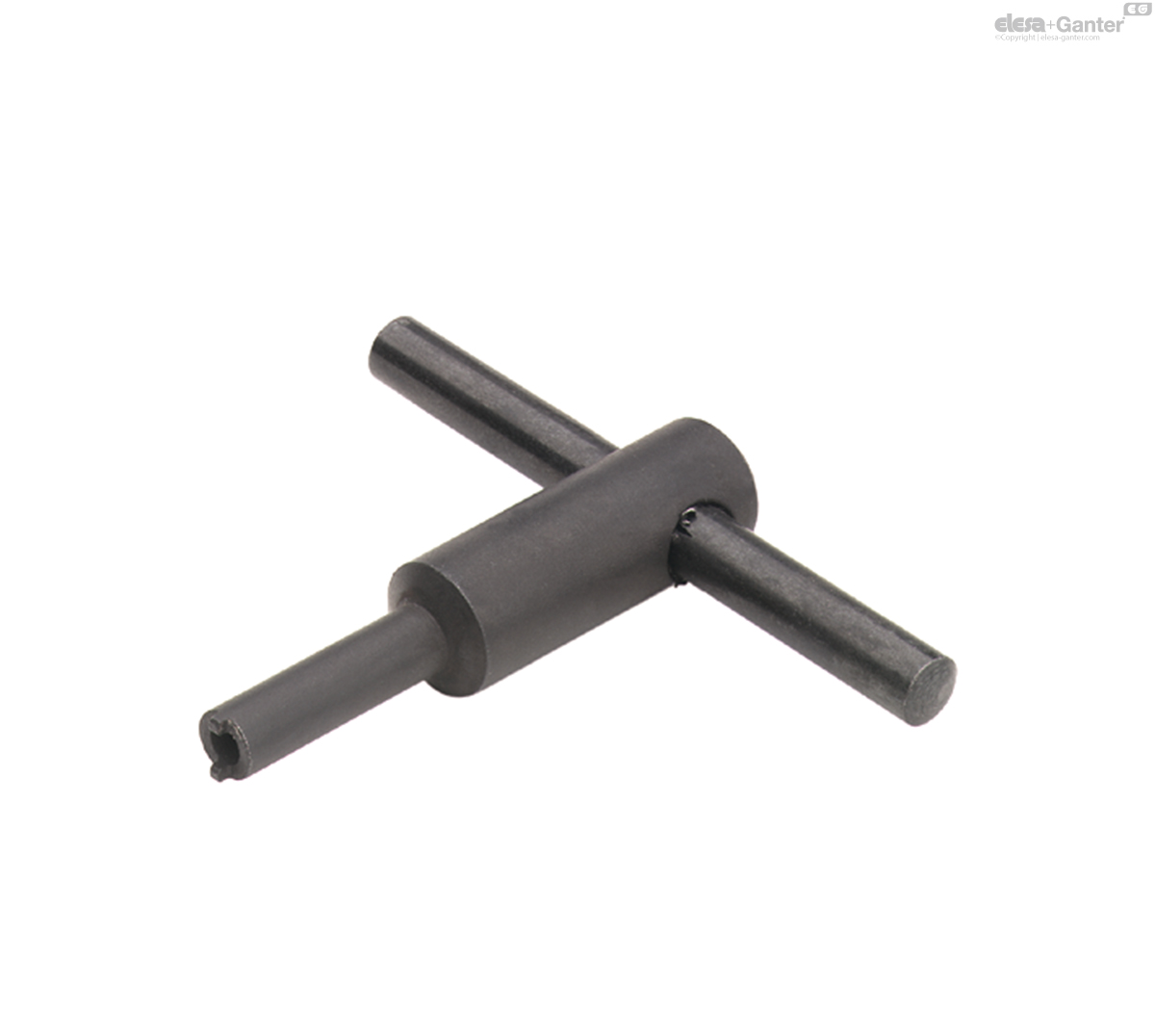

GN 611.5Screwdrivers
Screwdrivers
for Spring Plungers GN 611 / GN 616 / GN 616.1
GN 611.5
|
Catalogue
|
d1 Thread-Ø of GN 611 / GN 616 / GN 616.1
|
|
|
|---|---|---|---|
|
M 3
|
17
| ||
|
M 4
|
15
| ||
|
M 5
|
21
| ||
|
M 6
|
30
| ||
|
M 8
|
40
| ||
|
M 10
|
90
| ||
|
M 12
|
91
| ||
|
M 16
|
114
| ||
|
M 20
|
163
| ||
|
M 24
|
260
|
Steel
