GN 609.5Distance Bushings

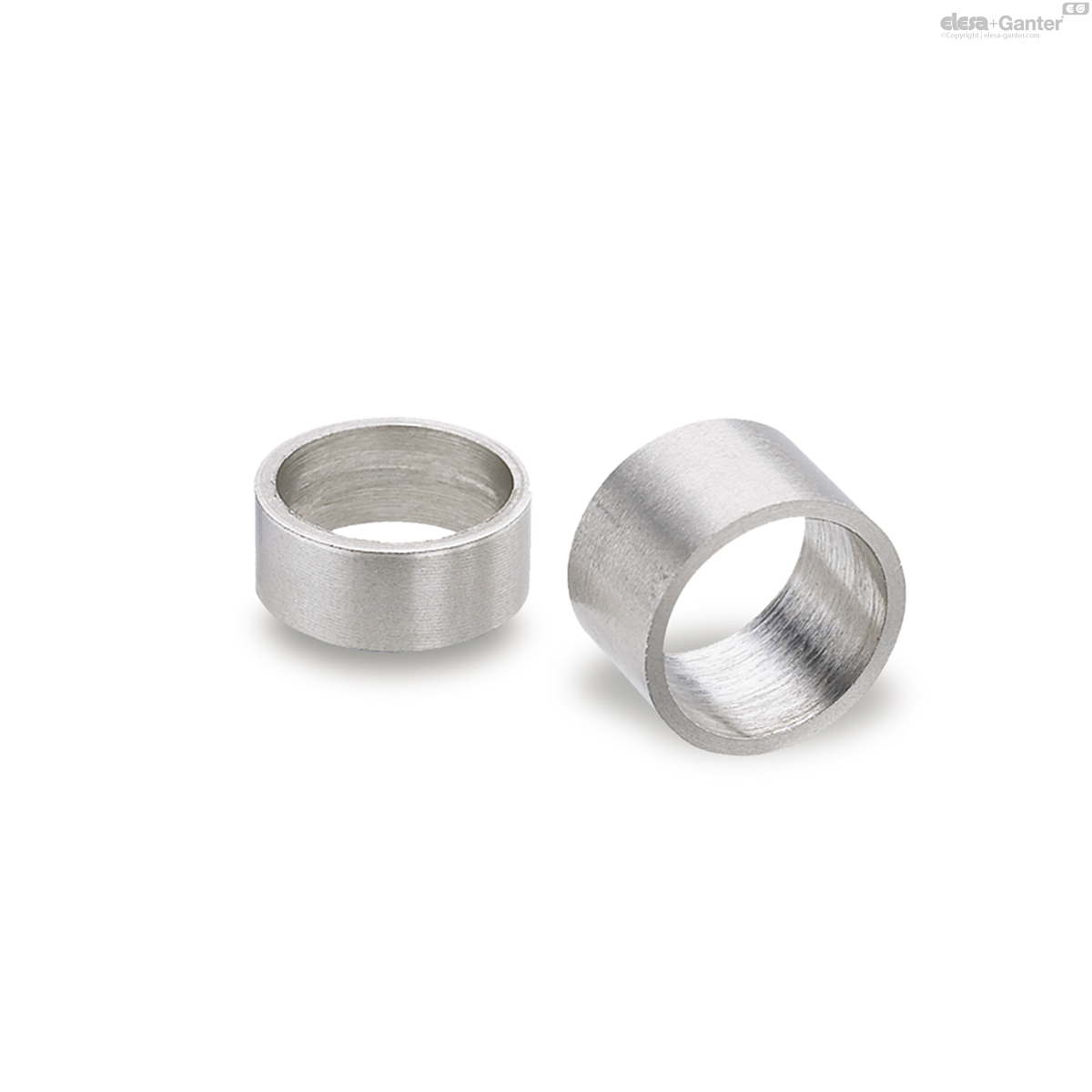

Distance Bushings
Stainless Steel, for Mounting Indexing Plungers / Cam Action Indexing Plungers
GN 609.5
|
Catalogue
|
d1 H12
|
d2 -0.1
|
l ±0.1
|
For thread Ø
|
For indexing plungers
|
|
|
|---|---|---|---|---|---|---|---|
|
6
|
7
|
2
|
M 6
|
GN 717
|
1
| ||
|
6
|
7
|
4
|
M 6
|
GN 717
|
1
| ||
|
6
|
7
|
6
|
M 6
|
GN 717
|
1
| ||
|
6
|
7
|
8
|
M 6
|
GN 717
|
1
| ||
|
8
|
10
|
2
|
M 8
|
GN 717 / GN 817 / GN 817.2 / GN 822
|
1
| ||
|
8
|
10
|
4
|
M 8
|
GN 717 / GN 817 / GN 817.2 / GN 822
|
1
| ||
|
8
|
10
|
6
|
M 8
|
GN 717 / GN 817 / GN 817.2 / GN 822
|
2
| ||
|
8
|
10
|
8
|
M 8
|
GN 717 / GN 817 / GN 817.2 / GN 822
|
2
| ||
|
8
|
10
|
10
|
M 8
|
GN 717 / GN 817 / GN 817.2 / GN 822
|
3
| ||
|
10
|
12
|
2
|
M 10
|
GN 617 .1 .2 / GN 717 / GN 817 .2 / GN 822 .1 .6 .7
|
1
| ||
|
10
|
12
|
4
|
M 10
|
GN 617 .1 .2 / GN 717 / GN 817 .2 / GN 822 .1 .6 .7
|
1
| ||
|
10
|
12
|
6
|
M 10
|
GN 617 .1 .2 / GN 717 / GN 817 .2 / GN 822 .1 .6 .7
|
2
| ||
|
10
|
12
|
8
|
M 10
|
GN 617 .1 .2 / GN 717 / GN 817 .2 / GN 822 .1 .6 .7
|
2
| ||
|
10
|
12
|
10
|
M 10
|
GN 617 .1 .2 / GN 717 / GN 817 .2 / GN 822 .1 .6 .7
|
3
| ||
|
10
|
12
|
12
|
M 10
|
GN 617 .1 .2 / GN 717 / GN 817 .2 / GN 822 .1 .6 .7
|
3
| ||
|
12
|
14
|
2
|
M 12
|
GN 617 .1 .2 / GN 717 / PMT.200 / GN 816 .1 / GN 817 .2 .4.8 / GN 514 / GN 612.8 / GN 822 .1 .6 .7
|
1
| ||
|
12
|
14
|
4
|
M 12
|
GN 617 .1 .2 / GN 717 / PMT.200 / GN 816 .1 / GN 817 .2 .4.8 / GN 514 / GN 612.8 / GN 822 .1 .6 .7
|
1
| ||
|
12
|
14
|
6
|
M 12
|
GN 617 .1 .2 / GN 717 / PMT.200 / GN 816 .1 / GN 817 .2 .4.8 / GN 514 / GN 612.8 / GN 822 .1 .6 .7
|
2
| ||
|
12
|
14
|
8
|
M 12
|
GN 617 .1 .2 / GN 717 / PMT.200 / GN 816 .1 / GN 817 .2 .4.8 / GN 514 / GN 612.8 / GN 822 .1 .6 .7
|
2
| ||
|
12
|
14
|
10
|
M 12
|
GN 617 .1 .2 / GN 717 / PMT.200 / GN 816 .1 / GN 817 .2 .4.8 / GN 514 / GN 612.8 / GN 822 .1 .6 .7
|
2
| ||
|
12
|
14
|
12
|
M 12
|
GN 617 .1 .2 / GN 717 / PMT.200 / GN 816 .1 / GN 817 .2 .4.8 / GN 514 / GN 612.8 / GN 822 .1 .6 .7
|
4
| ||
|
12
|
14
|
14
|
M 12
|
GN 617 .1 .2 / GN 717 / PMT.200 / GN 816 .1 / GN 817 .2 .4.8 / GN 514 / GN 612.8 / GN 822 .1 .6 .7
|
4
| ||
|
12
|
17
|
2
|
M 12
|
GN 414 .1 / GN 607 .1
|
2
| ||
|
12
|
17
|
4
|
M 12
|
GN 414 .1 / GN 607 .1
|
3
| ||
|
12
|
17
|
5
|
M 12
|
GN 414 .1 / GN 607 .1
|
4
| ||
|
12
|
17
|
6
|
M 12
|
GN 414 .1 / GN 607 .1
|
6
| ||
|
12
|
17
|
8
|
M 12
|
GN 414 .1 / GN 607 .1
|
7
| ||
|
12
|
17
|
10
|
M 12
|
GN 414 .1 / GN 607 .1
|
8
| ||
|
12
|
17
|
12
|
M 12
|
GN 414 .1 / GN 607 .1
|
10
| ||
|
16
|
17
|
2
|
M 16
|
GN 514 / GN 717 / GN 816 .1 / GN 817 .2 .4 .6 .8 / GN 822 .1 .6 .7.8
|
1
| ||
|
16
|
17
|
4
|
M 16
|
GN 514 / GN 717 / GN 816 .1 / GN 817 .2 .4 .6 .8 / GN 822 .1 .6 .7.8
|
1
| ||
|
16
|
17
|
6
|
M 16
|
GN 514 / GN 717 / GN 816 .1 / GN 817 .2 .4 .6 .8 / GN 822 .1 .6 .7.8
|
1
| ||
|
16
|
17
|
8
|
M 16
|
GN 514 / GN 717 / GN 816 .1 / GN 817 .2 .4 .6 .8 / GN 822 .1 .6 .7.8
|
1
| ||
|
16
|
17
|
10
|
M 16
|
GN 514 / GN 717 / GN 816 .1 / GN 817 .2 .4 .6 .8 / GN 822 .1 .6 .7.8
|
2
| ||
|
16
|
17
|
12
|
M 16
|
GN 514 / GN 717 / GN 816 .1 / GN 817 .2 .4 .6 .8 / GN 822 .1 .6 .7.8
|
2
| ||
|
16
|
19
|
2
|
M 16
|
GN 414 .1 / GN 607 .1 / GN 612.8 / PMT.200 / GN 617 .1 .2 / GN 7336.8
|
1
| ||
|
16
|
19
|
4
|
M 16
|
GN 414 .1 / GN 607 .1 / GN 612.8 / PMT.200 / GN 617 .1 .2 / GN 7336.8
|
2
| ||
|
16
|
19
|
6
|
M 16
|
GN 414 .1 / GN 607 .1 / GN 612.8 / PMT.200 / GN 617 .1 .2 / GN 7336.8
|
4
| ||
|
16
|
19
|
8
|
M 16
|
GN 414 .1 / GN 607 .1 / GN 612.8 / PMT.200 / GN 617 .1 .2 / GN 7336.8
|
5
| ||
|
16
|
19
|
10
|
M 16
|
GN 414 .1 / GN 607 .1 / GN 612.8 / PMT.200 / GN 617 .1 .2 / GN 7336.8
|
6
| ||
|
16
|
19
|
12
|
M 16
|
GN 414 .1 / GN 607 .1 / GN 612.8 / PMT.200 / GN 617 .1 .2 / GN 7336.8
|
7
| ||
|
20
|
22
|
6
|
M 20
|
GN 612.8 / GN 617 .1 .2 / GN 817 .2 .4 .6 .8
|
3
| ||
|
20
|
22
|
8
|
M 20
|
GN 612.8 / GN 617 .1 .2 / GN 817 .2 .4 .6 .8
|
4
| ||
|
20
|
22
|
10
|
M 20
|
GN 612.8 / GN 617 .1 .2 / GN 817 .2 .4 .6 .8
|
6
| ||
|
20
|
22
|
12
|
M 20
|
GN 612.8 / GN 617 .1 .2 / GN 817 .2 .4 .6 .8
|
6
| ||
|
20
|
22
|
14
|
M 20
|
GN 612.8 / GN 617 .1 .2 / GN 817 .2 .4 .6 .8
|
7
| ||
|
20
|
22
|
16
|
M 20
|
GN 612.8 / GN 617 .1 .2 / GN 817 .2 .4 .6 .8
|
9
| ||
|
20
|
22
|
18
|
M 20
|
GN 612.8 / GN 617 .1 .2 / GN 817 .2 .4 .6 .8
|
9
|
Stainless steel AISI 303

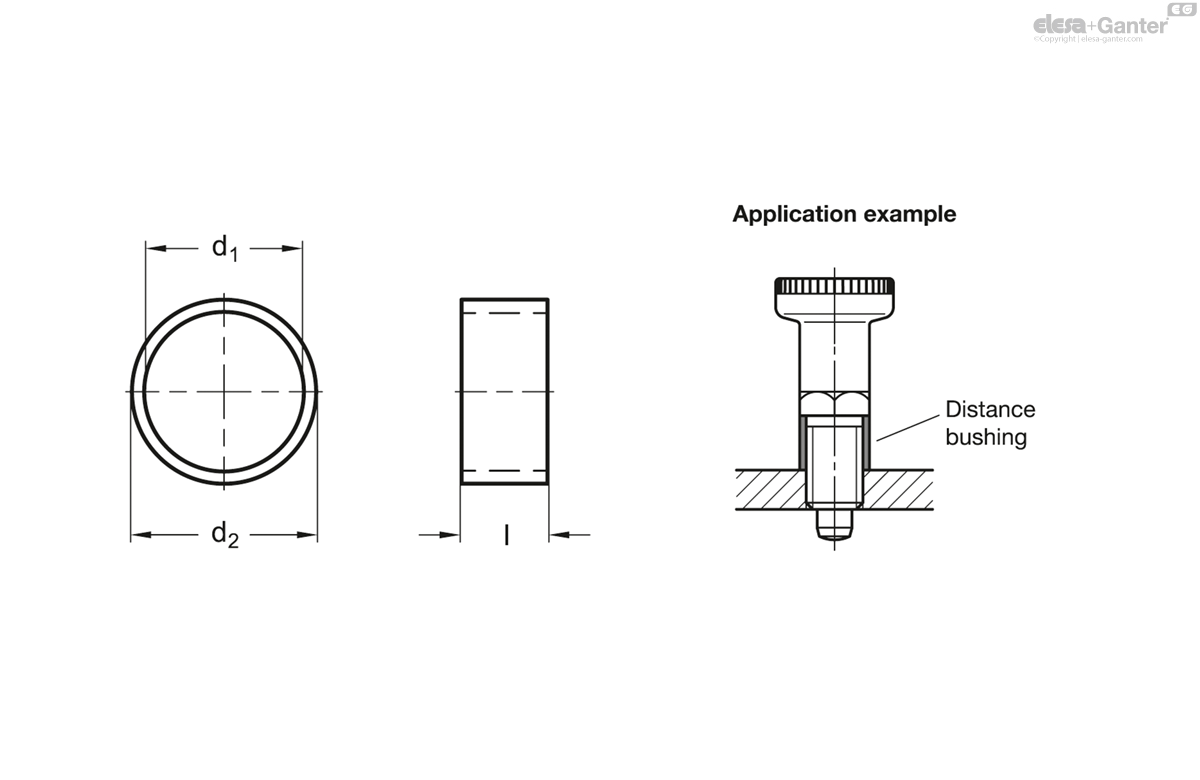

Distance bushings GN 609.5 compensate for the body thread lengths on the indexing plungers and cam action indexing plungers a to allow mounting through walls of varying thickness.
