Technical datasheet

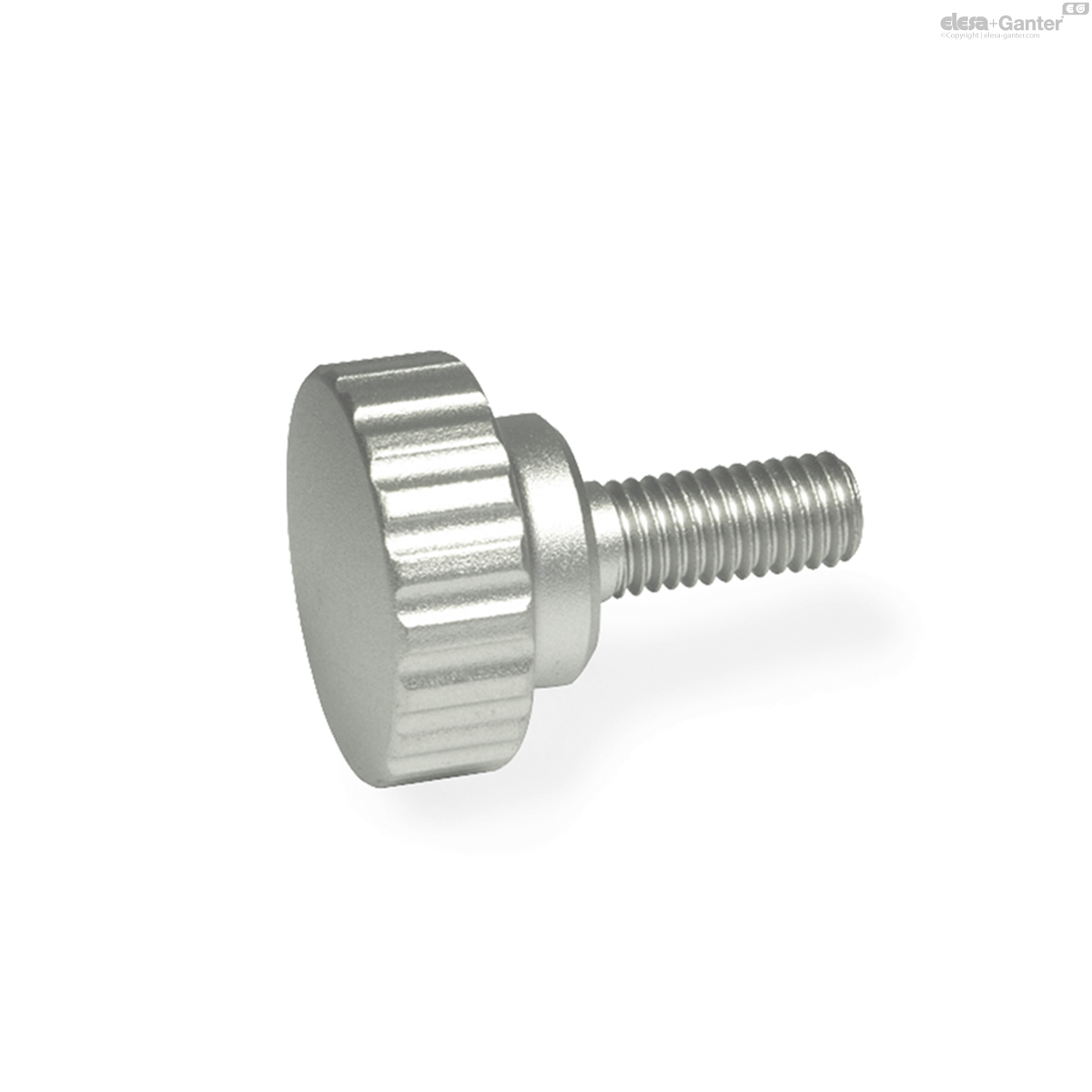

GN 535Stainless Steel-Knurled screws
Knurled Screws
GN 535
|
Catalogue
|

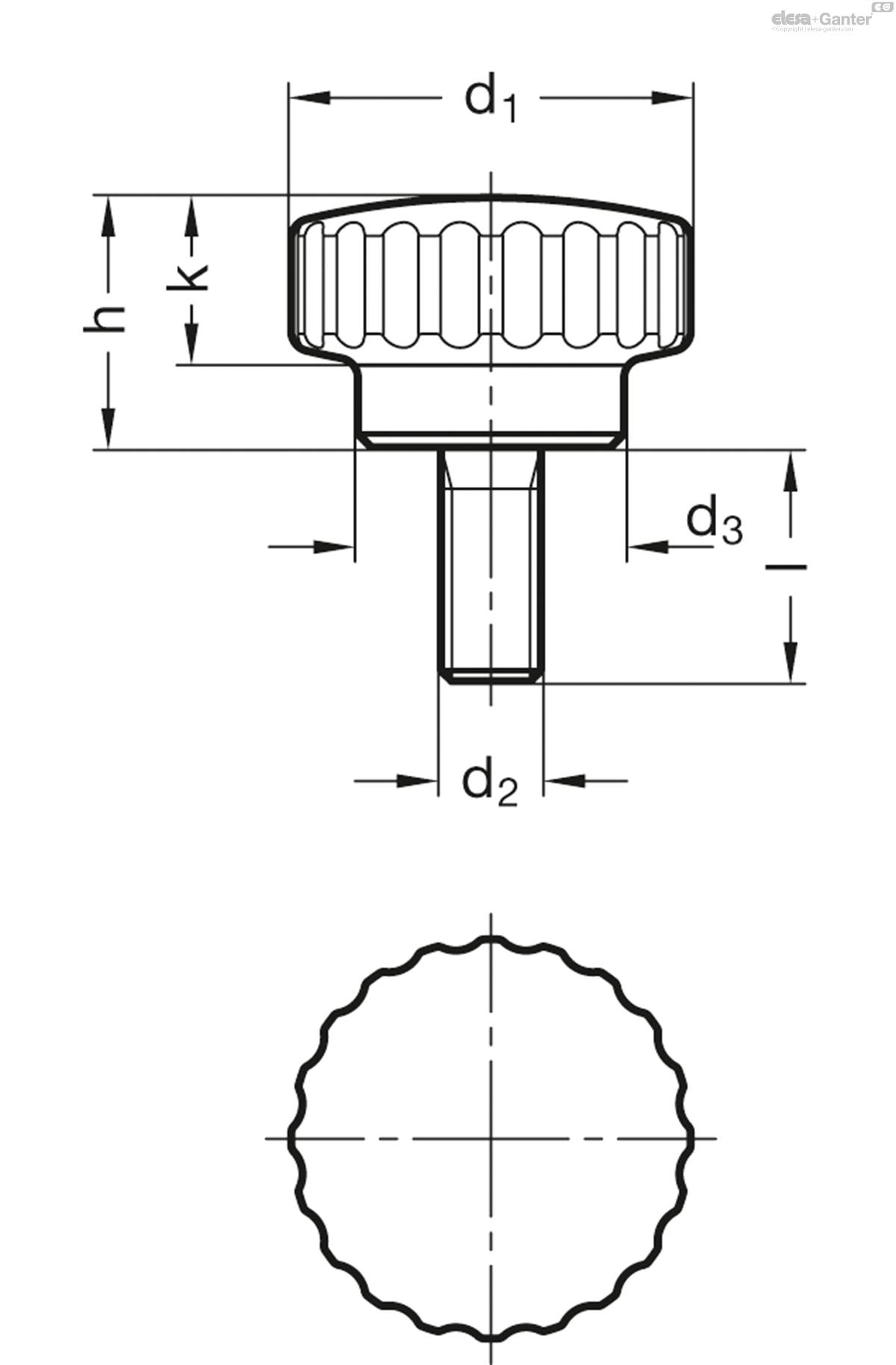

d1
|
d2
|
l
|
d3
|
h
|
k
|
|
|
|---|---|---|---|---|---|---|---|---|
|
20
|
M 5
|
10
|
14
|
13
|
8.5
|
26
| ||
|
20
|
M 5
|
10
|
14
|
13
|
8.5
|
26
| ||
|
20
|
M 5
|
16
|
14
|
13
|
8.5
|
27
| ||
|
20
|
M 5
|
16
|
14
|
13
|
8.5
|
27
| ||
|
24
|
M 6
|
16
|
16
|
15
|
10.5
|
42
| ||
|
24
|
M 6
|
16
|
16
|
15
|
10.5
|
44
| ||
|
24
|
M 6
|
20
|
16
|
15
|
10.5
|
44
| ||
|
24
|
M 6
|
20
|
16
|
15
|
10.5
|
44
| ||
|
24
|
M 6
|
25
|
16
|
15
|
10.5
|
45
| ||
|
24
|
M 6
|
25
|
16
|
15
|
10.5
|
45
| ||
|
28
|
M 8
|
16
|
18
|
17
|
12.5
|
68
| ||
|
28
|
M 8
|
16
|
18
|
17
|
12.5
|
68
| ||
|
28
|
M 8
|
20
|
18
|
17
|
12.5
|
69
| ||
|
28
|
M 8
|
20
|
18
|
17
|
12.5
|
69
| ||
|
28
|
M 8
|
30
|
18
|
17
|
12.5
|
72
| ||
|
28
|
M 8
|
30
|
18
|
17
|
12.5
|
72
|
Stainless Steel AISI 304
- matt shot-blasted MT
- highly polished PL
The knurling of Stainless Steel-Knurled screws GN 535 allows a use in an environment with hygienic requirements.
