GN 436.1-BControl Knobs

Neutral, without arrow or scale

Stainless Steel

Technical datasheet

GN 436.1-B

Neutral, without arrow or scale

GN 436.1-A

With arrow

GN 436.1-S

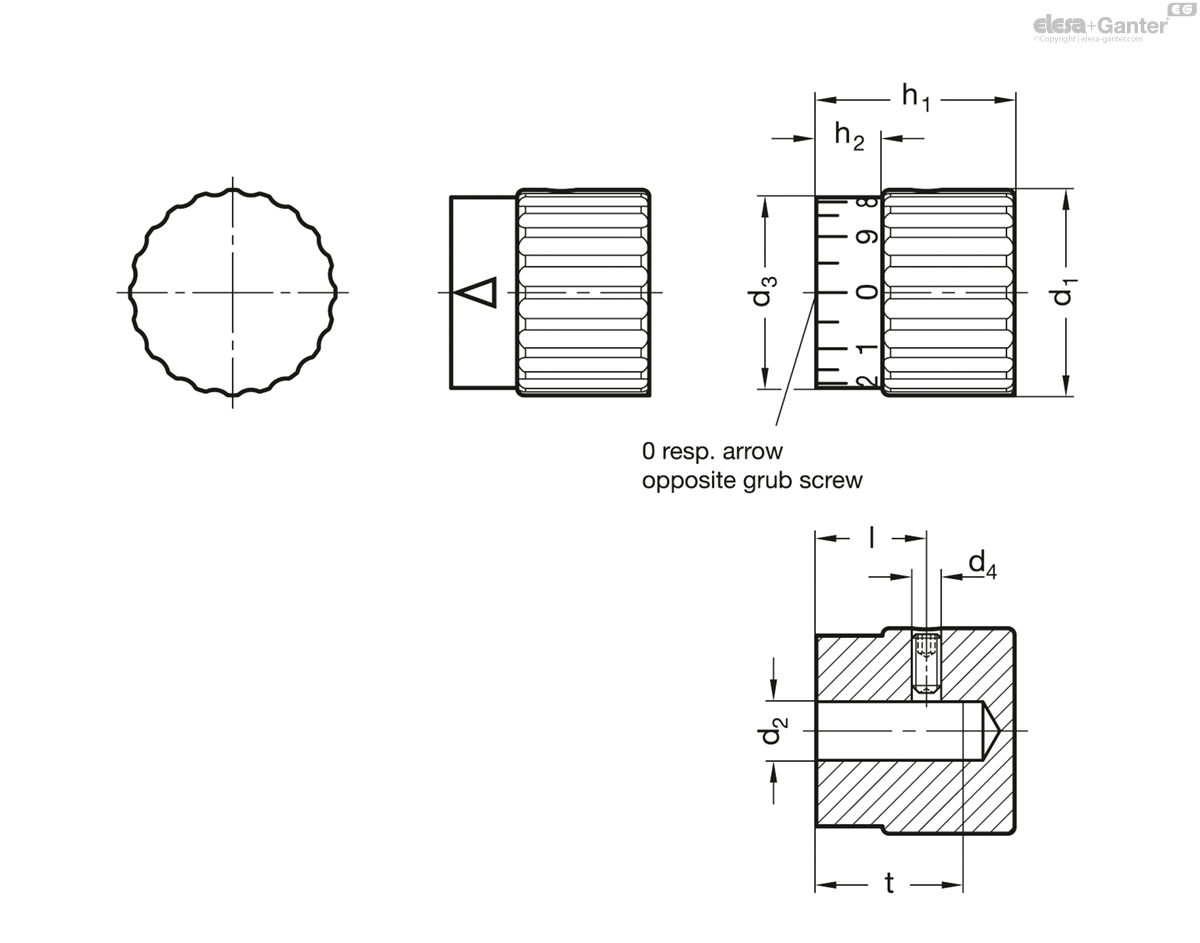

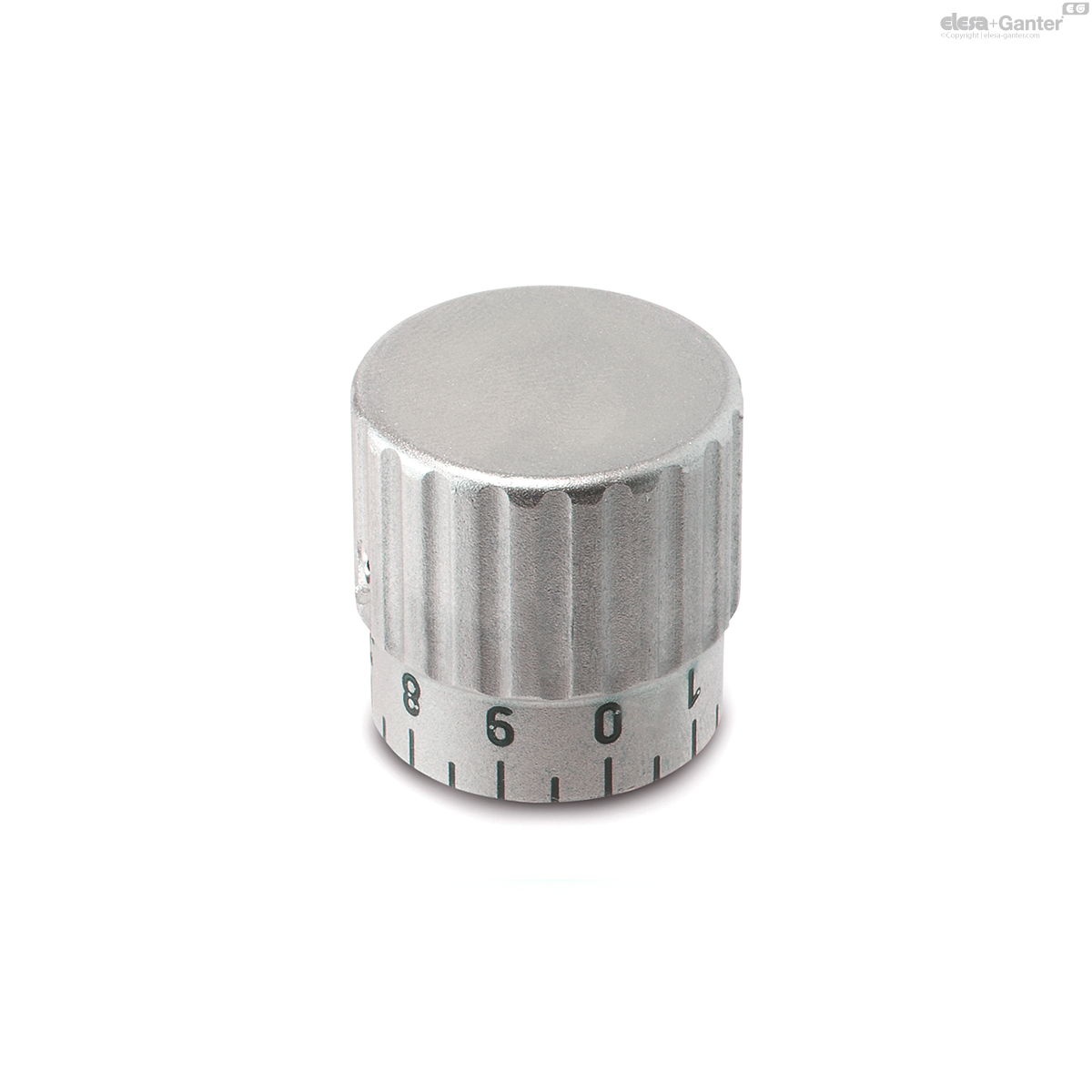

With standard scale 0...9, 20 graduations

GN 436.1-B

Reset

Catalogue	d₁	d₂ H8 Bore	d₃	d₄	h₁	h₂	Length l	t min.

GN 436.1-24-B5-B-MT	24	B 5	22	M 4	24	8	12	18	78
GN 436.1-24-B6-B-MT	24	B 6	22	M 4	24	8	12	18	80
GN 436.1-28-B6-B-MT	28	B 6	26	M 4	27	9	13	20	125
GN 436.1-28-B8-B-MT	28	B 8	26	M 4	27	9	13	20	114

Type

Type A: With arrow
Type B: Neutral, without arrow or scale
Type S: With standard scale 0...9, 20 graduations

Knob

Stainless steel AISI 304

Matte shot-blasted finish MT

Arrow for type A

Laser-engraved

Scale for type S

Laser-engraved

Grub screw DIN 916

Stainless steel

with internal hex and serrated point

Scale and arrow on the control knobs GN 436.1 are indelibly marked and easily legible.

Besides the standard scale (type S) the control knobs can be supplied with any type of graduation.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet 'How to Order Graduations' .
