Technical datasheet

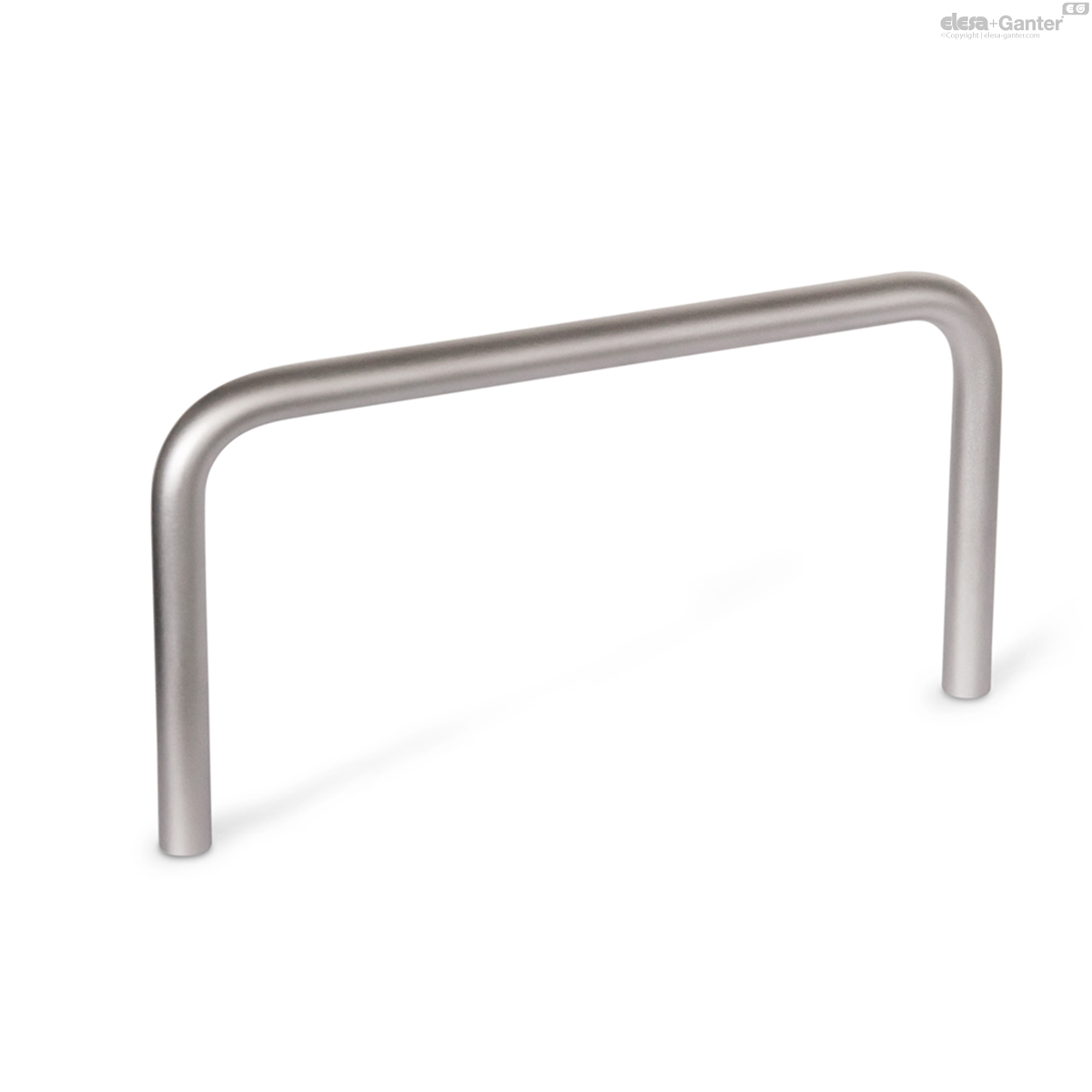

GN 435Cabinet U-Handles
Cabinet U-Handles — GS - Matte
Stainless Steel, Tall Design
GN 435
|
Catalogue
|

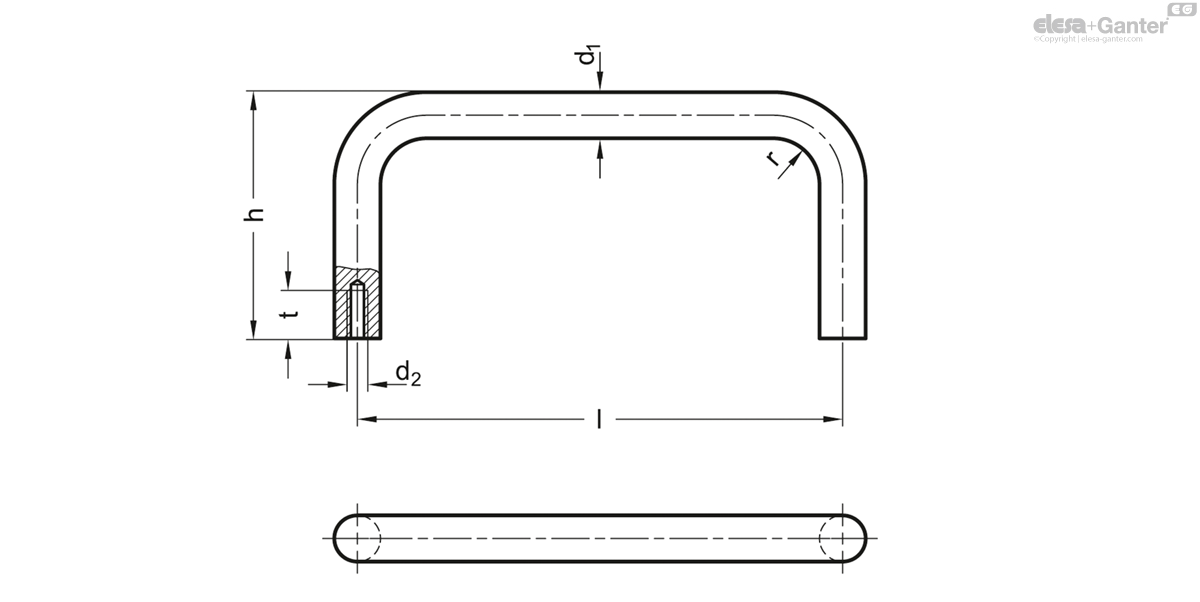

d1
|
Length l ±0.5
|
h
|
d2
|
r
|
t min.
|
|
|
|---|---|---|---|---|---|---|---|---|
|
12
|
125
|
75
|
M 6
|
14
|
12
|
214
| ||
|
12
|
160
|
75
|
M 6
|
14
|
12
|
245
| ||
|
12
|
200
|
75
|
M 6
|
14
|
12
|
281
| ||
|
12
|
125
|
110
|
M 6
|
14
|
12
|
277
| ||
|
12
|
160
|
110
|
M 6
|
14
|
12
|
308
| ||
|
12
|
200
|
110
|
M 6
|
14
|
12
|
344
| ||
|
16
|
160
|
85
|
M 6
|
18
|
12
|
458
| ||
|
16
|
200
|
85
|
M 6
|
18
|
12
|
521
| ||
|
16
|
300
|
85
|
M 6
|
18
|
12
|
680
| ||
|
16
|
160
|
125
|
M 6
|
18
|
12
|
585
| ||
|
16
|
200
|
125
|
M 6
|
18
|
12
|
648
| ||
|
16
|
300
|
125
|
M 6
|
18
|
12
|
807
|
Stainless steel AISI 303 NI
Stainless steel AISI 303 NI
- Matte shot-blasted finish GS
- Powder coated
- Black, RAL 9005, textured finish SW
Cabinet U-handles GN 435, tall design, are made from bent round profiles and are designed for applications requiring more height for gripping. For example, this makes it possible to grab or hold the handle while wearing safety gloves. Some dimensions also satisfy the crane access standard DIN EN 13856.
In addition to serving as a handle, it can also be used as a hose guide, retaining bracket or the like.
- GN 181 Fastening Sets (Mounting from the Operator‘s Side)
- Other dimensions
- Other materials
- Other finishes
