Technical datasheet

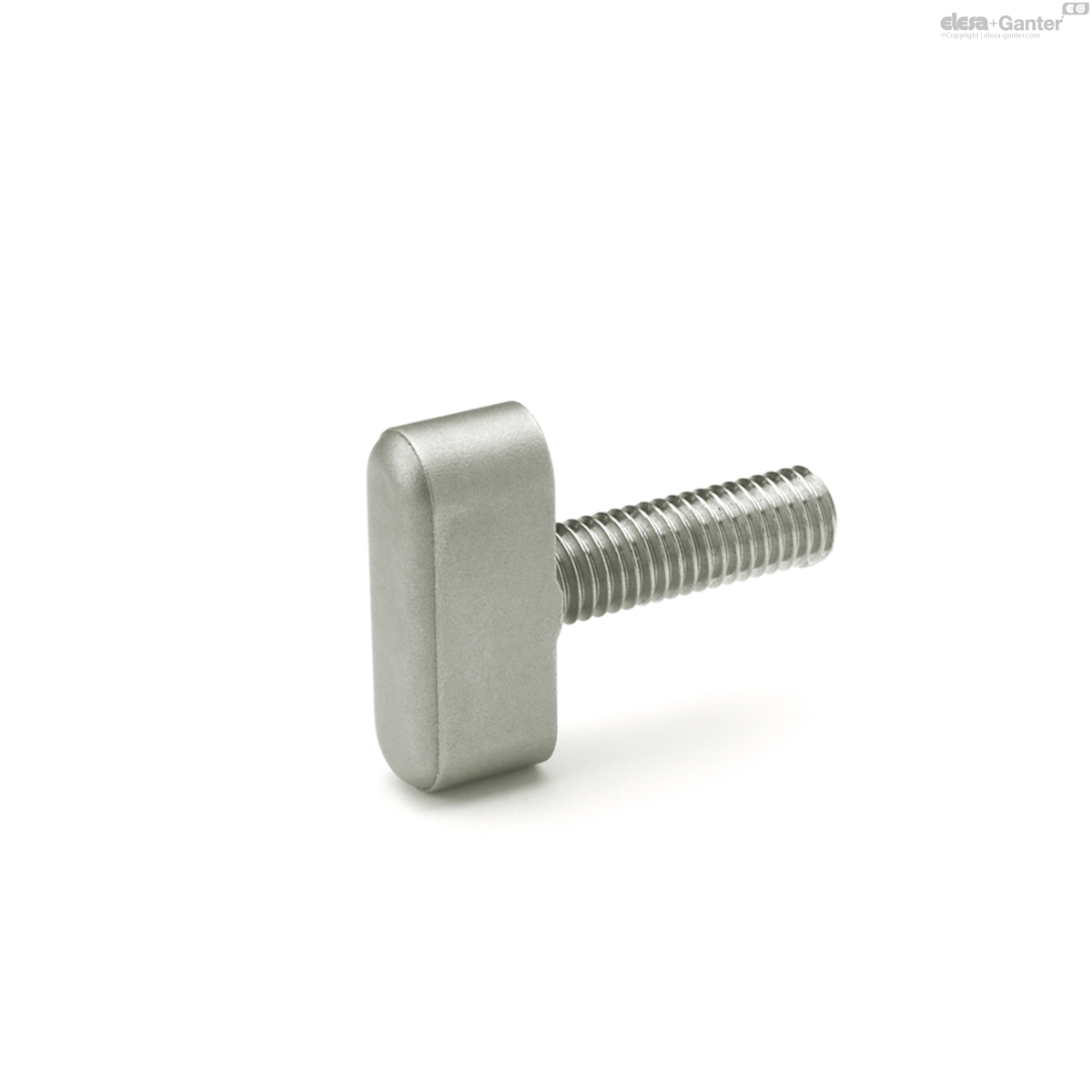

GN 431Stainless Steel-Wing screws
Wing Screws
GN 431
|
Catalogue
|

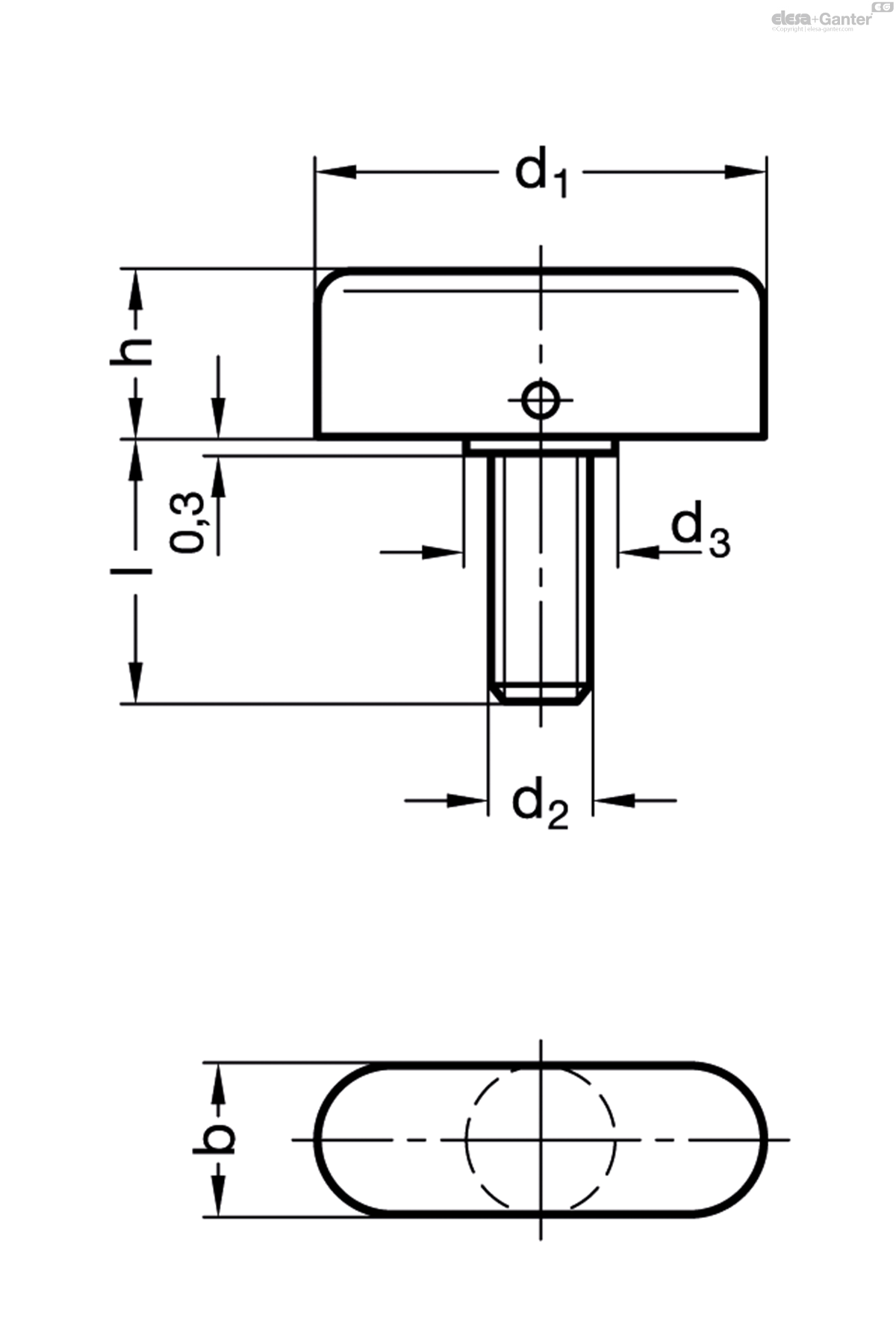

d1
|
d2
|
l
|
d3
|
b
|
h
|
|
|
|---|---|---|---|---|---|---|---|---|
|
25
|
M 6
|
16
|
8
|
8
|
10
|
15
| ||
|
25
|
M 6
|
20
|
8
|
8
|
10
|
16
| ||
|
25
|
M 6
|
25
|
8
|
8
|
10
|
17
| ||
|
30
|
M 6
|
16
|
10
|
10
|
12
|
24
| ||
|
30
|
M 6
|
20
|
10
|
10
|
12
|
25
| ||
|
30
|
M 6
|
25
|
10
|
10
|
12
|
26
| ||
|
30
|
M 8
|
16
|
10
|
10
|
12
|
27
| ||
|
30
|
M 8
|
20
|
10
|
10
|
12
|
28
| ||
|
30
|
M 8
|
25
|
10
|
10
|
12
|
30
| ||
|
30
|
M 8
|
32
|
10
|
10
|
12
|
32
| ||
|
36
|
M 8
|
16
|
12
|
12
|
14.5
|
44
| ||
|
36
|
M 8
|
20
|
12
|
12
|
14.5
|
45
| ||
|
36
|
M 8
|
25
|
12
|
12
|
14.5
|
47
| ||
|
36
|
M 8
|
32
|
12
|
12
|
14.5
|
49
| ||
|
36
|
M 10
|
20
|
12
|
12
|
14.5
|
48
| ||
|
36
|
M 10
|
30
|
12
|
12
|
14.5
|
53
| ||
|
36
|
M 10
|
40
|
12
|
12
|
14.5
|
55
|
Head
- Stainless Steel AISI 316L (Sintered Steel)
- matt shot-blasted
Threaded bolt
- Stainless Steel AISI 304
- matt shot-blasted
- screwed in and secured by cross-dowel
