GN 426.3Cabinet U-Handles

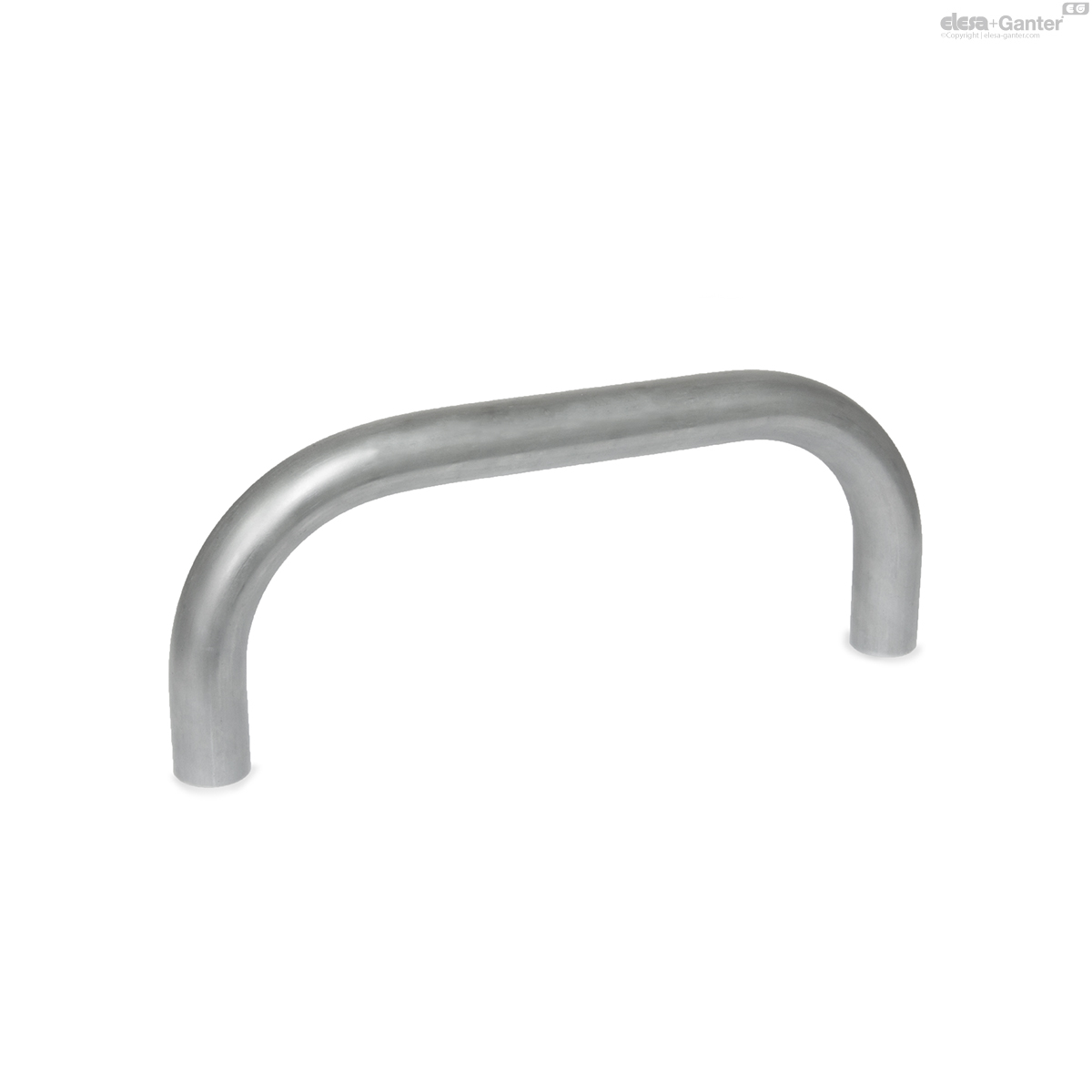

Cabinet U-Handles
Steel, for Welding, Made of Seamless Steel Tubing
GN 426.3
|
Catalogue
|

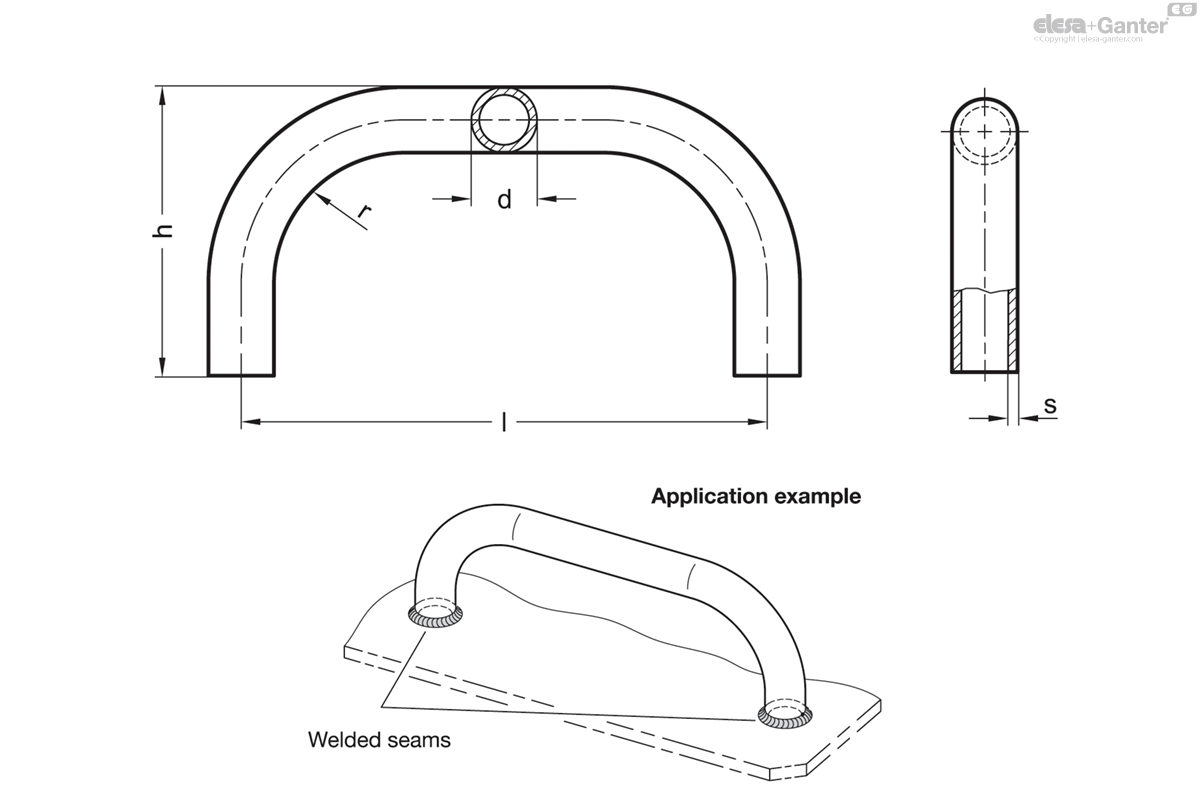

d
|
Length l ±1.5
|
h ±1.5
|
r
|
s
|
|
|
|---|---|---|---|---|---|---|---|
|
20
|
150
|
90
|
40
|
2.5
|
282
| ||
|
20
|
200
|
90
|
40
|
2.5
|
340
| ||
|
20
|
250
|
90
|
40
|
2.5
|
400
| ||
|
20
|
300
|
90
|
40
|
2.5
|
455
| ||
|
20
|
400
|
90
|
40
|
2.5
|
565
| ||
|
25
|
200
|
110
|
50
|
3
|
560
| ||
|
25
|
250
|
110
|
50
|
3
|
640
| ||
|
25
|
300
|
110
|
50
|
3
|
720
| ||
|
25
|
400
|
110
|
50
|
3
|
890
| ||
|
25
|
500
|
110
|
50
|
3
|
1050
| ||
|
30
|
300
|
130
|
60
|
3
|
935
| ||
|
30
|
350
|
130
|
60
|
3
|
1040
| ||
|
30
|
400
|
130
|
60
|
3
|
1140
| ||
|
30
|
500
|
130
|
60
|
3
|
1340
| ||
|
30
|
600
|
130
|
60
|
3
|
1555
|
Type
Type
- Type A: Simply curved, 90°
Steel ST
Steel ST
Plain, oiled
Cabinet U-handles GN 426.3 are manufactured from a bent steel profile.
