GN 425.3-STCabinet U-Handles
Steel
Steel / Stainless Steel, without Thread, for Welding
GN 425.3-ST
|
Catalogue
|
d1
|
Length l ±0.5
|
d2 H12
|
h
|
r
|
t
|
|
|
|---|---|---|---|---|---|---|---|---|
|
8
|
64
|
3
|
35
|
10
|
5
|
46
| ||
|
8
|
88
|
3
|
35
|
10
|
5
|
55
| ||
|
8
|
100
|
3
|
35
|
10
|
5
|
58
| ||
|
10
|
100
|
3
|
43
|
12
|
5
|
98
| ||
|
10
|
125
|
3
|
43
|
12
|
5
|
113
| ||
|
10
|
160
|
3
|
43
|
12
|
5
|
138
| ||
|
12
|
125
|
4
|
51
|
14
|
6
|
172
| ||
|
12
|
160
|
4
|
51
|
14
|
6
|
203
| ||
|
12
|
200
|
4
|
51
|
14
|
6
|
243
| ||
|
16
|
125
|
4
|
59
|
18
|
6
|
320
| ||
|
16
|
160
|
4
|
59
|
18
|
6
|
373
| ||
|
16
|
200
|
4
|
59
|
18
|
6
|
444
| ||
|
20
|
200
|
5
|
68
|
22
|
8
|
720
| ||
|
20
|
250
|
5
|
68
|
22
|
8
|
800
|
Steel ST
Steel ST
Plain finish

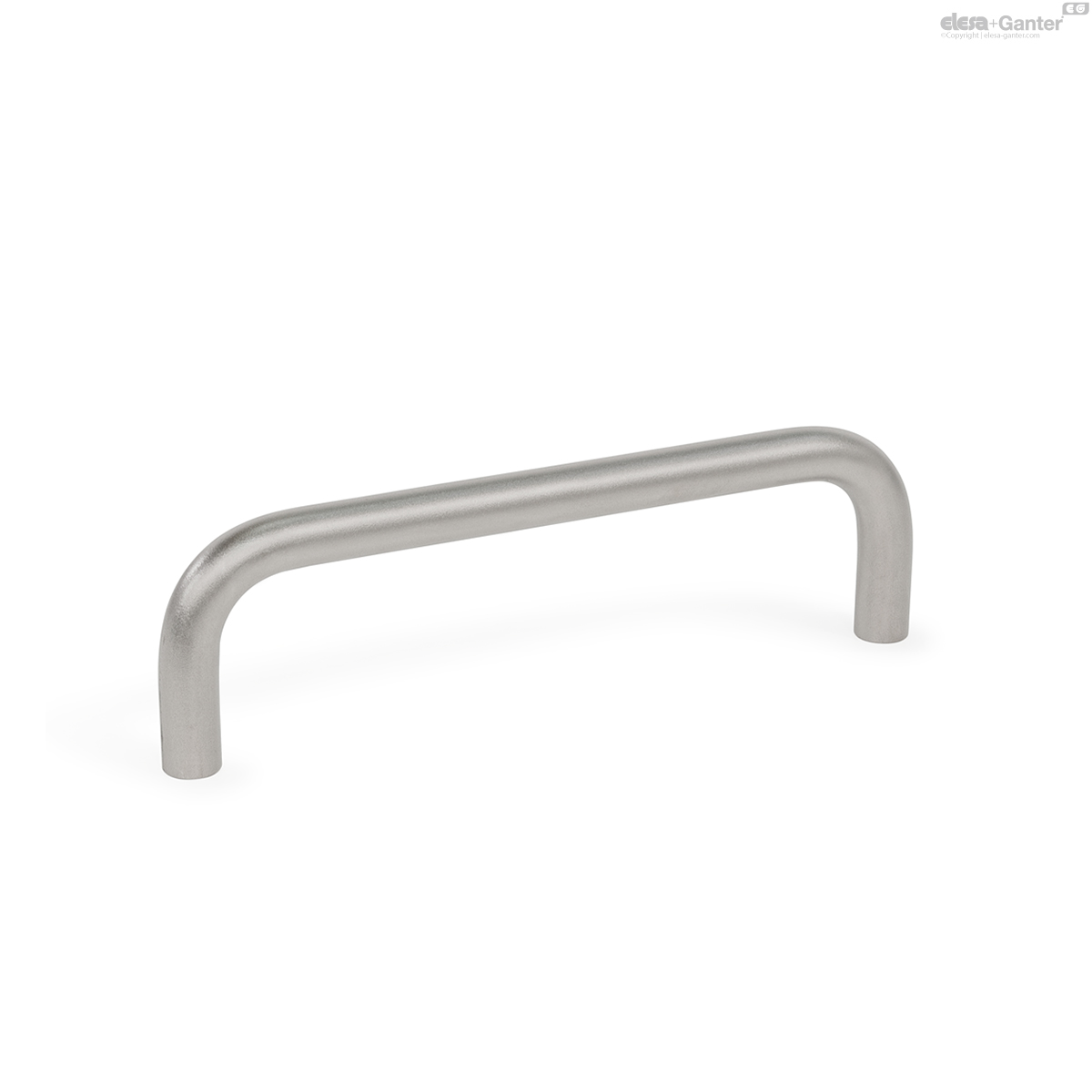

Stainless steel AISI 304 NI
Stainless steel AISI 304 NI
Matte shot-blasted

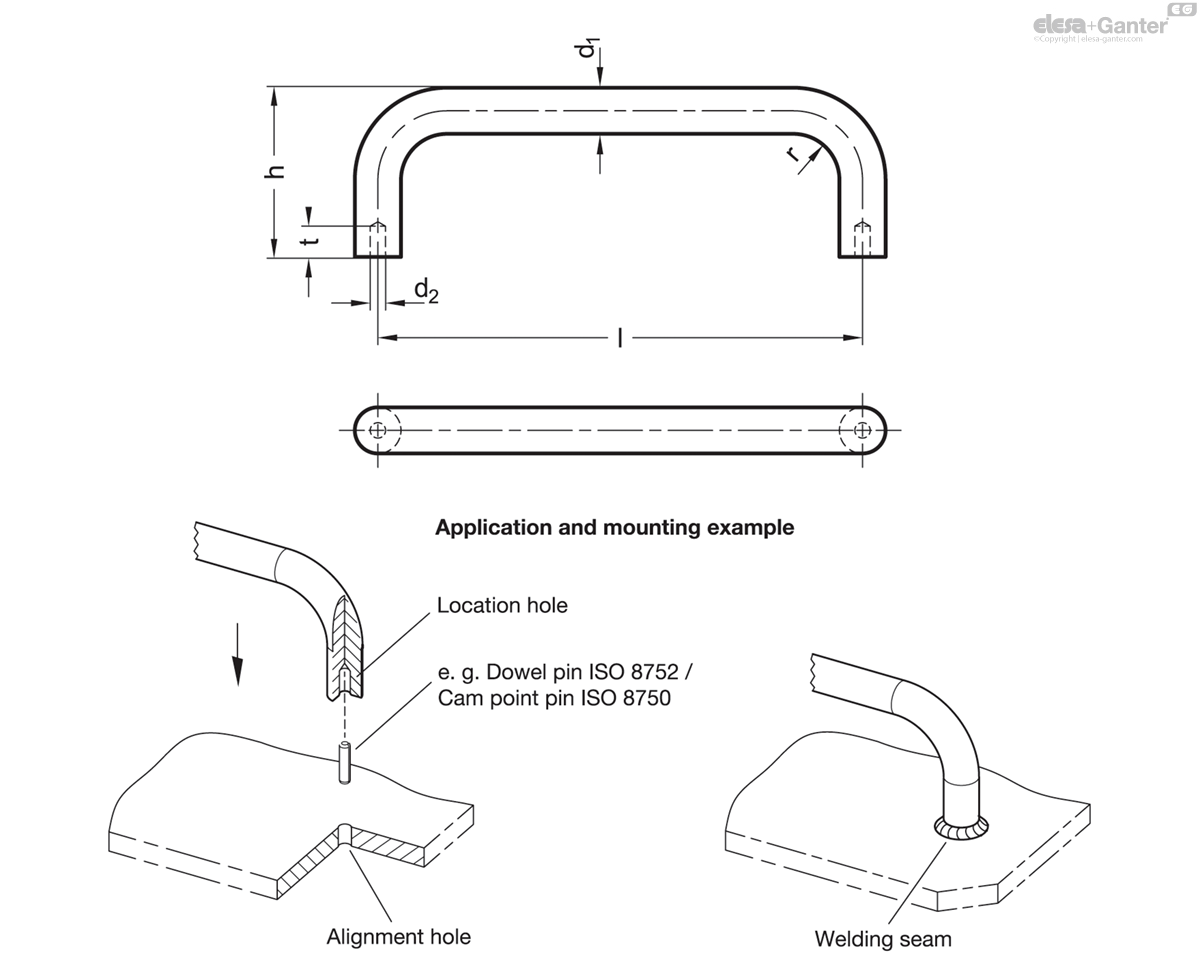

Cabinet U-handles GN 425.3 are made of bent steel or stainless steel sections and are affixed by welding.
The holes d2 serve, if necessary, for inserting dowel pins or guide pins that provide a simple method for positioning and fixing the cabinet U-handle in place via the alignment holes in the opposing part for the welding process.
