Technical datasheet
GN 36-CMachine Feet
with O-ring
without Central Fastening Hole
GN 36-C
|
Catalogue
|
d1
|
d2
|
l1
|
l2 ≈
|
l3
|
A/F 1
|
A/F 2
|
Static load F
in kN |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
80
|
M 20 x 1.5
|
60
|
27.5
|
15
|
16
|
16
|
50
|
534
| ||
|
80
|
M 20 x 1.5
|
100
|
27.5
|
15
|
16
|
16
|
50
|
582
| ||
|
80
|
M 24 x 2
|
70
|
27.5
|
15
|
19
|
19
|
70
|
596
| ||
|
80
|
M 24 x 2
|
120
|
27.5
|
15
|
19
|
19
|
70
|
770
| ||
|
100
|
M 20 x 1.5
|
60
|
30
|
17.5
|
16
|
16
|
50
|
672
| ||
|
100
|
M 20 x 1.5
|
100
|
30
|
17.5
|
16
|
16
|
50
|
810
| ||
|
100
|
M 24 x 2
|
70
|
30
|
17.5
|
19
|
19
|
70
|
783
| ||
|
100
|
M 24 x 2
|
120
|
30
|
17.5
|
19
|
19
|
70
|
957
| ||
|
125
|
M 24 x 2
|
70
|
35
|
21
|
19
|
19
|
70
|
1199
| ||
|
125
|
M 24 x 2
|
120
|
35
|
21
|
19
|
19
|
70
|
1374
| ||
|
125
|
M 30 x 2
|
90
|
38
|
21
|
24
|
24
|
120
|
1566
| ||
|
125
|
M 30 x 2
|
150
|
38
|
21
|
24
|
24
|
120
|
1892
| ||
|
160
|
M 30 x 2
|
90
|
45
|
27
|
24
|
24
|
120
|
2491
| ||
|
160
|
M 30 x 2
|
150
|
45
|
27
|
24
|
24
|
120
|
2817
| ||
|
160
|
M 36 x 2
|
110
|
45
|
27
|
30
|
30
|
180
|
2901
| ||
|
160
|
M 36 x 2
|
180
|
45
|
27
|
30
|
30
|
180
|
3449
| ||
|
200
|
M 36 x 2
|
110
|
55
|
33
|
30
|
30
|
180
|
4555
| ||
|
200
|
M 36 x 2
|
180
|
55
|
33
|
30
|
30
|
180
|
5104
| ||
|
200
|
M 42 x 2
|
125
|
55
|
33
|
36
|
36
|
250
|
5082
| ||
|
200
|
M 42 x 2
|
210
|
55
|
33
|
36
|
36
|
250
|
5989
|

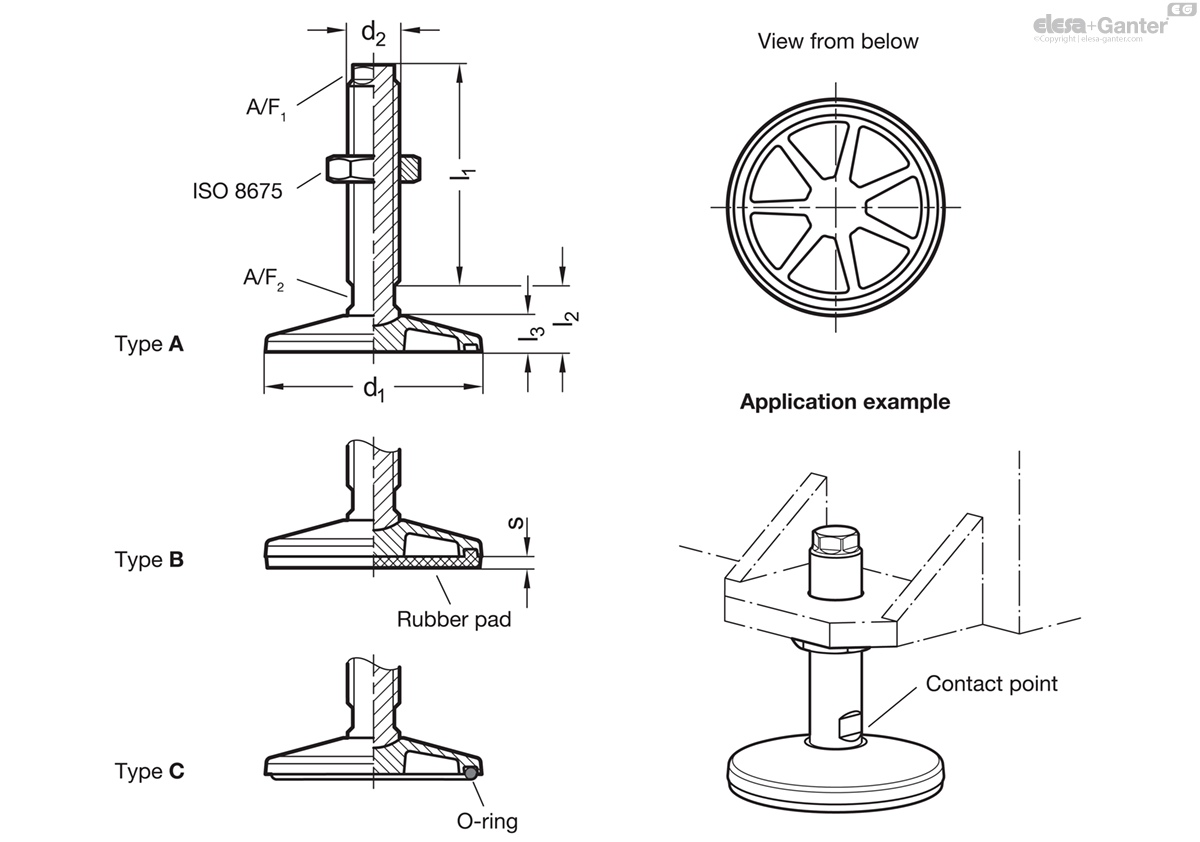

Types (Foot plate)

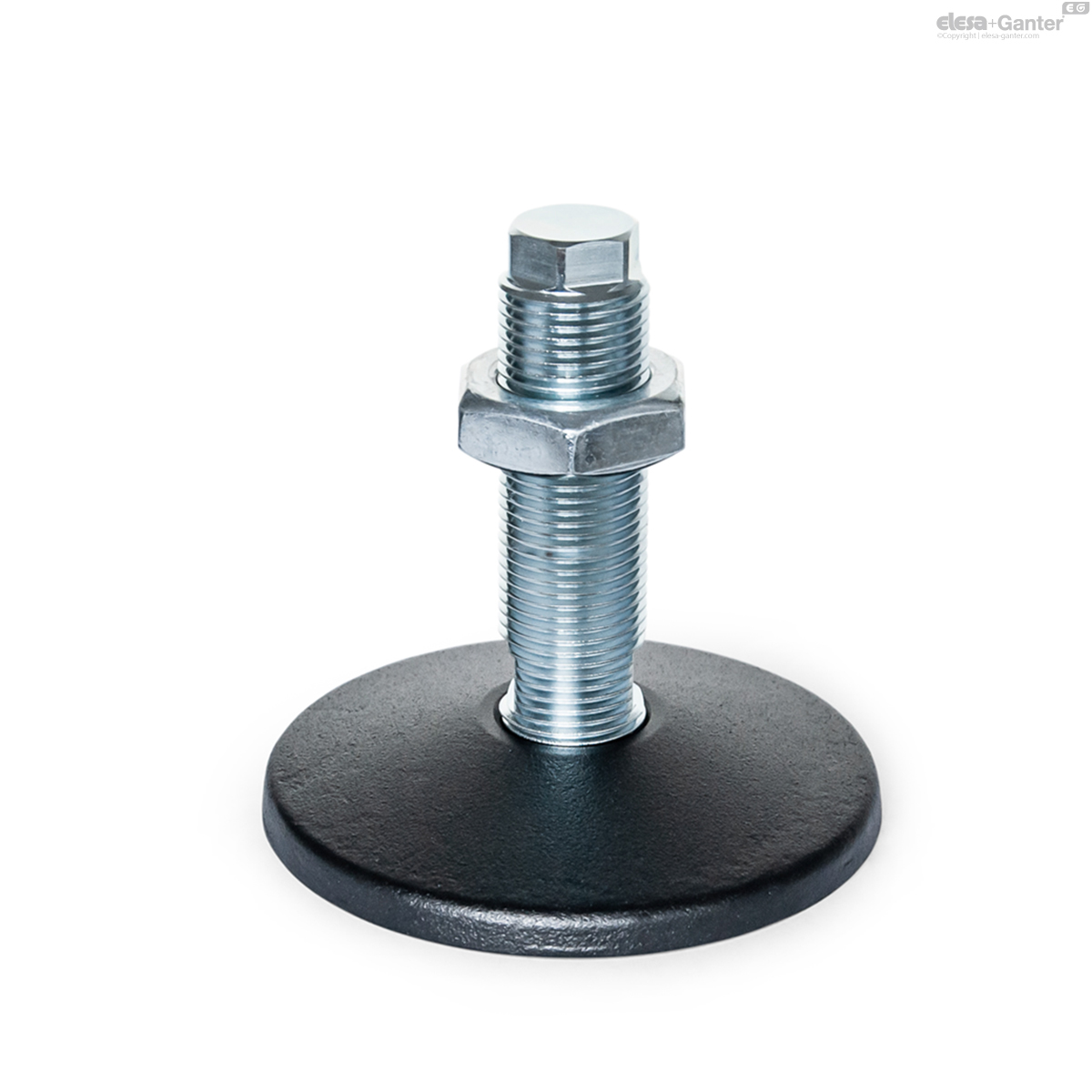

- Type A: without rubber underlay

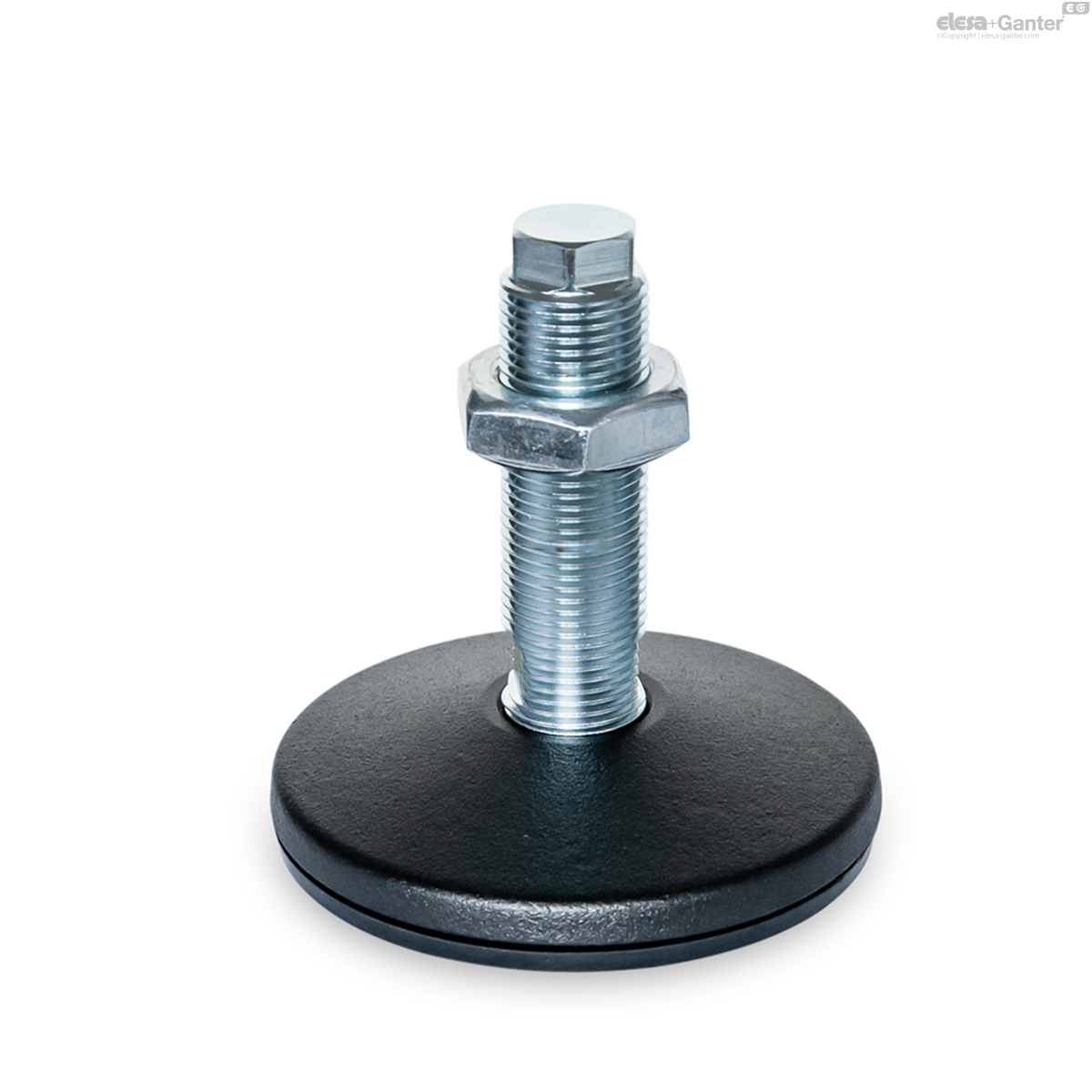

- Type B: with rubber underlay

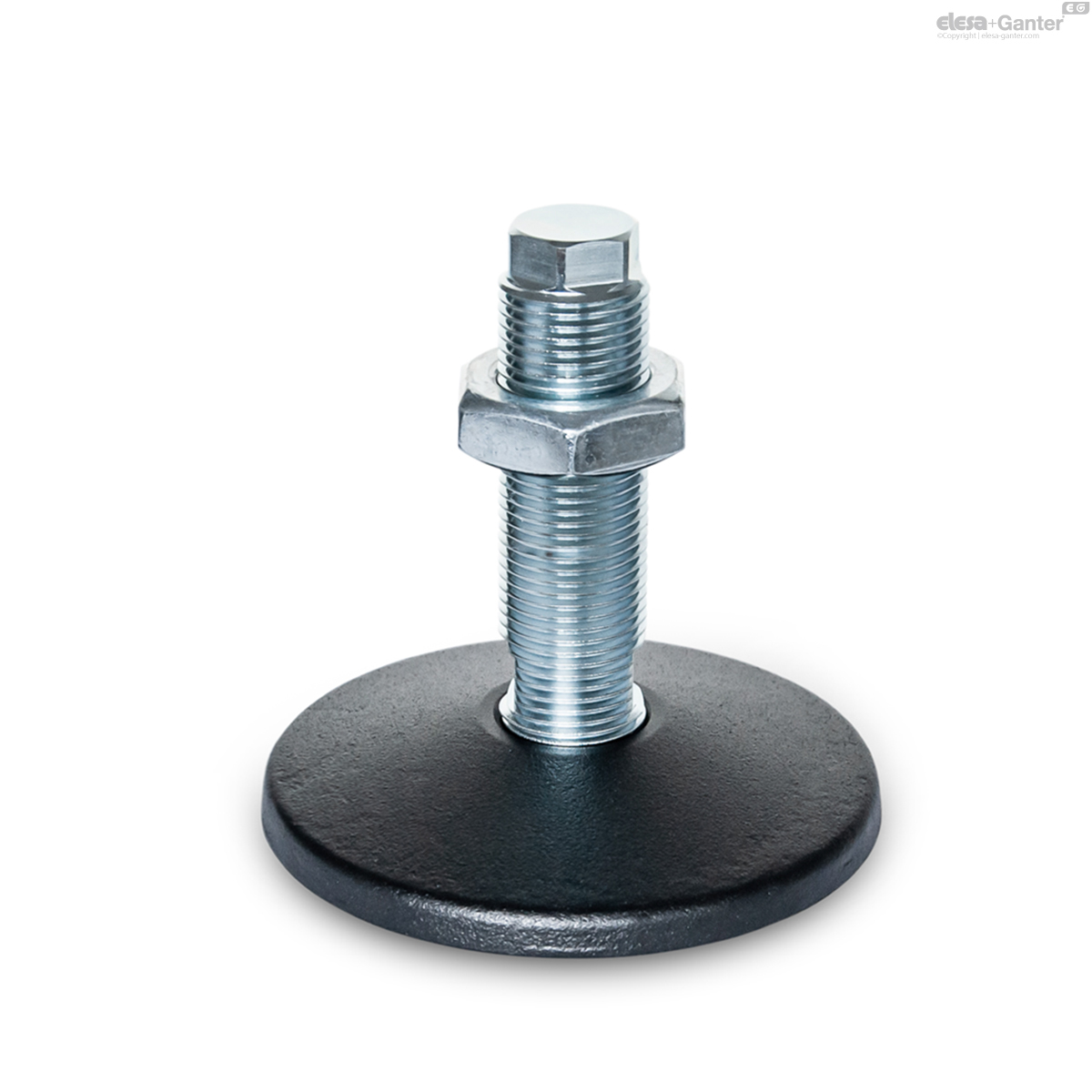

- Type C: with O-ring
Foot plate
Steel, plastic coated
black, RAL 9005, textured finish
Threaded studs / Hexagon nut ISO 8675
Steel, zinc plated, blue passivated
Rubber underlay, inlaid
black, NBR
85±5 Shore A
O-ring, inlaid
black, NBR
≈ 70 Shore A
Machine feet GN 36 are characterized by their solid construction and large variety. They are used especially on large and heavy systems and machines.
Foot plates and threaded studs are not connected together, during setup they are automatically centered by the radius at the contact point.
Type B with rubber underlay prevents slipping to the side, protects delicate surfaces and dampens vibrations and tremors. Type C with O-ring provides a seal over the ground to prevent the build-up of dirt under the foot.
Related products
GN 21-S/SK
Leveling Feet
Stainless Steel, with Turned Base Plate, without Mounting Holes

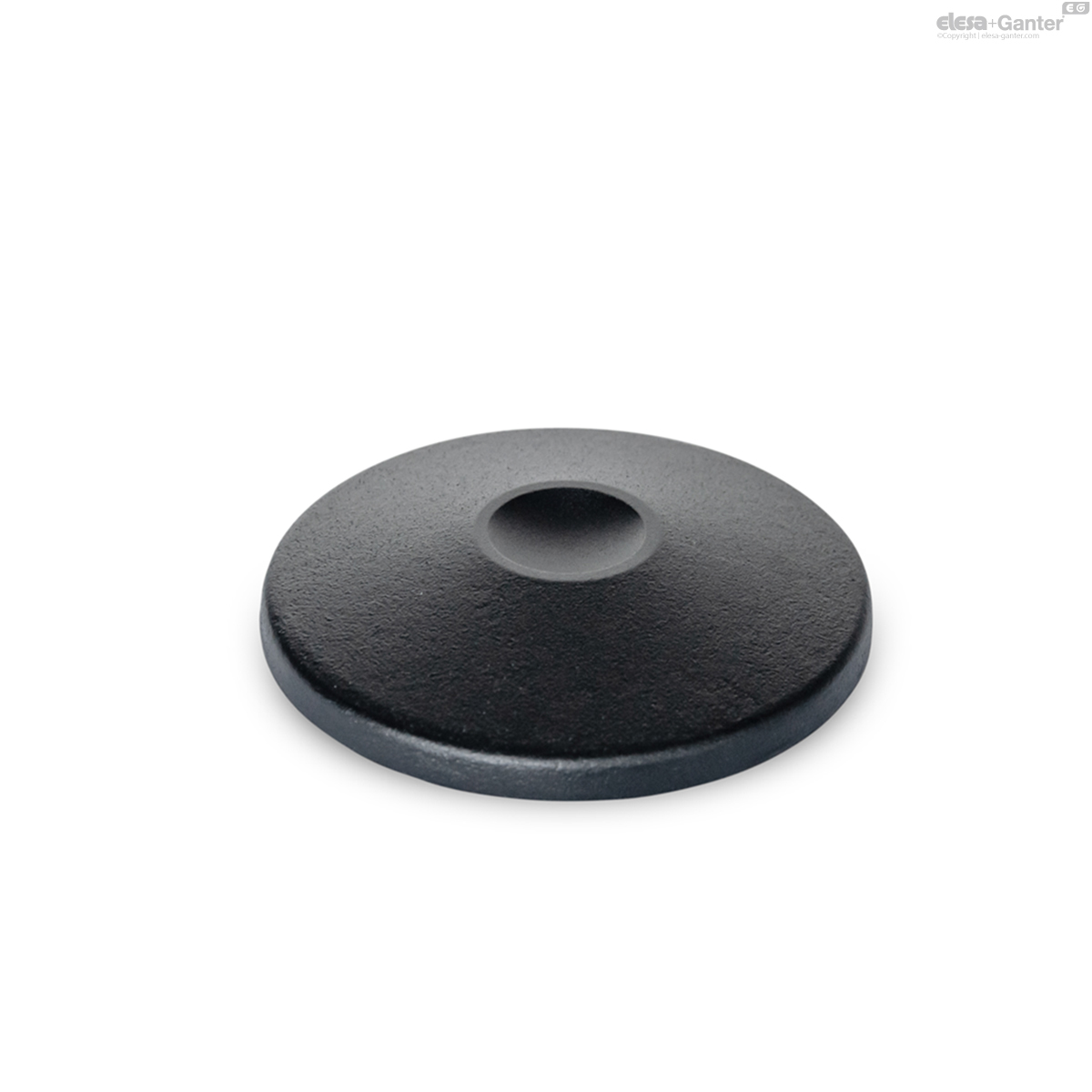

GN 36.1-A
Foot plates
without central fastening hole

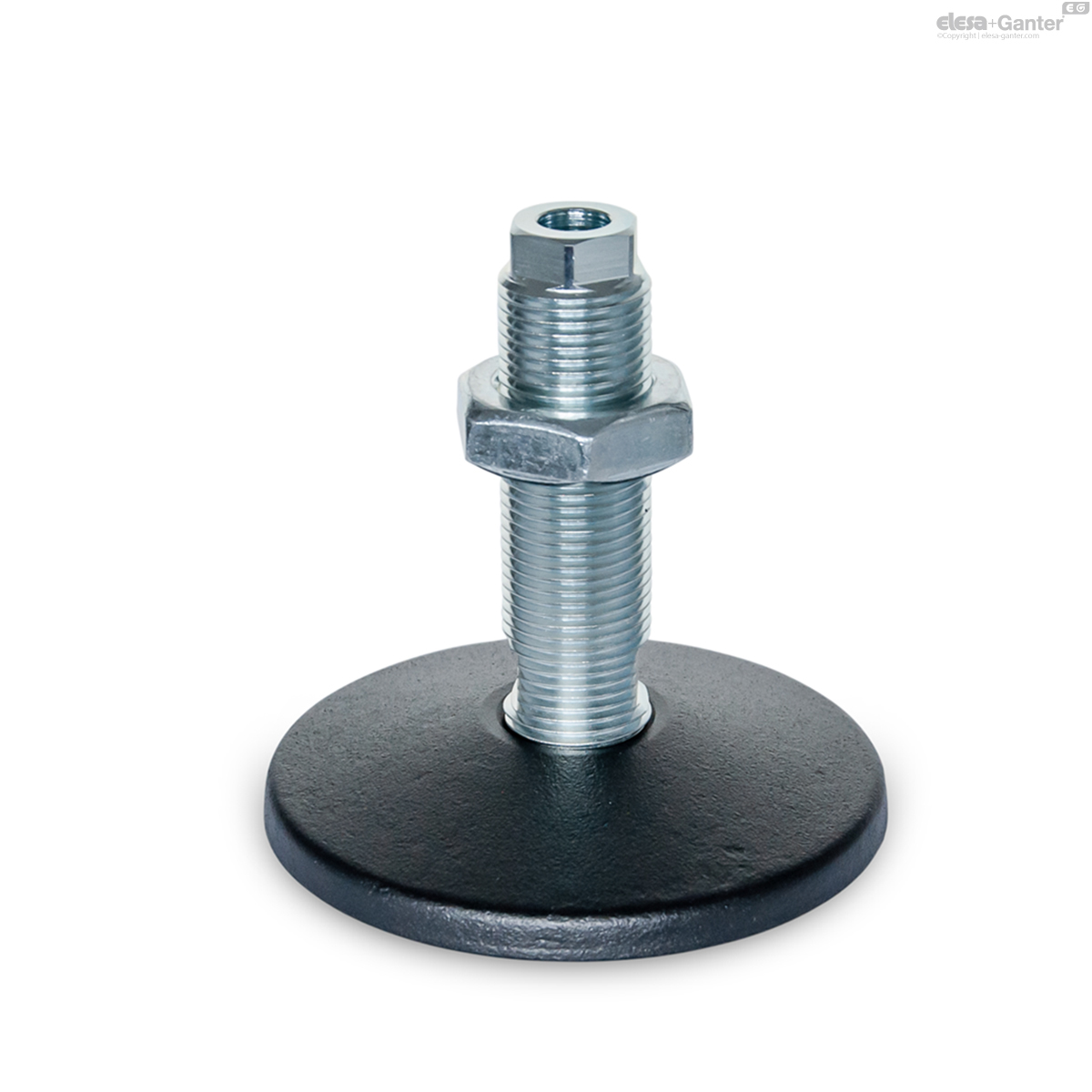

GN 37-A
