Technical datasheet

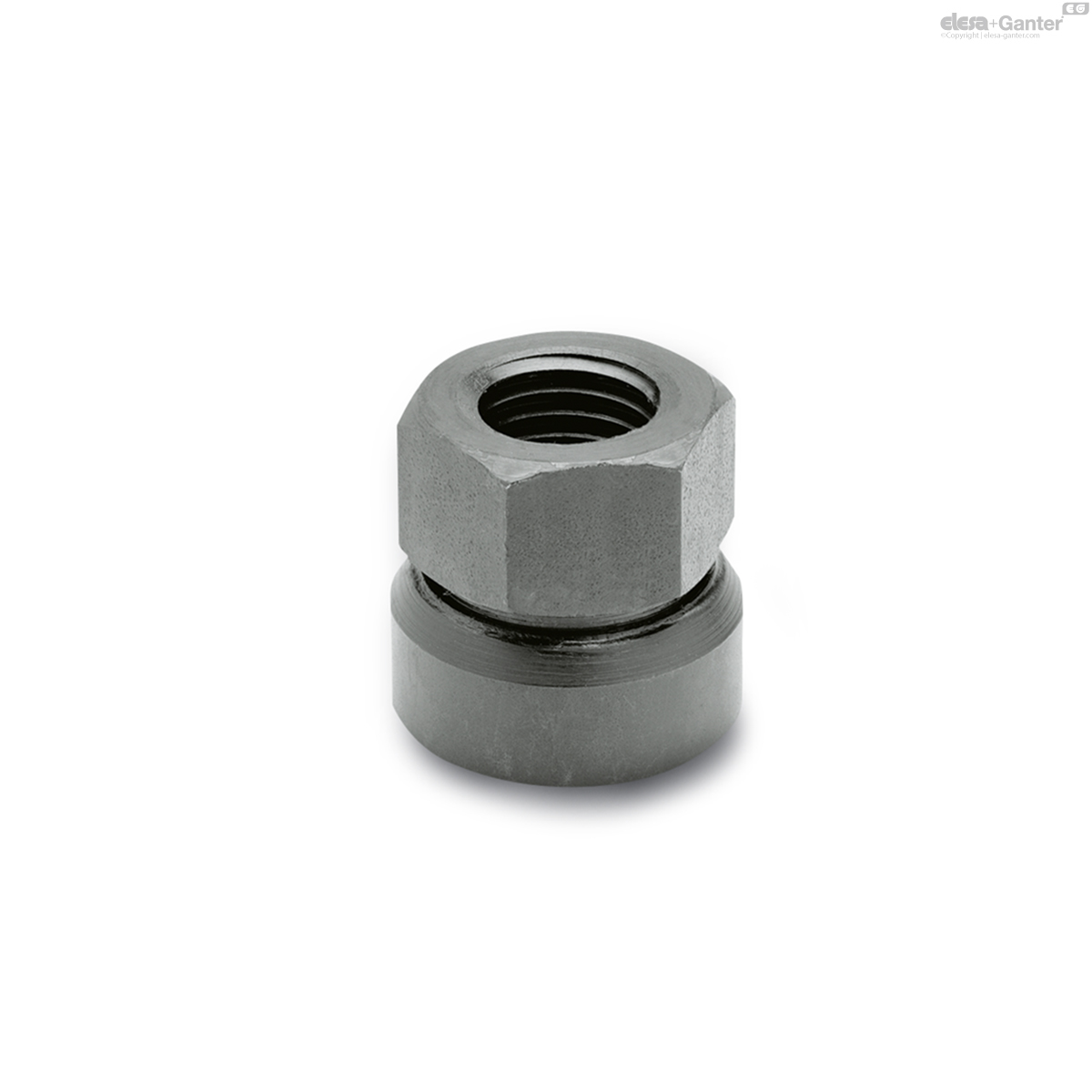

GN 347Hex Nuts with Ball Socket
Hex Nuts with Ball Socket
GN 347
|
Catalogue
|
d1
|
d2
|
l ≈
|
A/F
|
|
|
|---|---|---|---|---|---|---|
|
17
|
M 8
|
14
|
13
|
12
| ||
|
21
|
M 10
|
17.5
|
16
|
24
| ||
|
24
|
M 12
|
21.5
|
18
|
37
| ||
|
30
|
M 16
|
28
|
24
|
70
| ||
|
36
|
M 20
|
35
|
30
|
140
| ||
|
44
|
M 24
|
42.5
|
36
|
261
|
Steel
- Tensile strength class 10
- blackened

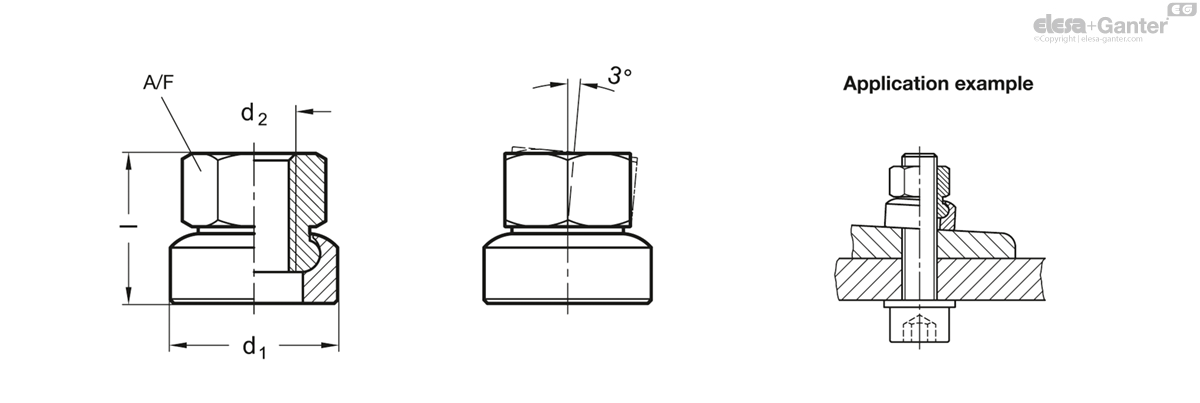

Hexagon nuts with ball socket GN 347 are capable od clamping slanting surfaces up to 3° without disturbing / twisting the clamped surface.
Related products
GN 350.3-ST
Spherical Leveling Washers
Steel / Stainless Steel
GN 6319.1

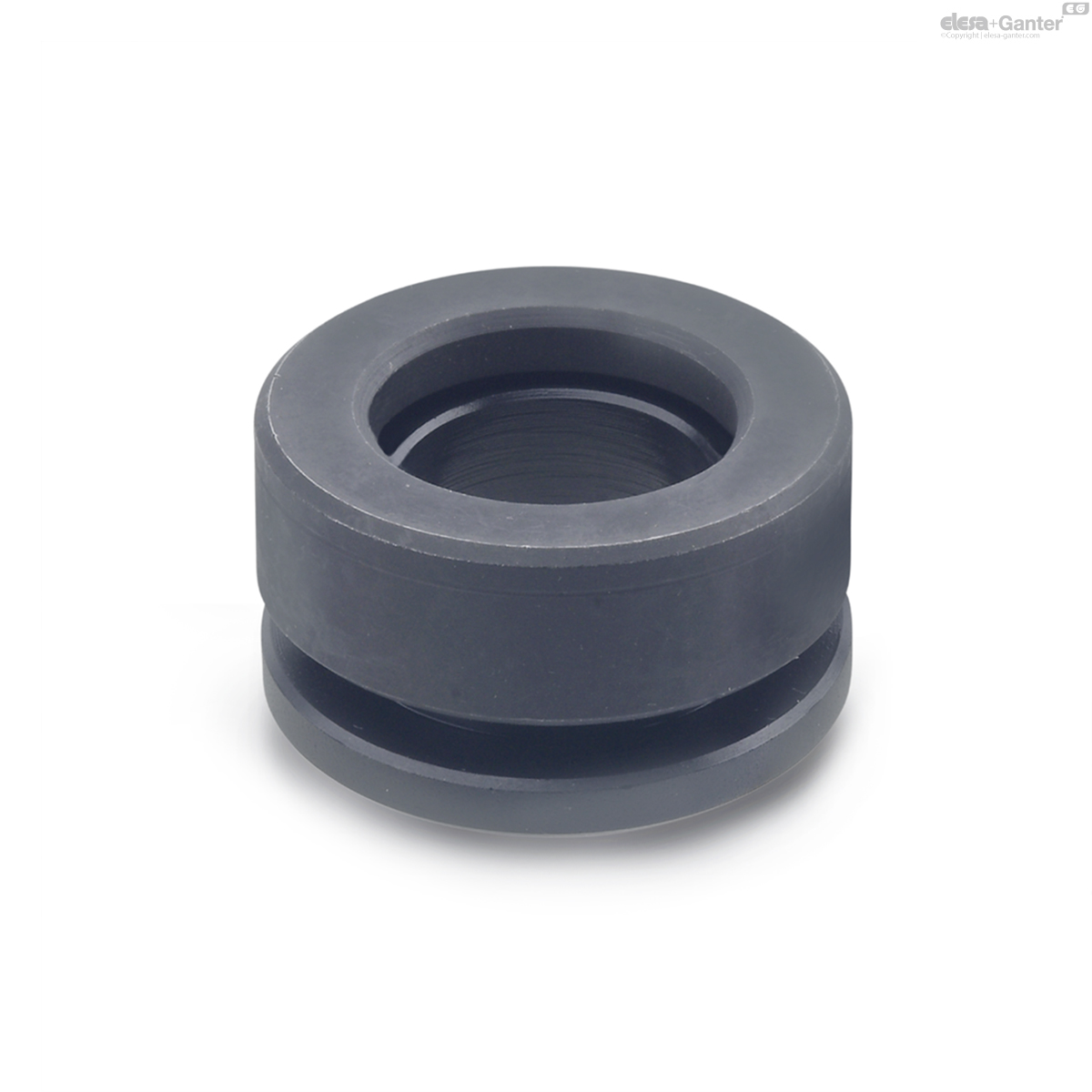

Spherical washers
