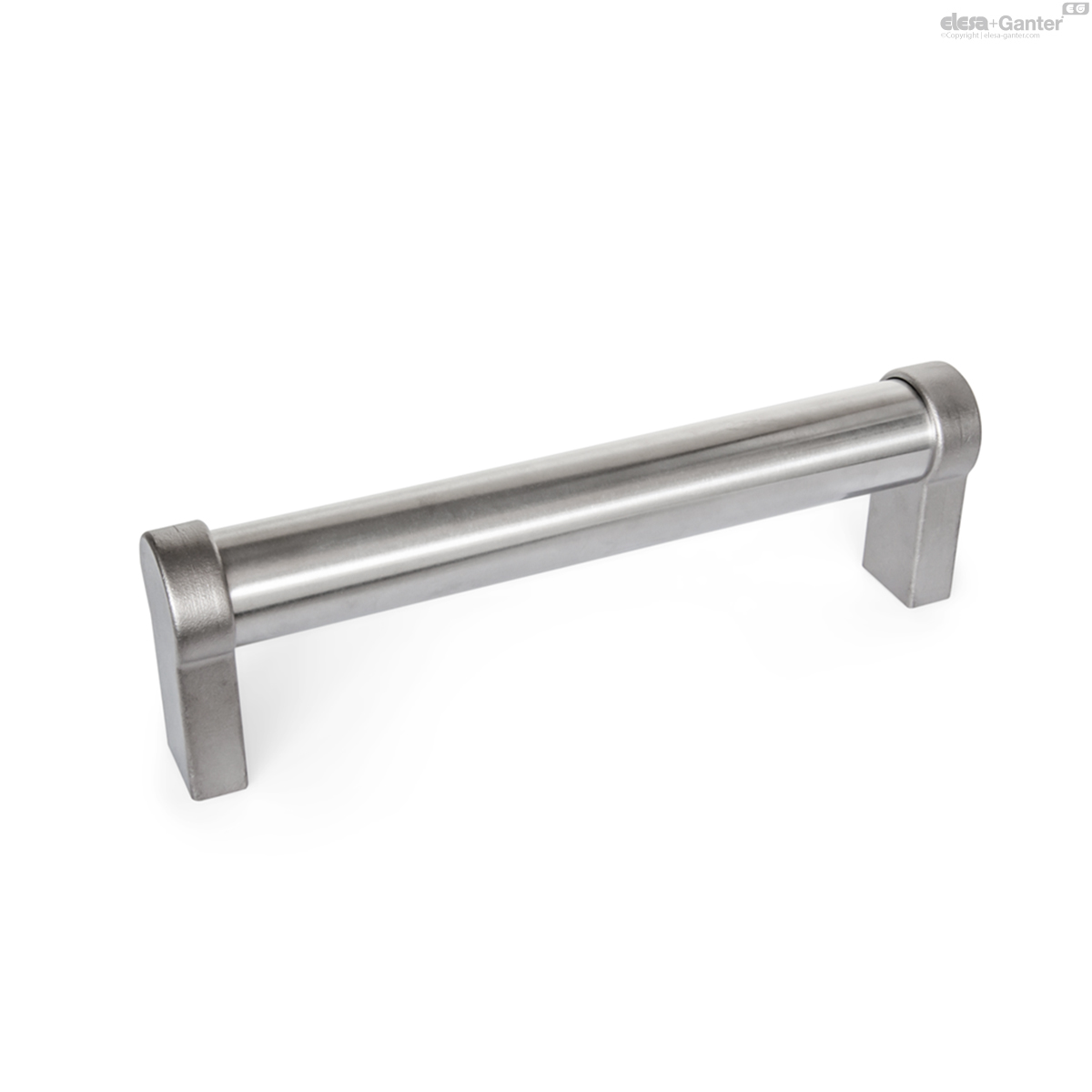

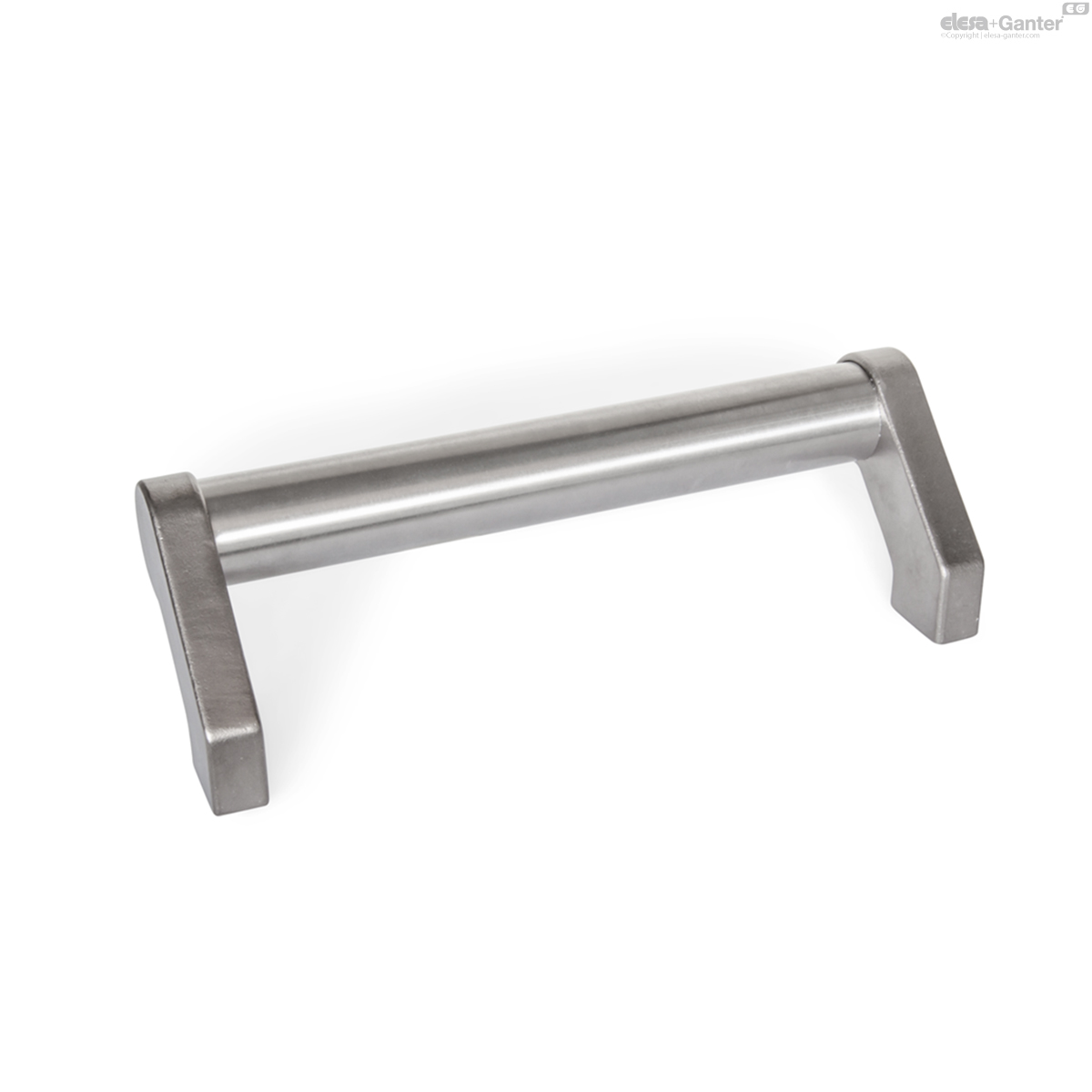

GN 333.6Tubular Handles

Tubular Handles

Stainless Steel

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Tubular Handles
Tubular Handles

GN 333.6

Reset
Catalogue

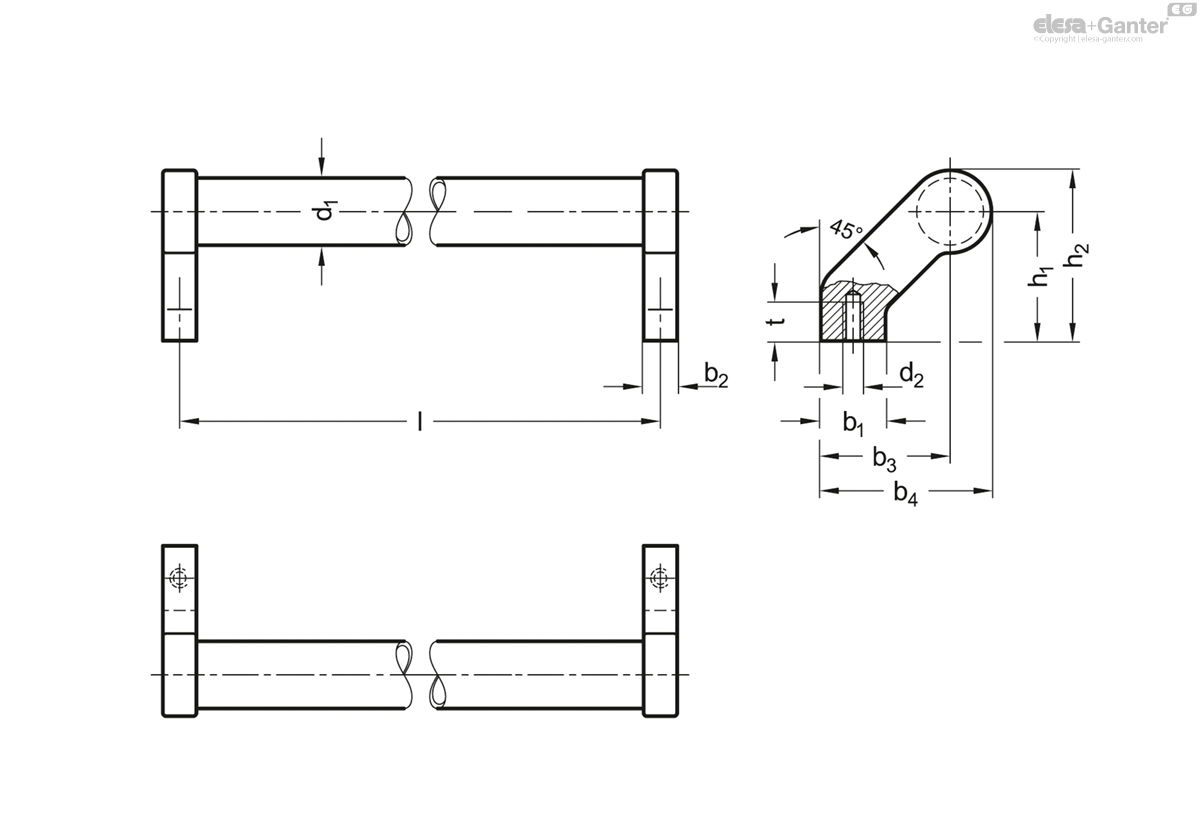

d1
Length l
b1
b2
b3
b4
d2
h1
h2
t min.
GN 333.6-28-200
28
200
25
14
50
66
M 8
50
66
15
605
GN 333.6-28-250
28
250
25
14
50
66
M 8
50
66
15
670
GN 333.6-28-300
28
300
25
14
50
66
M 8
50
66
15
730
GN 333.6-28-400
28
400
25
14
50
66
M 8
50
66
15
845
GN 333.6-28-500
28
500
25
14
50
66
M 8
50
66
15
980
GN 333.6-28-600
28
600
25
14
50
66
M 8
50
66
15
1060

Handle tube

Stainless steel AISI 304, wall thickness 2 mm

Ground, matte shiny finish

Handle legs

Stainless steel precision casting AISI CF-8

Matte shot-blasted

With the tubular handles GN 333.6, the handle legs and the handle tube are pressed together.

A typical application for tubular handles is on double-winged doors for machines or devices.
