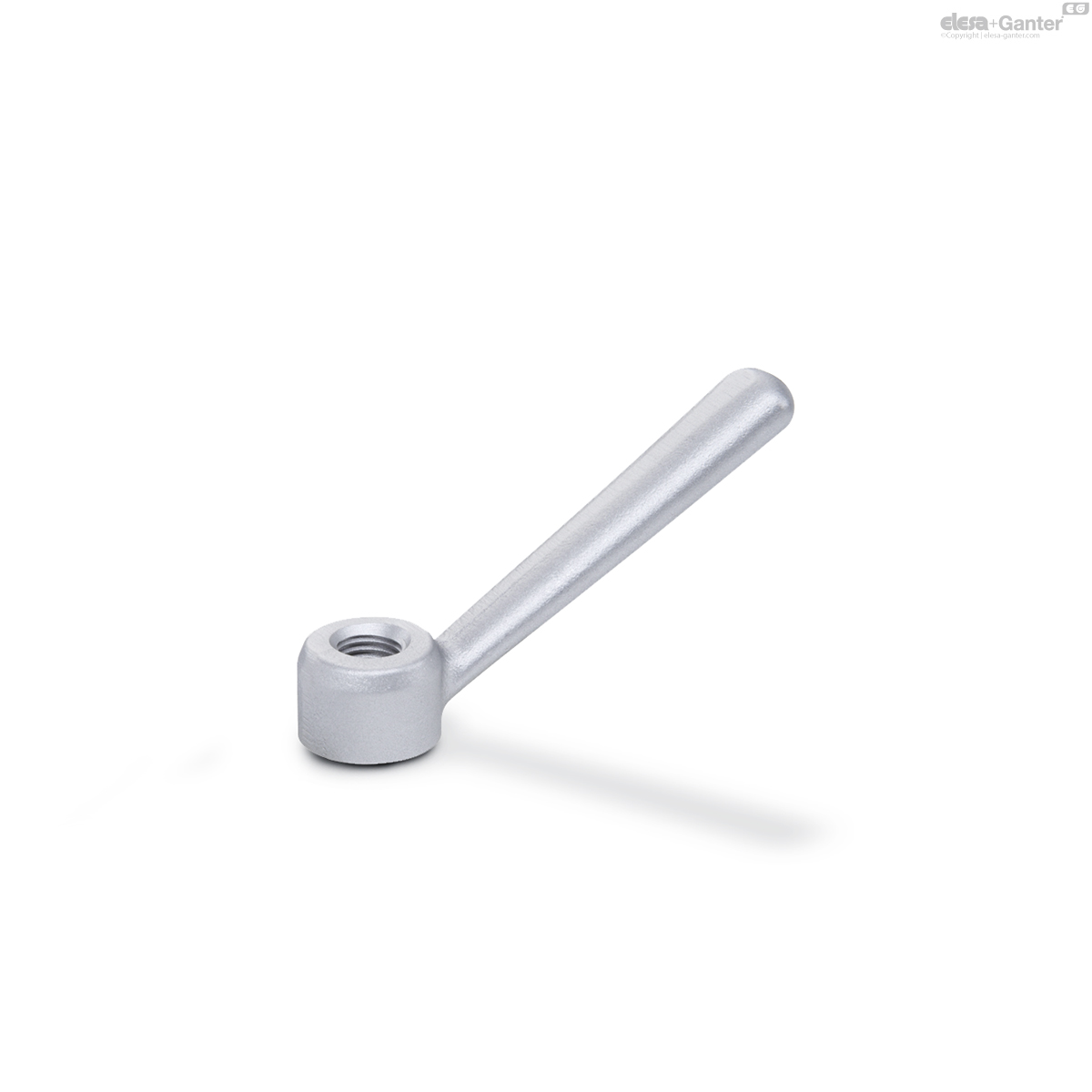

GN 206-NIClamp Nuts

Stainless Steel

Steel / Stainless Steel

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Stainless Steel
Stainless Steel
Steel

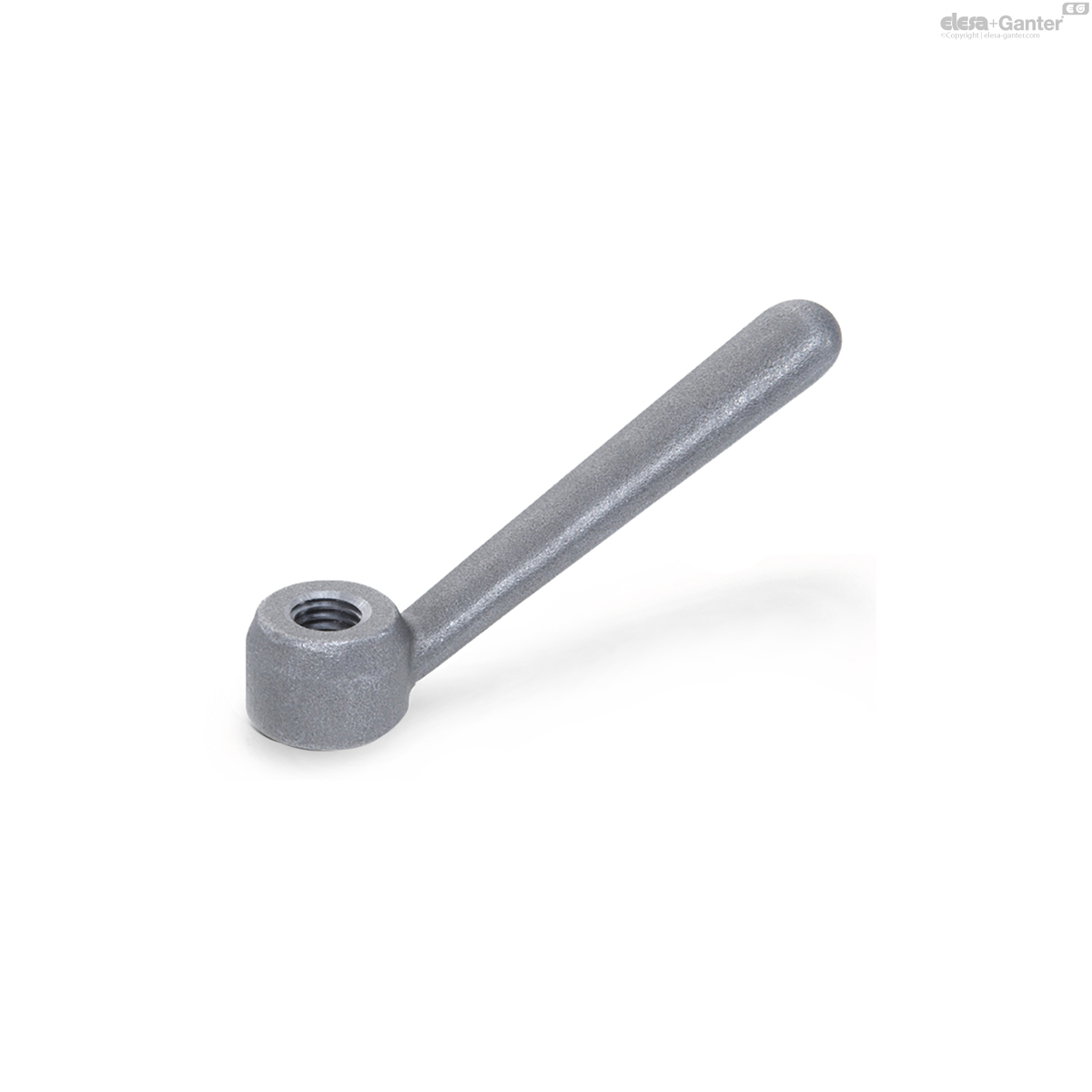

GN 206-ST
Steel
Stainless Steel
GN 206-NI
Stainless Steel

GN 206-NI

Reset
Catalogue

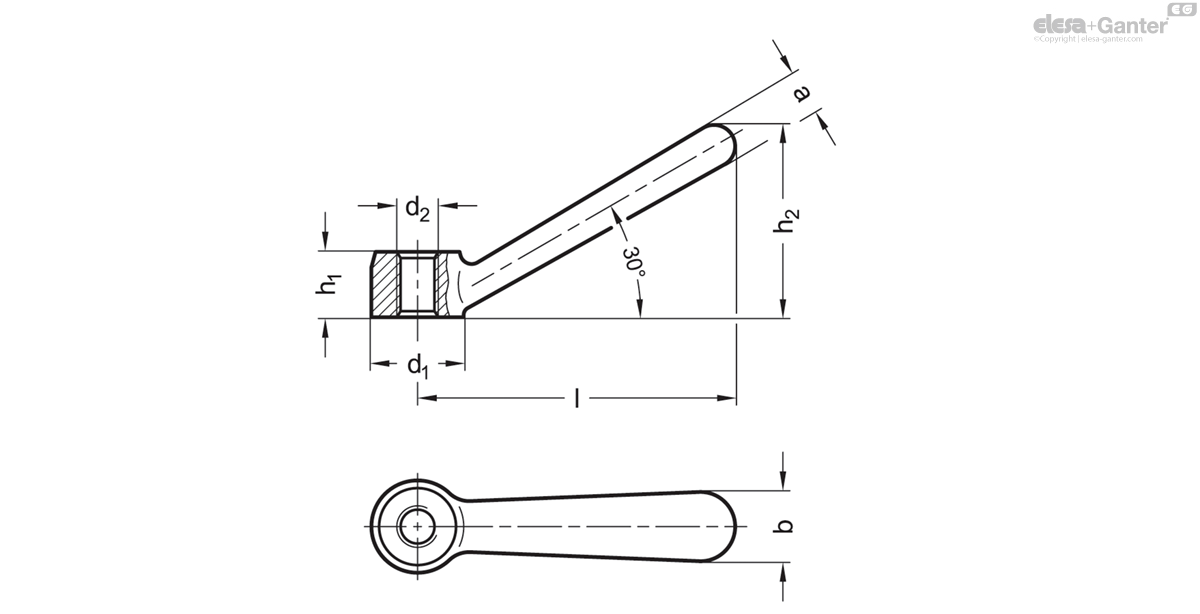

d1
d2
a
b
h1
h2 ≈
l ≈
GN 206-16-M8-NI
16
M 8
7
12
12
35
56
34
GN 206-20-M10-NI
20
M 10
9
14
14
44
70
63
GN 206-25-M12-NI
25
M 12
11
18
18
52
87
125
GN 206-32-M16-NI
32
M 16
15
22
22
66
109
248
GN 206-40-M20-NI
40
M 20
18
28
28
84
140
518

Cast iron

  • Fettled
  • Contact faces machined

Stainless steel precision casting AISI CF-8 NI

  • Fettled
  • Contact face machined
  • Clamp nuts GN 206, powder coated
Related products

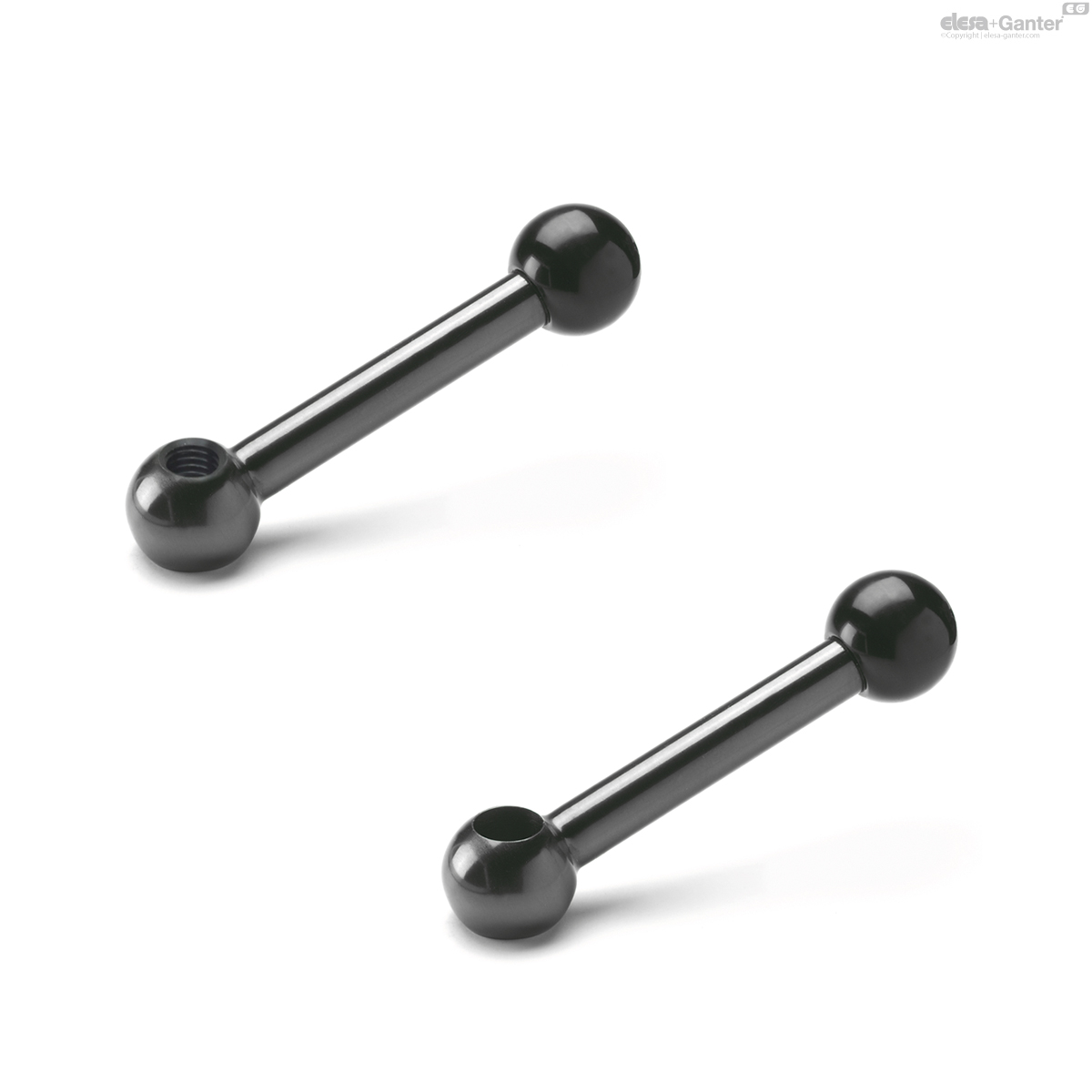

Ball Levers

DIN 6337

Ball Levers Steel
Clamping levers, Steel

DIN 99

Clamping Levers Steel / Stainless Steel
Brass boss, threaded hole

ERF-B

Lever handles Technopolymer
Brass boss, threaded blind hole

ERFW-B

Flat lever handles Technopolymer
Steel

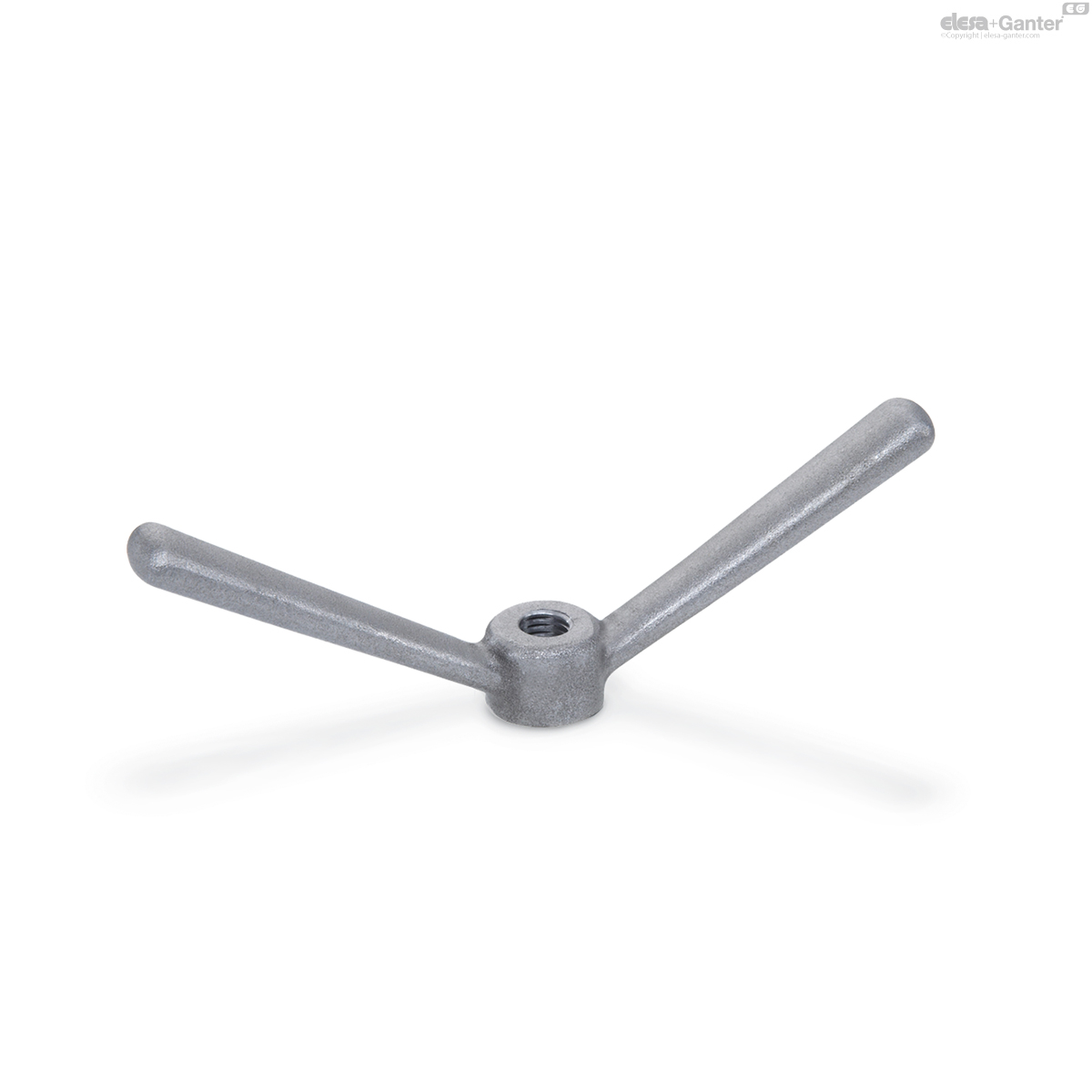

GN 206.1-ST

Clamp Nuts with Double Lever Steel / Stainless Steel
Steel

GN 212-ST

Tension Levers Steel / Stainless Steel

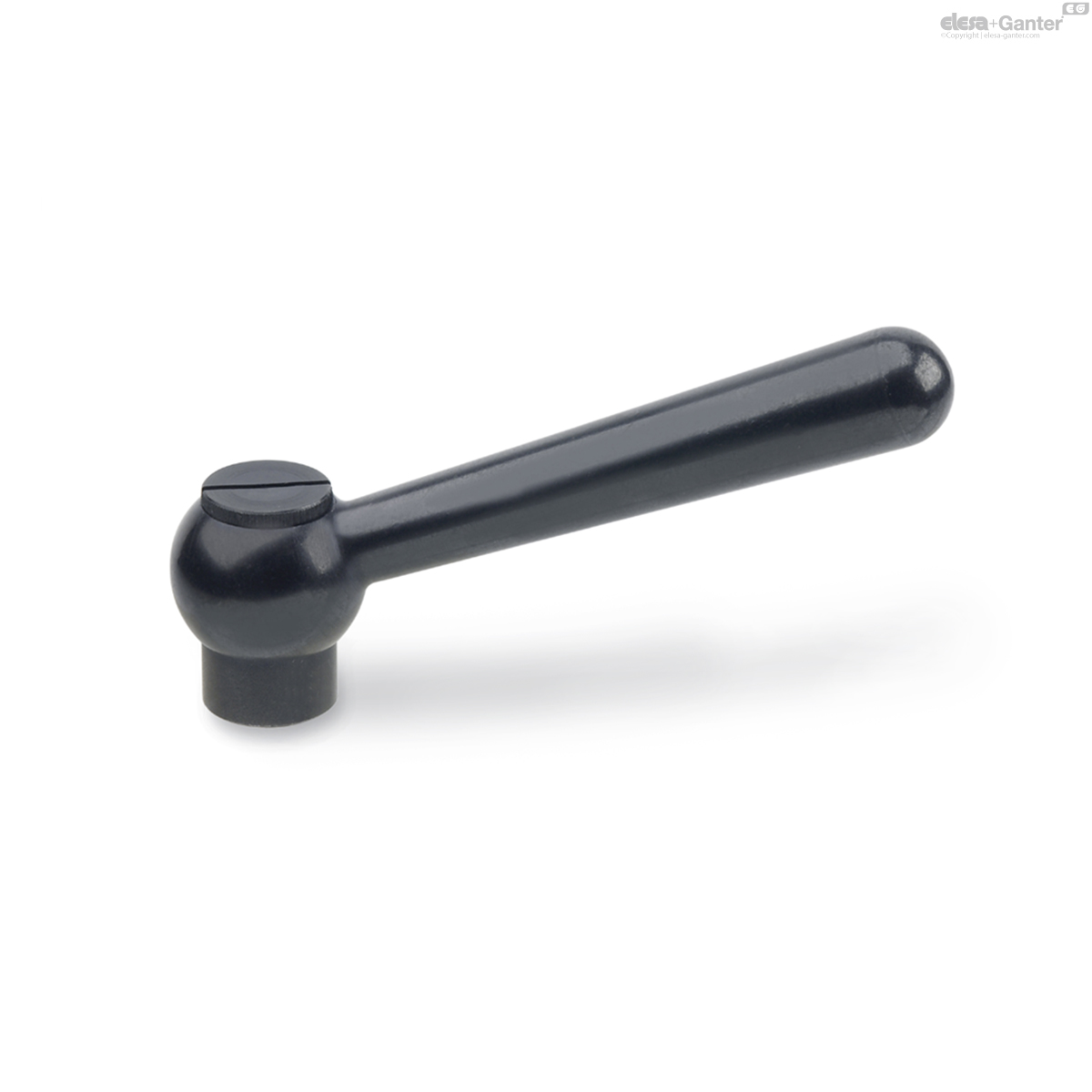

Clamping levers with threaded insert

GN 99.2

Clamping levers PUSH to disengage

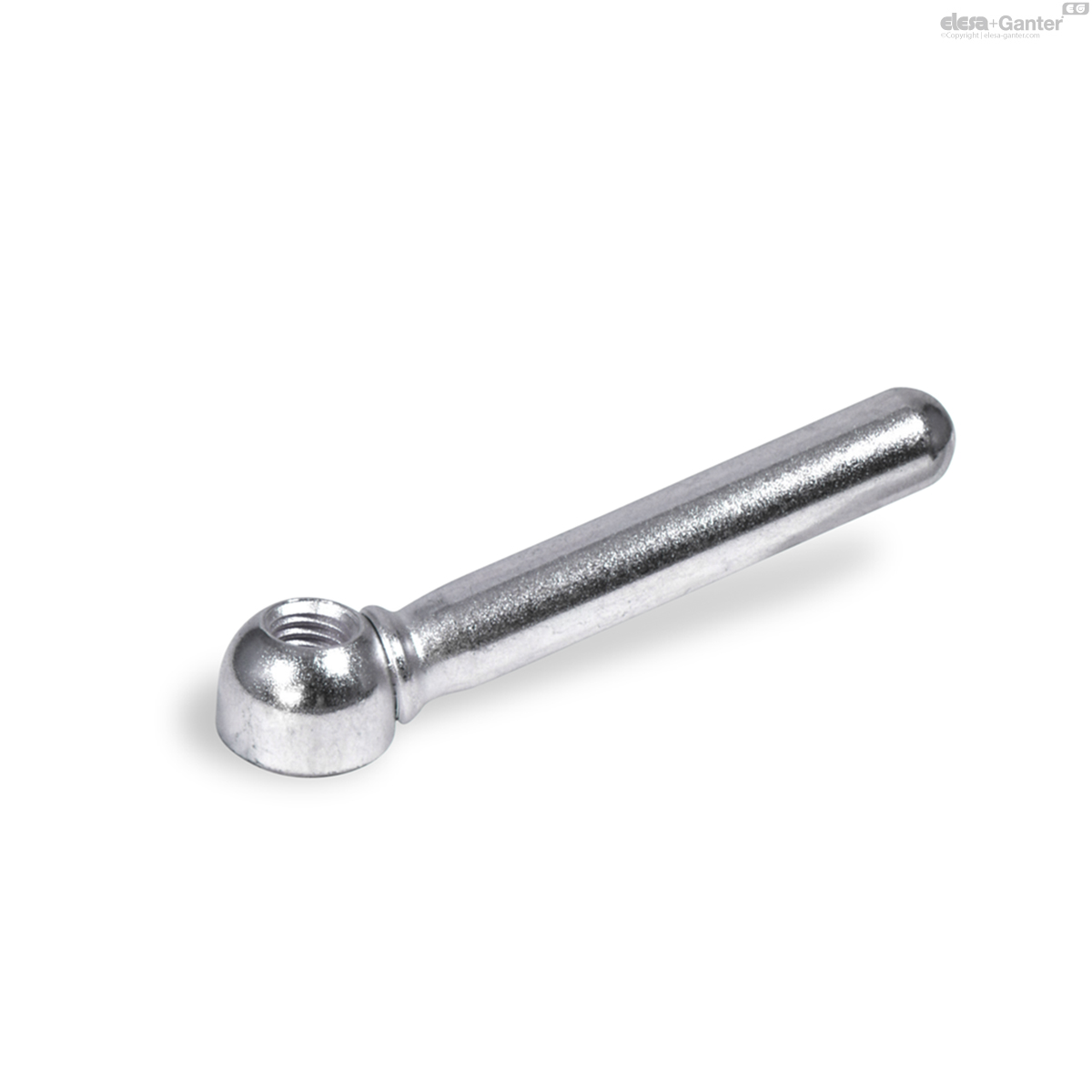

Clamp Nuts

GN 99.5

Clamp nuts

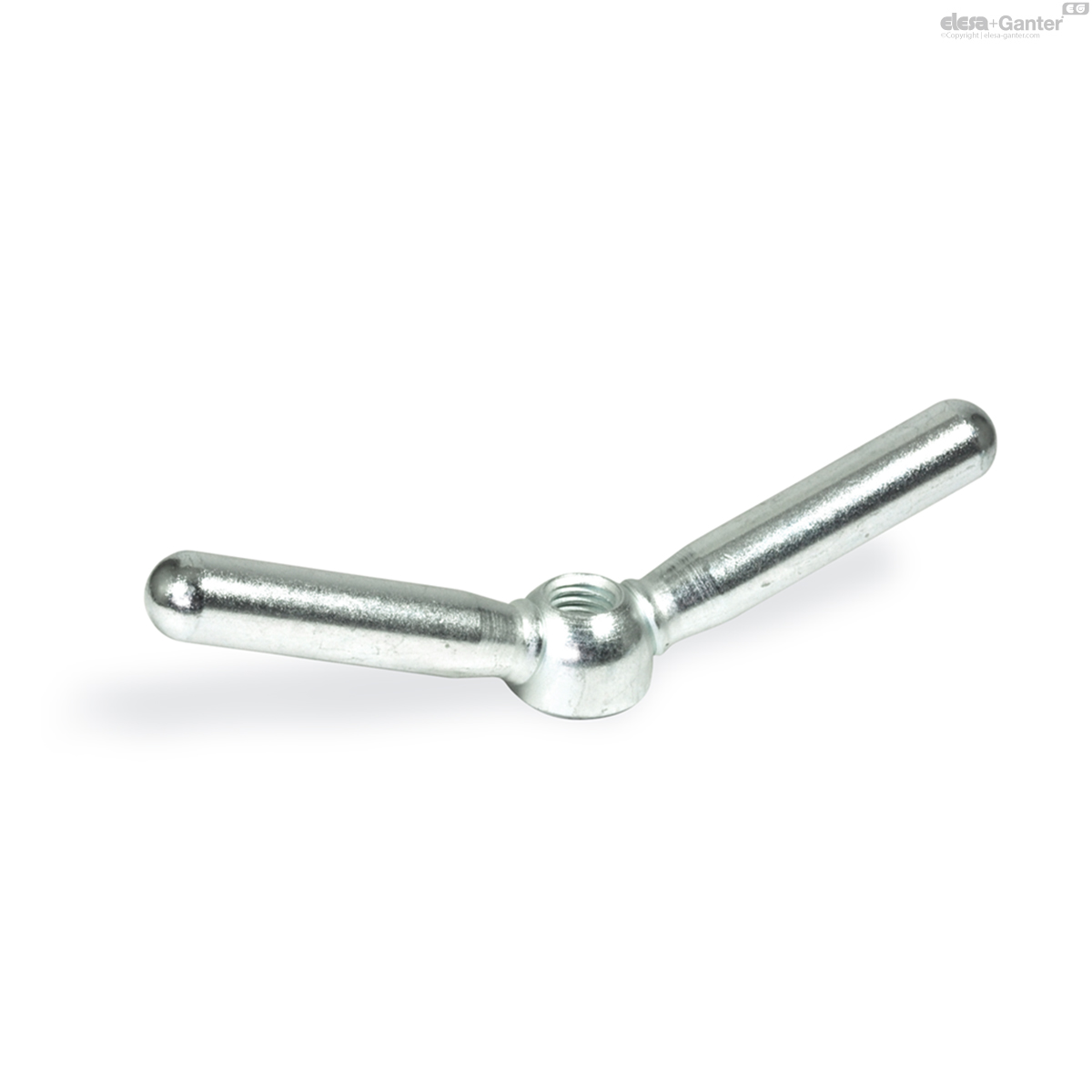

Clamp Nuts with Double Lever
