Technical datasheet
GN 183C-Washers
C-Washers
GN 183
|
Catalogue
|

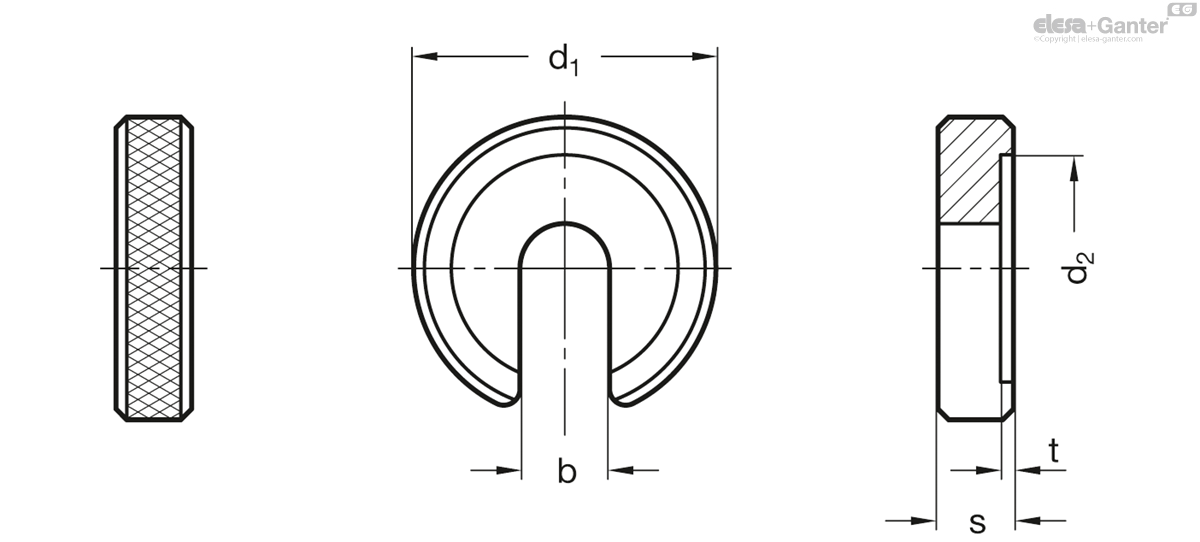

d1
|
b
|
d2
|
s
|
t
|
For threaded bolt
|
|
|
|---|---|---|---|---|---|---|---|---|
|
22
|
6.2
|
16
|
6
|
0.8
|
M 6
|
20
| ||
|
28
|
8.3
|
21
|
7
|
1
|
M 8
|
23
| ||
|
34
|
10.4
|
25
|
8
|
1.2
|
M 10
|
39
| ||
|
40
|
12.5
|
30
|
9
|
1.8
|
M 12
|
57
| ||
|
56
|
16.5
|
37
|
12
|
1.8
|
M 16
|
161
|
Steel
- Case hardened
- blackened

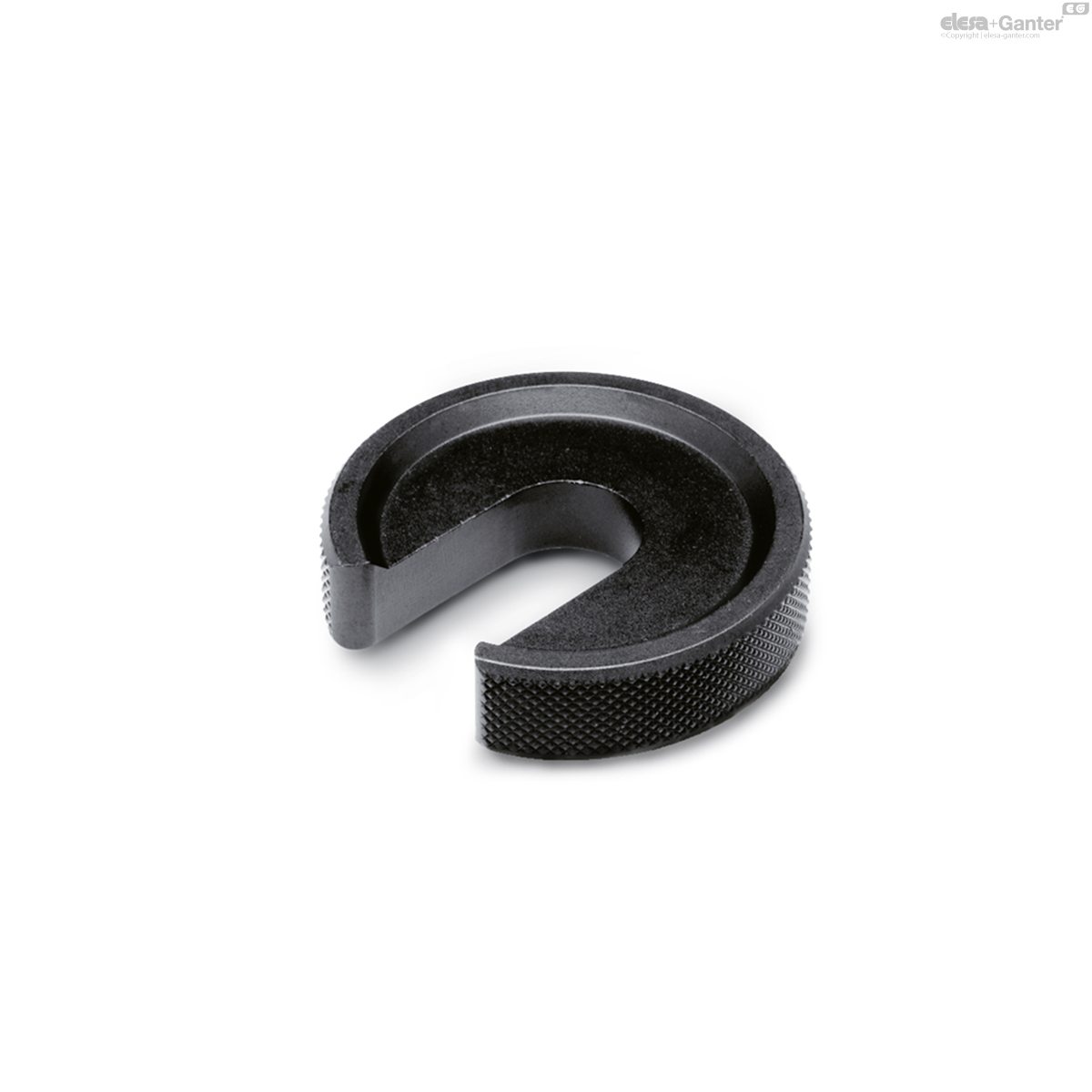

C-Washers GN 183 maybe installed without the removal of the nut from the stud.
In terms of dimensions they are almost identical to DIN 6372 C-Washers.
