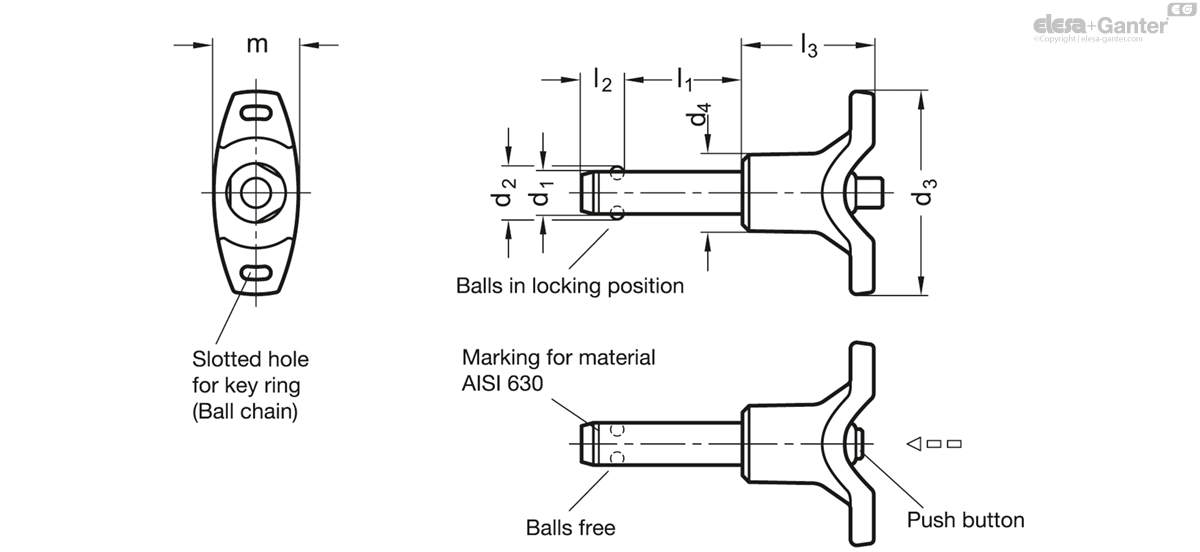

GN 113.8Stainless Steel-Ball lock pins

Stainless Steel-Ball lock pins

AISI 630, with plastic T-Handle

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

GN 113.8

Catalogue
d1 -0.04/-0.08
l1 +0.6
d2
d3
d4
l2 ±0.2
l2 ±1
l3
m
Location
bore H11
Load F in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength)
5
10
5.5
40
13.5
6
25
15.5
5
24
14
5
15
5.5
40
13.5
6
25
15.5
5
24
14
5
20
5.5
40
13.5
6
25
15.5
5
24
15
5
25
5.5
40
13.5
6
25
15.5
5
24
16
5
30
5.5
40
13.5
6
25
15.5
5
24
17
5
35
5.5
40
13.5
6
25
15.5
5
24
17
5
40
5.5
40
13.5
6
25
15.5
5
24
18
5
45
5.5
40
13.5
6
25
15.5
5
24
18
5
50
5.5
40
13.5
6
25
15.5
5
24
19
5
60
5.5
40
13.5
6
25
15.5
5
24
20
5
70
5.5
40
13.5
6
25
15.5
5
24
22
5
80
5.5
40
13.5
6
25
15.5
5
24
23
6
10
7
40
13.5
7.1
25
15.5
6
35
15
6
15
7
40
13.5
7.1
25
15.5
6
35
16
6
20
7
40
13.5
7.1
25
15.5
6
35
16
6
25
7
40
13.5
7.1
25
15.5
6
35
17
6
30
7
40
13.5
7.1
25
15.5
6
35
18
6
35
7
40
13.5
7.1
25
15.5
6
35
20
6
40
7
40
13.5
7.1
25
15.5
6
35
21
6
45
7
40
13.5
7.1
25
15.5
6
35
22
6
50
7
40
13.5
7.1
25
15.5
6
35
23
6
60
7
40
13.5
7.1
25
15.5
6
35
24
6
70
7
40
13.5
7.1
25
15.5
6
35
26
6
80
7
40
13.5
7.1
25
15.5
6
35
28
8
10
9.5
48
18
8.2
31
20.5
8
63
35
8
15
9.5
48
18
8.2
31
20.5
8
63
37
8
20
9.5
48
18
8.2
31
20.5
8
63
39
8
25
9.5
48
18
8.2
31
20.5
8
63
40
8
30
9.5
48
18
8.2
31
20.5
8
63
43
8
35
9.5
48
18
8.2
31
20.5
8
63
45
8
40
9.5
48
18
8.2
31
20.5
8
63
46
8
45
9.5
48
18
8.2
31
20.5
8
63
48
8
50
9.5
48
18
8.2
31
20.5
8
63
50
8
60
9.5
48
18
8.2
31
20.5
8
63
53
8
70
9.5
48
18
8.2
31
20.5
8
63
57
8
80
9.5
48
18
8.2
31
20.5
8
63
61
8
90
9.5
48
18
8.2
31
20.5
8
63
64
8
100
9.5
48
18
8.2
31
20.5
8
63
68
10
15
12
48
18
9.6
31
20.5
10
100
42
10
20
12
48
18
9.6
9.6
31
20.5
10
100
46
10
25
12
48
18
9.6
31
20.5
10
100
48
10
30
12
48
18
9.6
31
20.5
10
100
52
10
35
12
48
18
9.6
31
20.5
10
100
54
10
40
12
48
18
9.6
31
20.5
10
100
57
10
45
12
48
18
9.6
31
20.5
10
100
60
10
50
12
48
18
9.6
31
20.5
10
100
63
10
60
12
48
18
9.6
31
20.5
10
100
69
10
70
12
48
18
9.6
31
20.5
10
100
74
10
80
12
48
18
9.6
31
20.5
10
100
80
10
90
12
48
18
9.6
31
20.5
10
100
86
10
100
12
48
18
9.6
31
20.5
10
100
92
10
110
12
48
18
9.6
31
20.5
10
100
98
10
120
12
48
18
9.6
31
20.5
10
100
104
12
20
14.5
58
24
10.6
36.5
27.5
12
144
89
12
25
14.5
58
24
10.6
36.5
27.5
12
144
94
12
30
14.5
58
24
10.6
36.5
27.5
12
144
98
12
35
14.5
58
24
10.6
36.5
27.5
12
144
103
12
40
14.5
58
24
10.6
36.5
27.5
12
144
107
12
45
14.5
58
24
10.6
36.5
27.5
12
144
111
12
50
14.5
58
24
10.6
36.5
27.5
12
144
115
12
60
14.5
58
24
10.6
36.5
27.5
12
144
124
12
70
14.5
58
24
10.6
36.5
27.5
12
144
132
12
80
14.5
58
24
10.6
36.5
27.5
12
144
141
12
90
14.5
58
24
10.6
36.5
27.5
12
144
149
12
100
14.5
58
24
10.6
36.5
27.5
12
144
157
12
110
14.5
58
24
10.6
36.5
27.5
12
144
166
12
120
14.5
58
24
10.6
36.5
27.5
12
144
175
16
30
19
58
24
14
36.5
27.5
16
257
130
16
35
19
58
24
14
36.5
27.5
16
257
138
16
40
19
58
24
14
36.5
27.5
16
257
146
16
45
19
58
24
14
36.5
27.5
16
257
153
16
50
19
58
24
14
36.5
27.5
16
257
166
16
60
19
58
24
14
36.5
27.5
16
257
176
16
70
19
58
24
14
36.5
27.5
16
257
192
16
80
19
58
24
14
36.5
27.5
16
257
206
16
90
19
58
24
14
36.5
27.5
16
257
226
16
100
19
58
24
14
36.5
27.5
16
257
242
16
110
19
58
24
14
36.5
27.5
16
257
258
16
120
19
58
24
14
36.5
27.5
16
257
273
16
130
19
58
24
14
36.5
27.5
16
257
289
16
140
19
58
24
14
36.5
27.5
16
257
305
16
150
19
58
24
14
36.5
27.5
16
257
320
20
50
25
80
34
20.5
46.5
38
20
403
306
20
60
25
80
34
20.5
46.5
38
20
403
324
20
70
25
80
34
20.5
46.5
38
20
403
354
20
80
25
80
34
20.5
46.5
38
20
403
373
20
90
25
80
34
20.5
46.5
38
20
403
403
20
100
25
80
34
20.5
46.5
38
20
403
225
20
110
25
80
34
20.5
46.5
38
20
403
421
20
120
25
80
34
20.5
46.5
38
20
403
451
20
130
25
80
34
20.5
46.5
38
20
403
500
20
140
25
80
34
20.5
46.5
38
20
403
523
20
150
25
80
34
20.5
46.5
38
20
403
548
25
50
30.8
80
34
22
46.5
38
25
631
404
25
60
30.8
80
34
22
46.5
38
25
631
442
25
70
30.8
80
34
22
46.5
38
25
631
480
25
80
30.8
80
34
22
46.5
38
25
631
516
25
90
30.8
80
34
22
46.5
38
25
631
557
25
100
30.8
80
34
22
46.5
38
25
631
594
25
110
30.8
80
34
22
46.5
38
25
631
633
25
120
30.8
80
34
22
46.5
38
25
631
671
25
130
30.8
80
34
22
46.5
38
25
631
709
25
140
30.8
80
34
22
46.5
38
25
631
746
25
150
30.8
80
34
22
46.5
38
25
631
786

Pin Stainless Steel AISI 630

  • precipitation-hardened
  • hard coated

T-Handle

Plastic (Polyamide PA)

  • black
  • temperature resistant up to 80 °C

Balls

Stainless Steel AISI 420C

Spring

Stainless Steel

German Material No. 14565

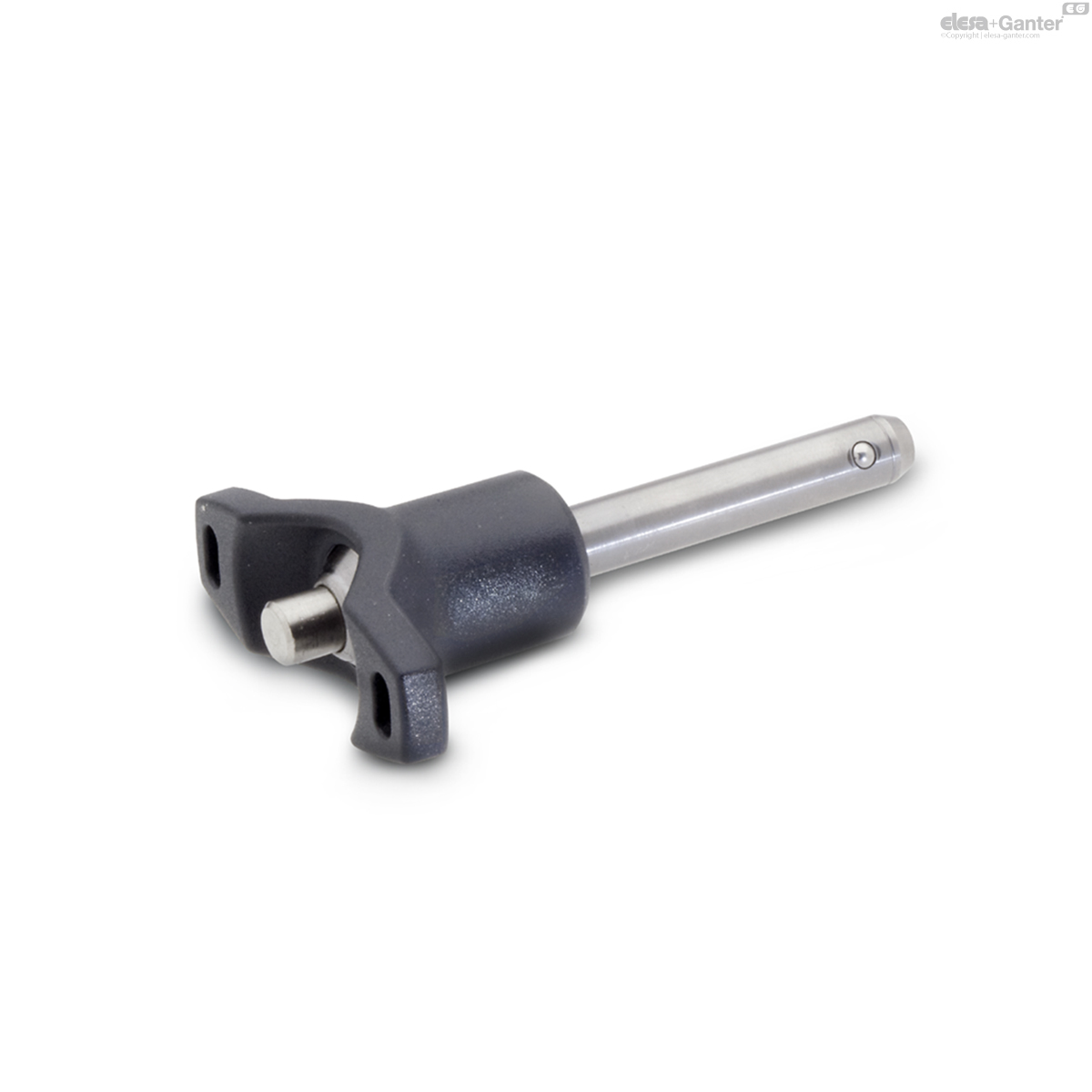

Stainless Steel-Ball lock pins GN 113.8 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

Ball lock pins GN 113.8 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.

The load values given in the above table at shar stress are theoretically obtained and indicative only. They are non-binding recommended values and rule out of any liability. They consstitute no general warranty of quality and condition. The user must determine from case to case whether a product ist suitable for the intended use.
