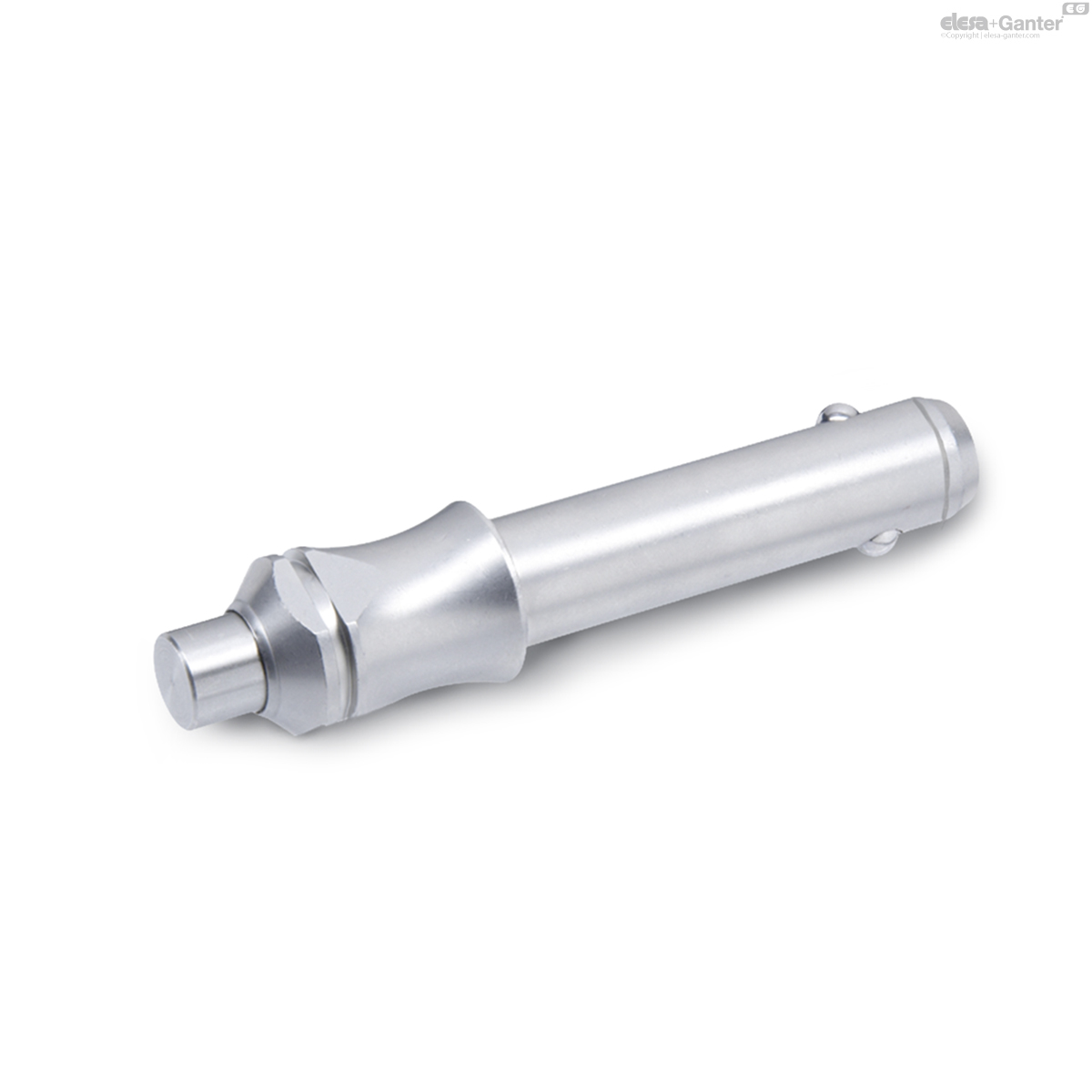

GN 113.6Stainless Steel-Ball lock pins

Stainless Steel-Ball lock pins

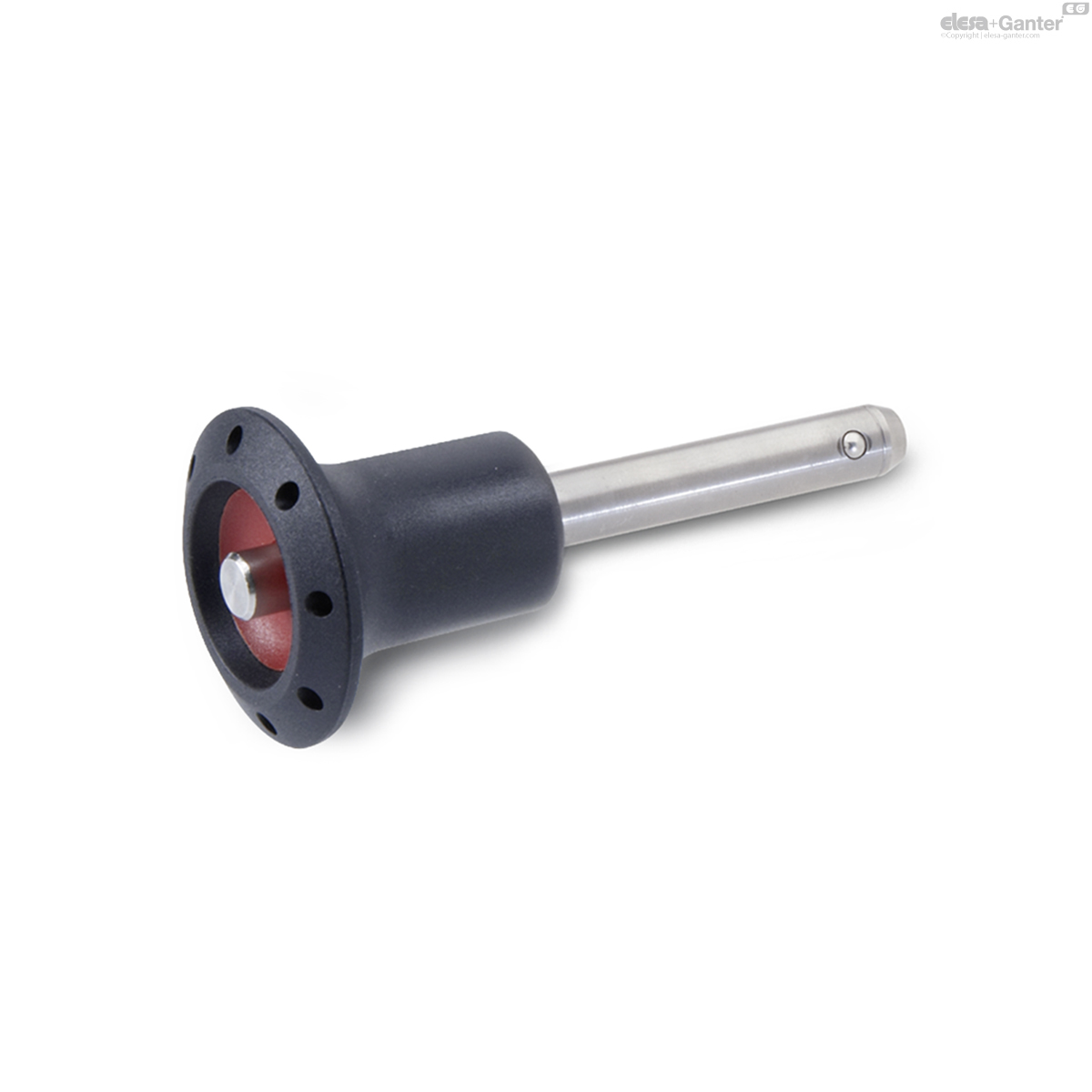

AISI 630, with plastic-knob

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

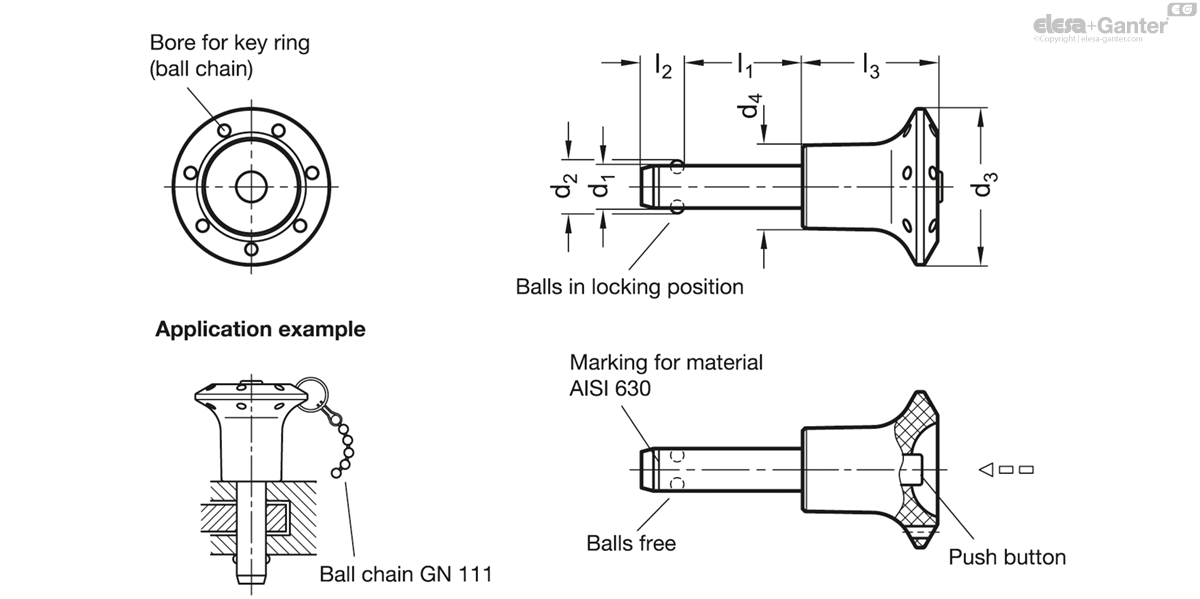

GN 113.6

Catalogue
d1 -0.04/-0.08
l1 +0.6
d2
d3
d4
l2 ±1
l3 -0.2
Location
bore H11
Load F in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength)
5
10
5.5
30
16
6
26
5
24
17
5
15
5.5
30
16
6
26
5
24
17
5
20
5.5
30
16
6
26
5
24
18
5
25
5.5
30
16
6
26
5
24
19
5
30
5.5
30
16
6
26
5
24
20
5
35
5.5
30
16
6
26
5
24
20
5
40
5.5
30
16
6
26
5
24
21
5
45
5.5
30
16
6
26
5
24
21
5
50
5.5
30
16
6
26
5
24
22
5
60
5.5
30
16
6
26
5
24
23
5
70
5.5
30
16
6
26
5
24
25
5
80
5.5
30
16
6
26
5
24
26
6
10
7
30
16
7.1
26
6
35
18
6
15
7
30
16
7.1
26
6
35
19
6
20
7
30
16
7.1
26
6
35
19
6
25
7
30
16
7.1
26
6
35
20
6
30
7
30
16
7.1
26
6
35
21
6
35
7
30
16
7.1
26
6
35
23
6
40
7
30
16
7.1
26
6
35
24
6
45
7
30
16
7.1
26
6
35
25
6
50
7
30
16
7.1
26
6
35
26
6
60
7
30
16
7.1
26
6
35
27
6
70
7
30
16
7.1
26
6
35
29
6
80
7
30
16
7.1
26
6
35
31
8
10
9.5
35
16
8.2
32.5
8
63
38
8
15
9.5
35
19
8.2
32.5
8
63
40
8
20
9.5
35
19
8.2
32.5
8
63
42
8
25
9.5
35
19
8.2
32.5
8
63
43
8
30
9.5
35
19
8.2
32.5
8
63
46
8
35
9.5
35
19
8.2
32.5
8
63
48
8
40
9.5
35
19
8.2
32.5
8
63
49
8
45
9.5
35
19
8.2
32.5
8
63
51
8
50
9.5
35
19
8.2
32.5
8
63
53
8
60
9.5
35
19
8.2
32.5
8
63
56
8
70
9.5
35
19
8.2
32.5
8
63
60
8
80
9.5
35
19
8.2
32.5
8
63
64
8
90
9.5
35
19
8.2
32.5
8
63
67
8
100
9.5
35
19
8.2
32.5
8
63
71
10
15
12
35
19
9.6
32.5
10
100
45
10
20
12
35
19
9.6
32.5
10
100
49
10
25
12
35
19
9.6
32.5
10
100
51
10
30
12
35
19
9.6
32.5
10
100
55
10
35
12
35
19
9.6
32.5
10
100
57
10
40
12
35
19
9.6
32.5
10
100
60
10
45
12
35
19
9.6
32.5
10
100
63
10
50
12
35
19
9.6
32.5
10
100
66
10
60
12
35
19
9.6
32.5
10
100
72
10
70
12
35
19
9.6
32.5
10
100
77
10
80
12
35
19
9.6
32.5
10
100
83
10
90
12
35
19
9.6
32.5
10
100
89
10
100
12
35
19
9.6
32.5
10
100
95
10
110
12
35
19
9.6
32.5
10
100
101
10
120
12
35
19
9.6
32.5
10
100
107
12
20
14.5
42
25
10.6
39
12
144
93
12
25
14.5
42
25
10.6
39
12
144
98
12
30
14.5
42
25
10.6
39
12
144
102
12
35
14.5
42
25
10.6
39
12
144
107
12
40
14.5
42
25
10.6
39
12
144
111
12
45
14.5
42
25
10.6
39
12
144
115
12
50
14.5
42
25
10.6
39
12
144
119
12
60
14.5
42
25
10.6
39
12
144
128
12
70
14.5
42
25
10.6
39
12
144
136
12
80
14.5
42
25
10.6
39
12
144
145
12
90
14.5
42
25
10.6
39
12
144
153
12
100
14.5
42
25
10.6
39
12
144
161
12
110
14.5
42
25
10.6
39
12
144
170
12
120
14.5
42
25
10.6
39
12
144
179
16
30
19
42
25
14
39
16
257
134
16
35
19
42
25
14
39
16
257
142
16
40
19
42
25
14
39
16
257
150
16
45
19
42
25
14
39
16
257
157
16
50
19
42
25
14
39
16
257
170
16
60
19
42
25
14
39
16
257
180
16
70
19
42
25
14
39
16
257
196
16
80
19
42
25
14
39
16
257
210
16
90
19
42
25
14
39
16
257
230
16
100
19
42
25
14
39
16
257
246
16
110
19
42
25
14
39
16
257
262
16
120
19
42
25
14
39
16
257
277
16
130
19
42
25
14
39
16
257
293
16
140
19
42
25
14
39
16
257
309
16
150
19
42
25
14
39
16
257
324

Pin Stainless Steel AISI 630

precipitation-hardened

Knob

Plastic (Polyamide PA)

  • black-grey / red
  • temperature resistant up to 80 °C

Balls

Stainless Steel AISI 420C

Spring

German Material No. 1.4565

Stainless Steel-Ball lock pins GN 113.6 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

Related products
Steel

DIN 172-ST

Guide Bushings Steel / Stainless Steel, Drill Bushings, with Collar
Steel

DIN 179-ST

Guide Bushings Steel / Stainless Steel, Drill Bushings, without Collar
Spiral Retaining Cables

GN 111.4

Spiral Retaining Cables Plastic, with Two Key Rings
Ball Chains

GN 111.5

Ball Chains Stainless Steel, with Two Key Rings
Stainless Steel-Ball lock pins

GN 113.4

Stainless Steel-Ball lock pins AISI 630, with hollow for grip
Stainless Steel-Ball lock pins

GN 113.5

Stainless Steel-Ball lock pins AISI 303, with plastic-knob
Stainless Steel-Ball lock pins

GN 113.8

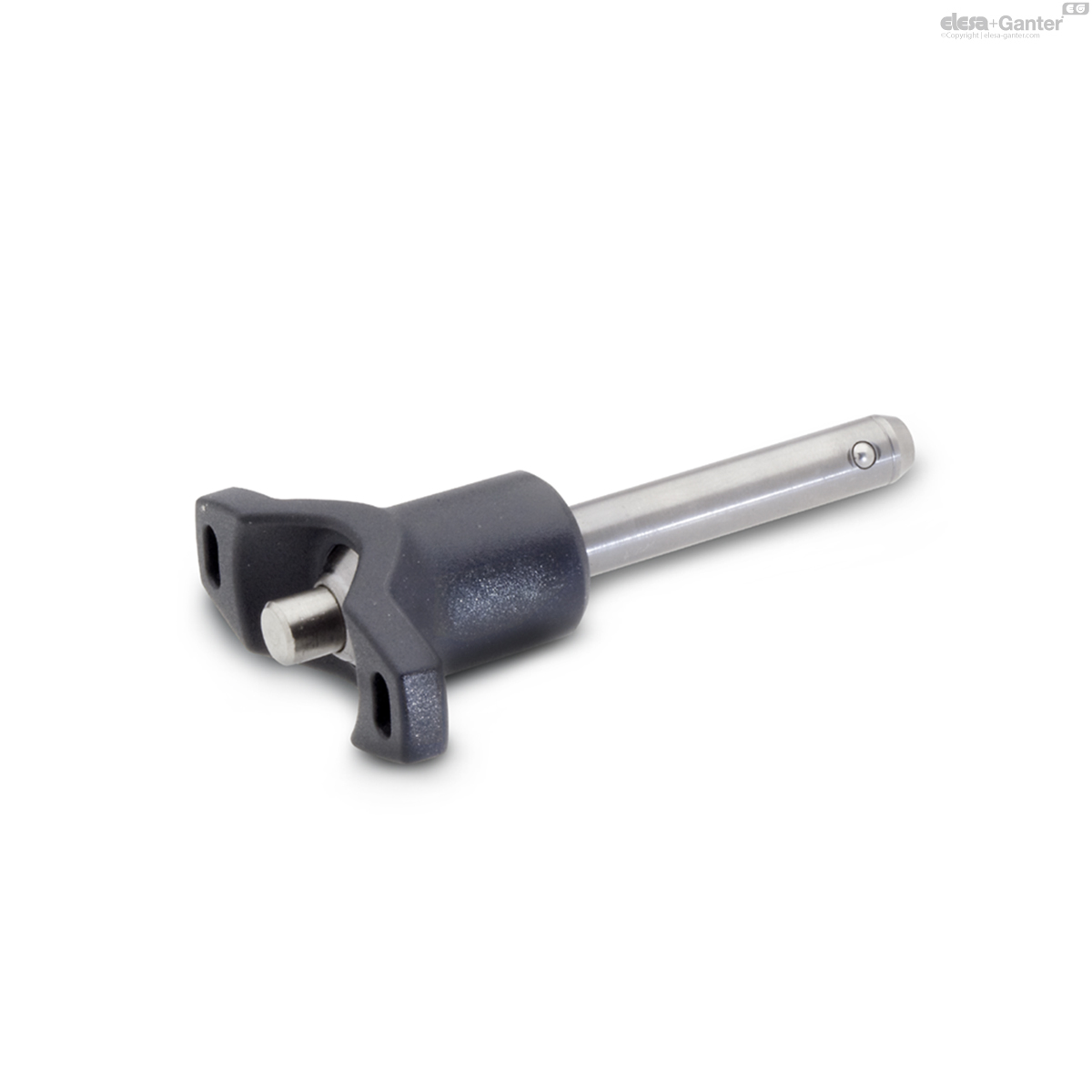

Stainless Steel-Ball lock pins AISI 630, with plastic T-Handle
