Technical datasheet
GN 1024-NISpring cotter pins
Stainless Steel
Steel / Stainless Steel
GN 1024-NI
|
Catalogue
|

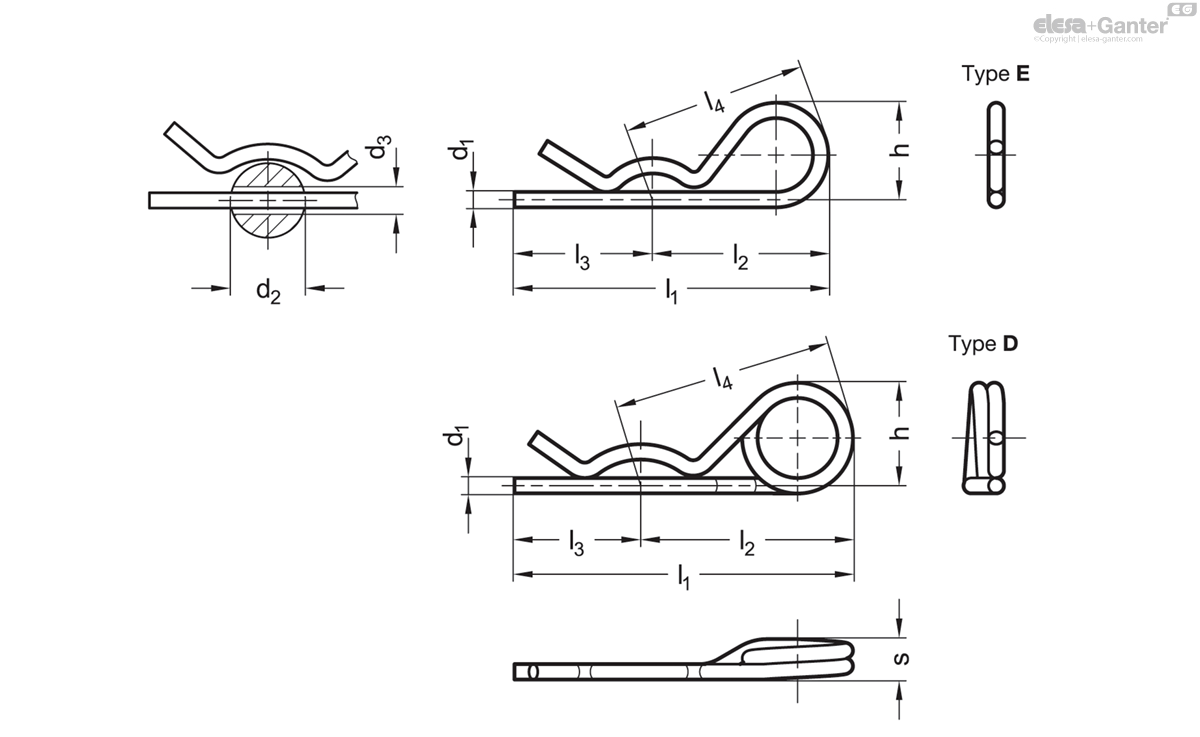

d1
|
d2
|
d3
|
h
|
l1
|
l2
|
l3
|
l4
|
s
|
Load in N ≈
Mounting |
Load in N ≈
Dismantling |
Load in N ≈
for bolt Ø |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.5
|
7 ... 12
|
2
|
9
|
45
|
25
|
20
|
25
|
-
|
9
|
8
|
8
| ||
|
2
|
9 ... 14
|
2.5
|
13
|
57
|
32
|
25
|
34
|
-
|
14
|
9
|
12
| ||
|
3
|
10 ... 16
|
3.5
|
23
|
72
|
42
|
30
|
44
|
-
|
55
|
40
|
16
| ||
|
4
|
16 ... 20
|
4.5
|
27
|
74
|
44
|
30
|
48
|
-
|
210
|
170
|
20
| ||
|
5
|
20 ... 28
|
5.5
|
32
|
102
|
57
|
45
|
61
|
-
|
280
|
210
|
25
| ||
|
6
|
28 ... 40
|
6.5
|
42
|
126
|
73
|
53
|
77
|
-
|
240
|
150
|
30
| ||
|
2
|
8 ... 14
|
2.5
|
14
|
56
|
31
|
25
|
33
|
5.5
|
10
|
9
|
12
| ||
|
3
|
14 ... 20
|
3.5
|
22
|
73
|
43
|
30
|
47
|
8
|
35
|
28
|
16
| ||
|
4
|
17 ... 24
|
4.5
|
32
|
94
|
58
|
36
|
62
|
10.5
|
50
|
35
|
20
| ||
|
5
|
18 ... 30
|
5.5
|
35
|
110
|
70
|
40
|
73
|
13.5
|
100
|
95
|
25
| ||
|
6
|
24 ... 36
|
6.5
|
41
|
142
|
85
|
57
|
90
|
16
|
190
|
125
|
30
|
Types
- Type E: with single winding
- Type D: with double winding

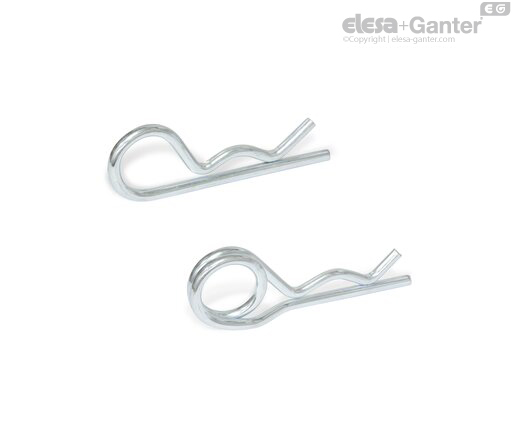

Version in Steel ST
zinc plated, blue passivated

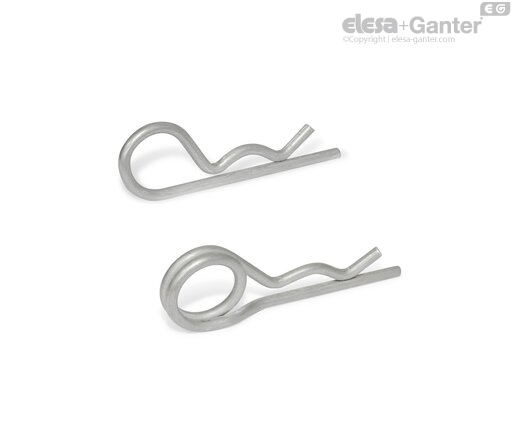

Version in Stainless Steel NI
AISI 301
Spring cotter pins GN 1024 are used for the axial fixing of bolts and axes and as distortion guard, e.g. for crown nuts DIN 935.
Owing to their double winding, spring cotter pins of Type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope inclding a key ring can be attached to the double winding to safeguard the spring cotter pins against loss.
