SFP-BA+F-NBreather caps

With air filter, bayonet connection, without the wording “OIL”

with splash guard, technopolymer

  • Icons/__logo__PA__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
With air filter, bayonet connection, without the wording “OIL”
With air filter, bayonet connection, without the wording “OIL” With air filter, bayonet connection, without the wording “OIL” With air filter, bayonet connection, without the wording “OIL”
With air filter, bayonet connection, without the wording “OIL”
SFP-BA+F-N
With air filter, bayonet connection, without the wording “OIL”
With “tech-foam” air filter, with the wording “OIL”
SFP+F-FOAM
With “tech-foam” air filter, with the wording “OIL”
With “tech-fil” air filter, without the wording “OIL”
SFP+F-FIL-N
With “tech-fil” air filter, without the wording “OIL”
Without air filter, without 'OIL' mark
SFP-N
Without air filter, without 'OIL' mark
Without air filter, marked 'OIL'
SFP.
Without air filter, marked 'OIL'
With “tech-fil” air filter, with the wording “OIL”
SFP+F-FIL
With “tech-fil” air filter, with the wording “OIL”
With “tech-foam” air filter, without the wording “OIL”
SFP+F-FOAM-N
With “tech-foam” air filter, without the wording “OIL”

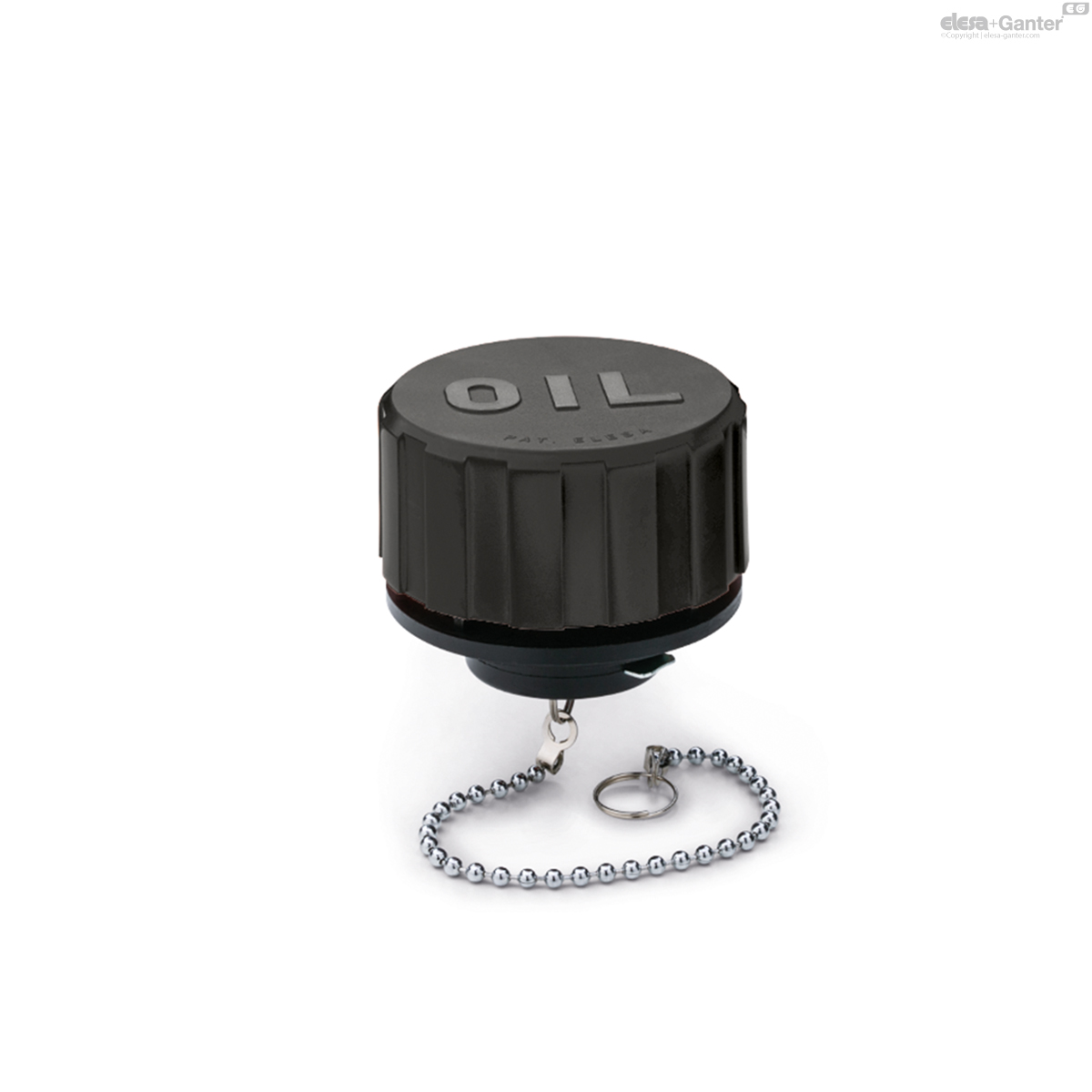

With air filter, bayonet connection, with the wording “OIL”
SFP-BA+F
With air filter, bayonet connection, with the wording “OIL”
C9 - RAL 9005
C2 - RAL 2004

SFP-BA+F-N

Reset
Catalogue

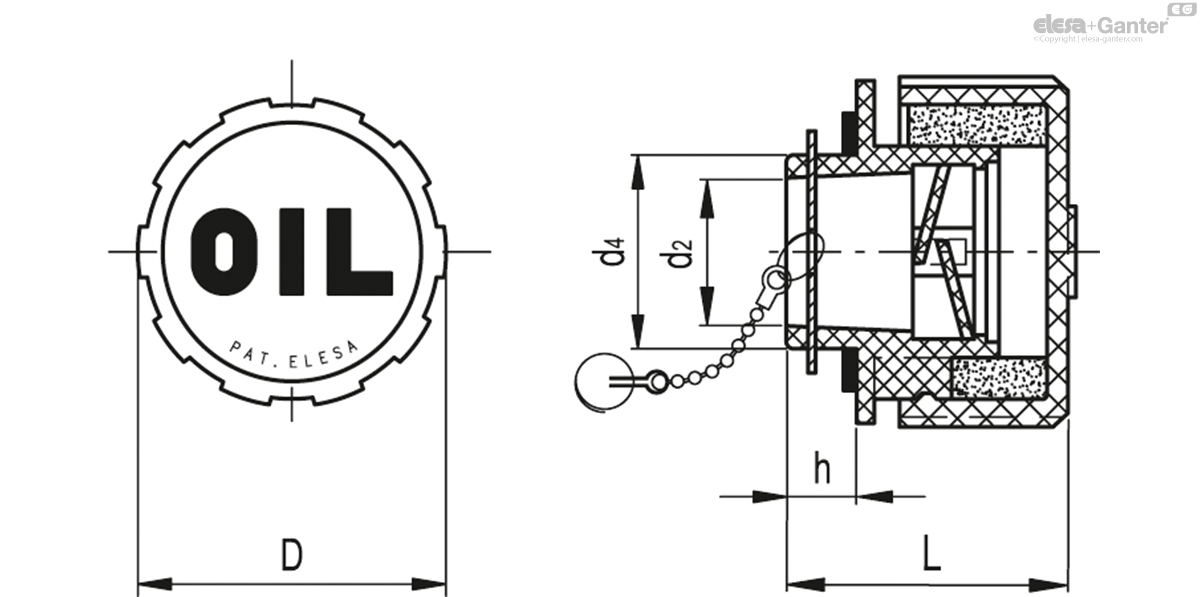

Description
D
L
d2
d4
h
54881-C2-N
SFP.70-BA+F FOAM-C2-N
70
56
30
39
14
93
# Types available on request with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20).
  • Icons/__logo__ELE_OD__.png
  • Icons/__logo__IF80__.png

Cover

Polyamide based (PA) technopolymer, semi-matte finish.

  • SFP......: RAL 2004 orange, marked 'OIL'.
  • SFP.....-C9: RAL 9005 black colour, marked 'OIL'.
  • SFP.....-C2-N: RAL 2004 orange, without 'OIL' mark.
  • SFP.....-C9-N: RAL 9005 black colour, without 'OIL' mark.

Threaded fitting

Polyamide based (PA) technopolymer, black colour, semi-matte finish.

Packing ring

NBR synthetic rubber.

Splash guard

Technopolymer.

Standard executions

  • SFP.: without air filter (black splash guard).
  • SFP+F-FIL: with 'tech-fil' air filter in zinc-plated steel wire (orange splash guard).
  • SFP+F-FOAM: with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).
  • SFP-BA+F: with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).

Zinc-plated steel sheet bayonet.

Chrome-plated steel safety chain.

Maximum continuous working temperature

100°C.

Features and applications

SFP. breather caps come complete with splash guard device (ELESA original design) that prevents oil loss and are particularly suitable for use where oil is violently agitated and could be splashed against breather cap.

Technical data

Air flow rate for each model can be determined from the graph calculating the difference between the pressure inside and outside the reservoir.




Special execution on request

Threaded connector also with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20) for the codes marked with # in the table.
