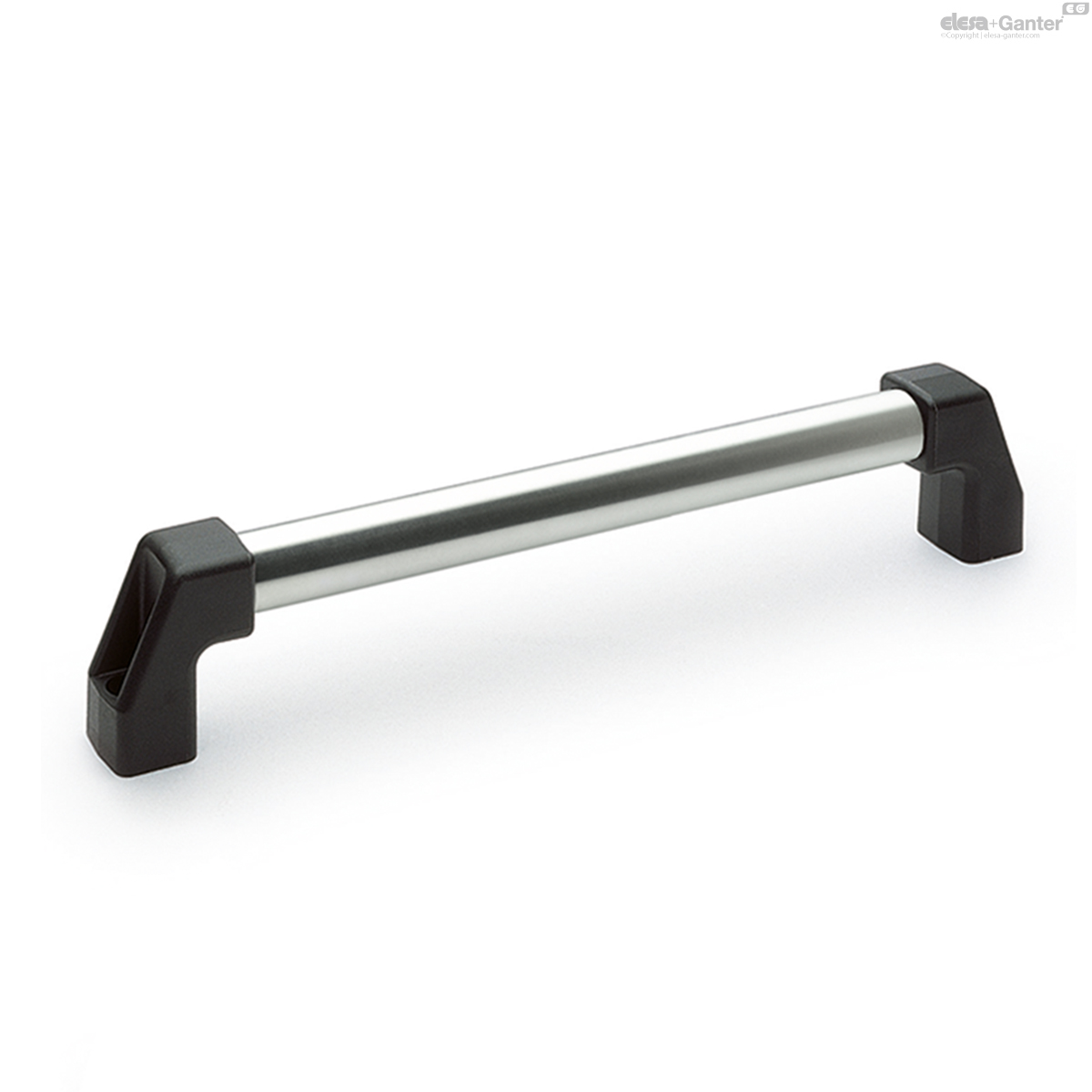

M.1043-BM-SSTTubular handles

Stainless steel tube, back mounting

Technopolymer, aluminium, stainless steel

Technical datasheet

M.1043-BM-SST

Stainless steel tube, back mounting

M.1043-BM-AN

Anodised aluminium tube, back mounting

M.1043-BM-EP

Aluminium tube with epoxy resin coating, back mounting

M.1043-SST

Stainless steel tube, front mounting

M.1043-AN

Anodised aluminium tube, front mounting

M.1043-EP

Aluminium tube with epoxy resin coating, front mounting

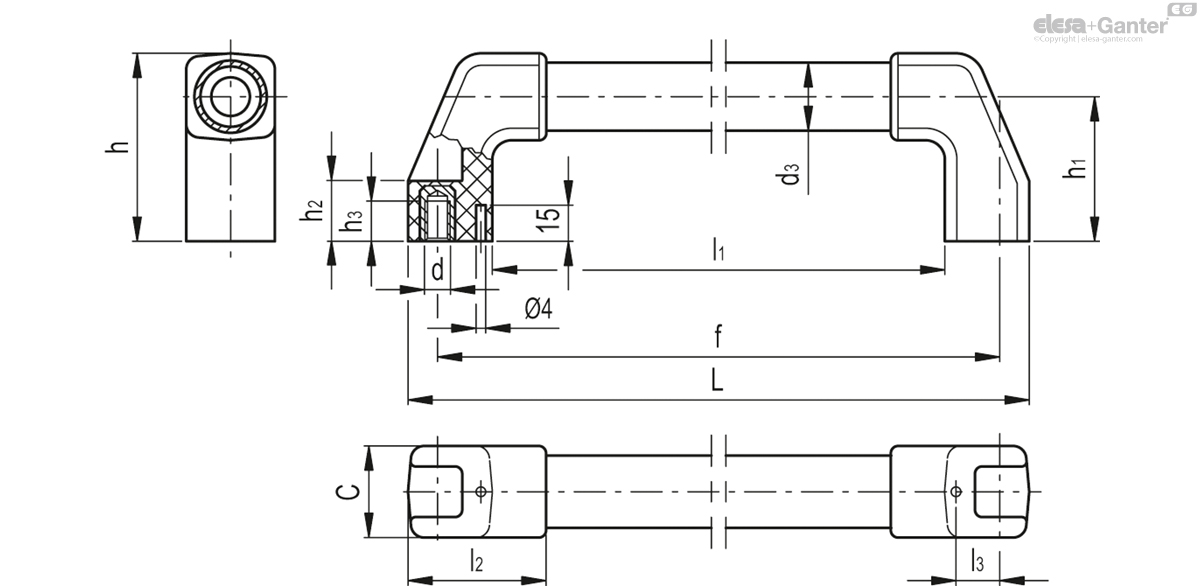

M.1043-BM-SST

Catalogue	Description	d₂	d₃	f_±1	L	d	h	h₁	h₂	h₃	l₁	l₂
37598-R	M.1043 BM/20-180-SST		20	180	200	M8	58	45	18	9.5	142	47
37604-R	M.1043 BM/20-200-SST	4	20	200	220	M8	58	45	18	9.5	162	47
37601-R	M.1043 BM/20-250-SST	4	20	250	270	M8	58	45	18	9.5	212	47
37600-R	M.1043 BM/20-300-SST	4	20	300	320	M8	58	45	18	10	262	47
37602-R	M.1043 BM/20-350-SST	4	20	350	370	M8	58	45	18	10	312	47
37603-R	M.1043 BM/20-400-SST	4	20	400	420	M8	58	45	18	10	362	47
37605-R	M.1043 BM/20-500-SST	4	20	500	520	M8	58	45	18	10	462	47
37607-R	M.1043 BM/20-600-SST	4	20	600	620	M8	58	45	18	10	562	47
37609-R	M.1043 BM/20-700-SST	4	20	700	720	M8	58	45	18	10	662	47
37608-R	M.1043 BM/30-180-SST	4	30	180	204	M10	78	60	25	15	134	57
37610-R	M.1043 BM/30-200-SST	4	30	200	224	M10	78	60	25	15	154	57
37614-R	M.1043 BM/30-250-SST	4	30	250	274	M10	78	60	25	15	204	57
37611-R	M.1043 BM/30-300-SST	4	30	300	324	M10	78	60	25	17	254	57
37612-R	M.1043 BM/30-350-SST	4	30	350	374	M10	78	60	25	17	304	57
37613-R	M.1043 BM/30-400-SST	4	30	400	424	M10	78	60	25	17	354	57
37615-R	M.1043 BM/30-500-SST	4	30	500	524	M10	78	60	25	17	454	57
37617-R	M.1043 BM/30-600-SST	4	30	600	624	M10	78	60	25	17	554	57
37619-R	M.1043 BM/30-700-SST	4	30	700	724	M10	78	60	25	17	654	57
37620-R	M.1043 BM/30-1000-SST	4	30	1000	1024	M10	78	60	25	17	954	57

* Maximum working load # Load at breakage (permanent deformation).

Handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. Supplied assembled. The handle shank connection to the tube avoids tube rotation.

Anti-rotation tube end plugs

NBR synthetic rubber.

Standard executions

Pass-through holes for cylindrical-head screws with hexagon socket.

M.1043-EP: aluminium tube, epoxy resin coating, metalflake graphite colour, matte finish. Highly resistant to wear, scratches and chemical agents. Avoid continuous and prolonged contact with boiling water or steam.
M.1043-AN: anodised aluminium tube, natural colour.
M.1043-SST: AISI 304 stainless steel tube.

Threaded blind holes.

M.1043-BM-EP: aluminium tube, epoxy resin coating, metalflake graphite colour, matte finish. Highly resistant to wear, scratches and chemical agents. Avoid continuous and prolonged contact with boiling water or steam.
M.1043 BM-AN: anodised aluminium tube, natural colour.
M.1043-BM-SST: AISI 304 stainless steel tube.

Technical data

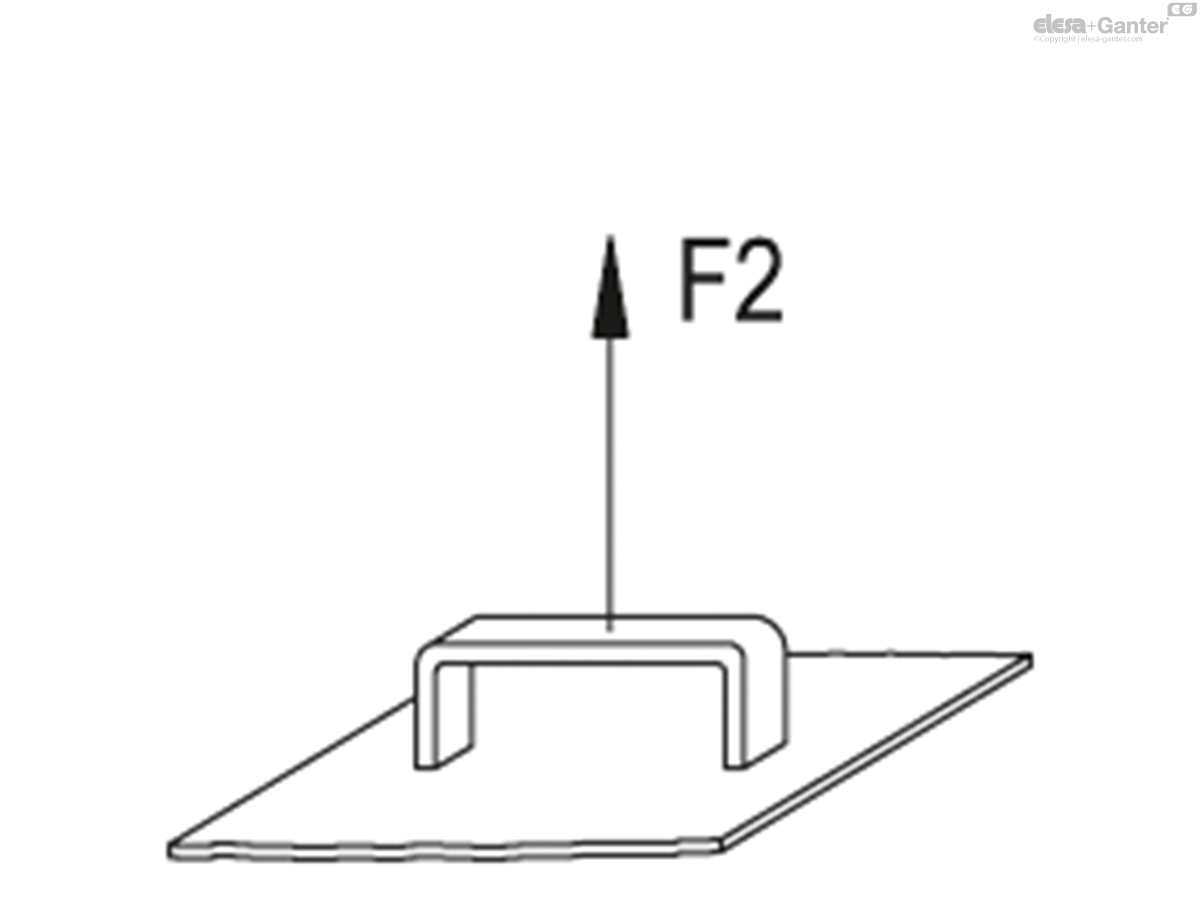

Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Accessories on request

DS-M.1043: spacer sleeves for side shank with connection for tube Ø30 in polyamide based (PA) technopolymer to increase the distance between the handle and the fitting surface (see table).
