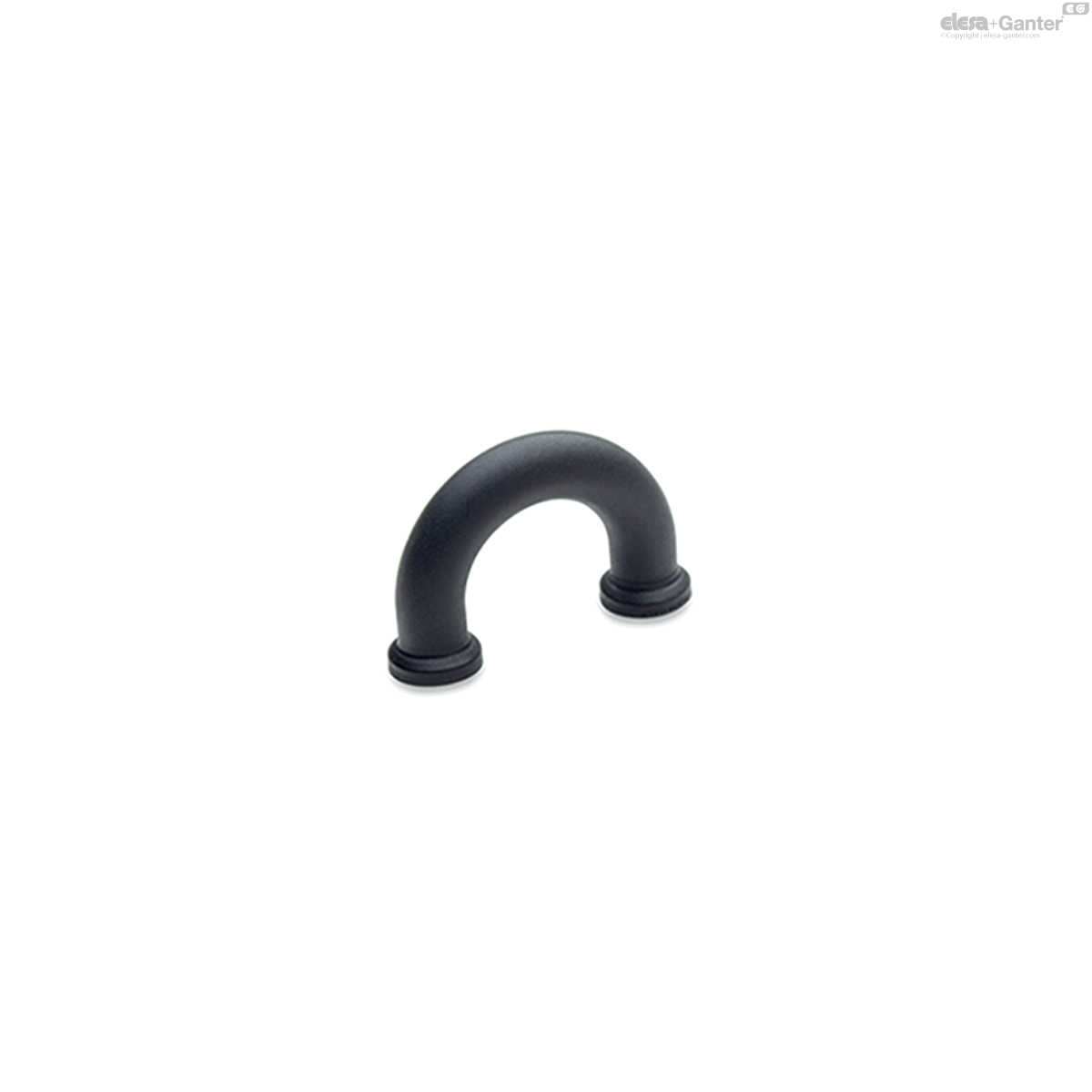

MFHFinger handles

Finger handles

Technopolymer

  • Icons/__logo__PA__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
Finger handles
Finger handles Finger handles
C3 - RAL 7035
C2 - RAL 2004
C9 - RAL 9005
C6 - RAL 3000

Reset
Catalogue
Description
l
d1
d2
h
F2
[N]
L1
[J]
138201-C6
MFH-30-AF 3,5-C6
29.5
9
12
27
2300
6
6
138221-C6
MFH-40-AF 3,5-C6
39.5
10
15
33.5
2300
10
20

Material

Polyamide based (PA) technopolymer, in 4 standard colours: black, orange, grey, red, matte finish.

Standard execution

Blind holes for fitting by means of no. 2 self-tapping screws for plastic materials Ø3.5 (UNI ISO 7049), not included in the supply.

Maximum tightening torque of the self-tapping screws 1,2 [Nm].

Technical data

Tensile stress and impact strength: the values F2 and L1 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
