Technical datasheet

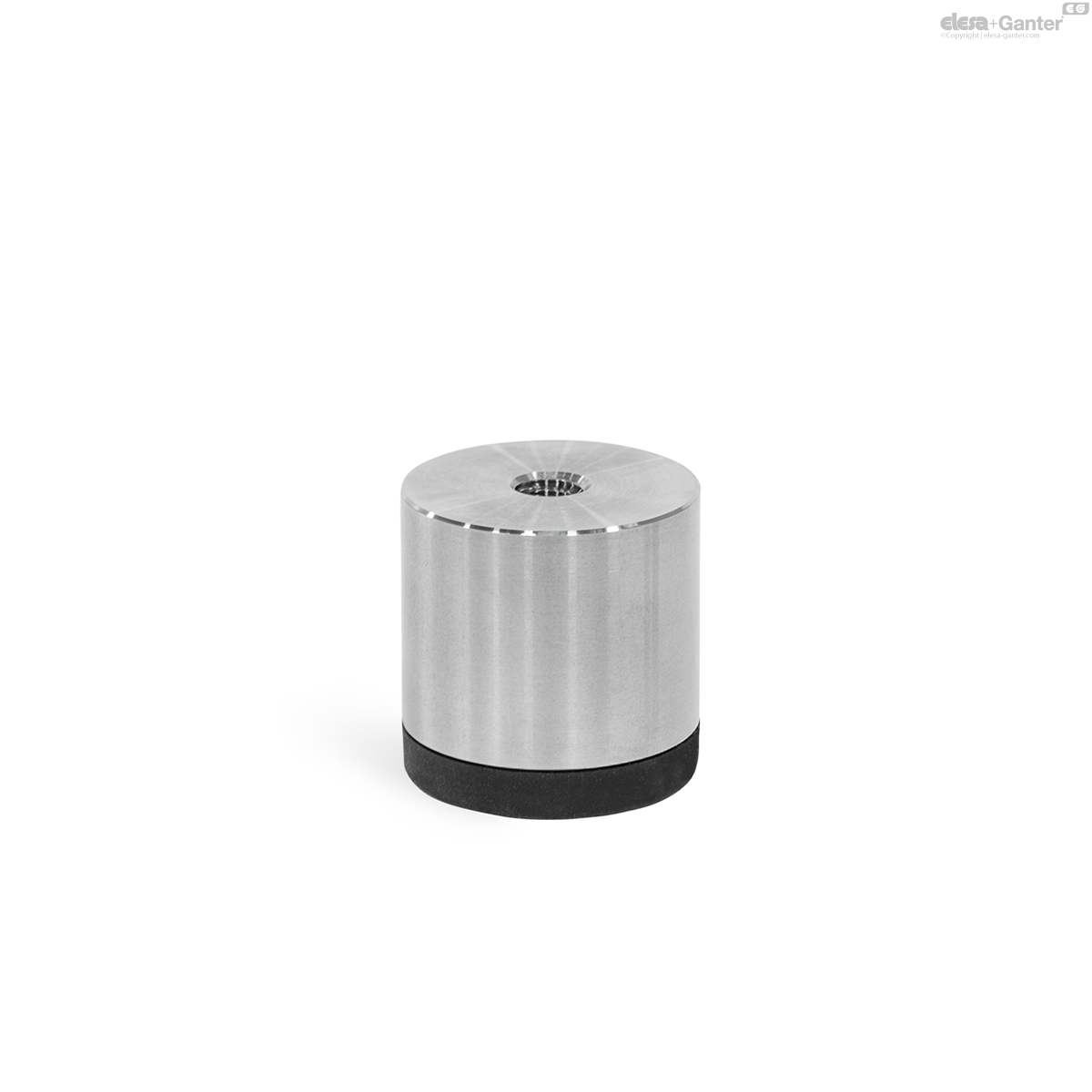

GN 440-A4Equipment Feet
Stainless steel
Aluminum / Stainless Steel, with Rubber Cap
GN 440-A4
|
Catalogue
|
d1
|
h1
|
d2
|
d3 Through hole for screw
|
h2
|
h3
|
t min.
|
Static load capacity in kN
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 440-16-16-M4-R-A4M
|
16
|
16
|
M 4
|
M 3
|
11
|
4
|
8
|
0.25
|
20
|
|
GN 440-16-24-M4-R-A4M
|
16
|
24
|
M 4
|
M 3
|
19
|
4
|
8
|
0.25
|
31
|
|
GN 440-20-20-M5-R-A4M
|
20
|
20
|
M 5
|
M 4
|
14
|
4
|
10
|
0.4
|
40
|
|
GN 440-20-30-M5-R-A4M
|
20
|
30
|
M 5
|
M 4
|
24
|
4
|
10
|
0.4
|
63
|
|
GN 440-25-25-M6-R-A4M
|
25
|
25
|
M 6
|
M 5
|
17
|
4.7
|
12
|
0.7
|
139
|
|
GN 440-25-40-M6-R-A4M
|
25
|
40
|
M 6
|
M 5
|
32
|
4.7
|
12
|
0.7
|
288
|
|
GN 440-32-32-M8-R-A4M
|
32
|
32
|
M 8
|
M 6
|
23
|
5.7
|
16
|
1.6
|
178
|
|
GN 440-32-50-M8-R-A4M
|
32
|
50
|
M 8
|
M 6
|
41
|
5.7
|
16
|
1.6
|
288
|
Type
Type
- Type R: With cover cap, non-slip
Base body
Base body
- Aluminum AL
- Turned, anodized, black S
- Stainless steel AISI 316L A4
- Turned M
Cover cap
Cover cap
Thermoplastic elastomer (TPE)
- Hardness ≈ 75 Shore A
- Black
Equipment feet GN 440 are used to set up devices, smaller machines, or fixtures, on worktops or tables. The non-slip cover cap increases stability, reduces wear on the underlying surface and covers the mounting hole from below.

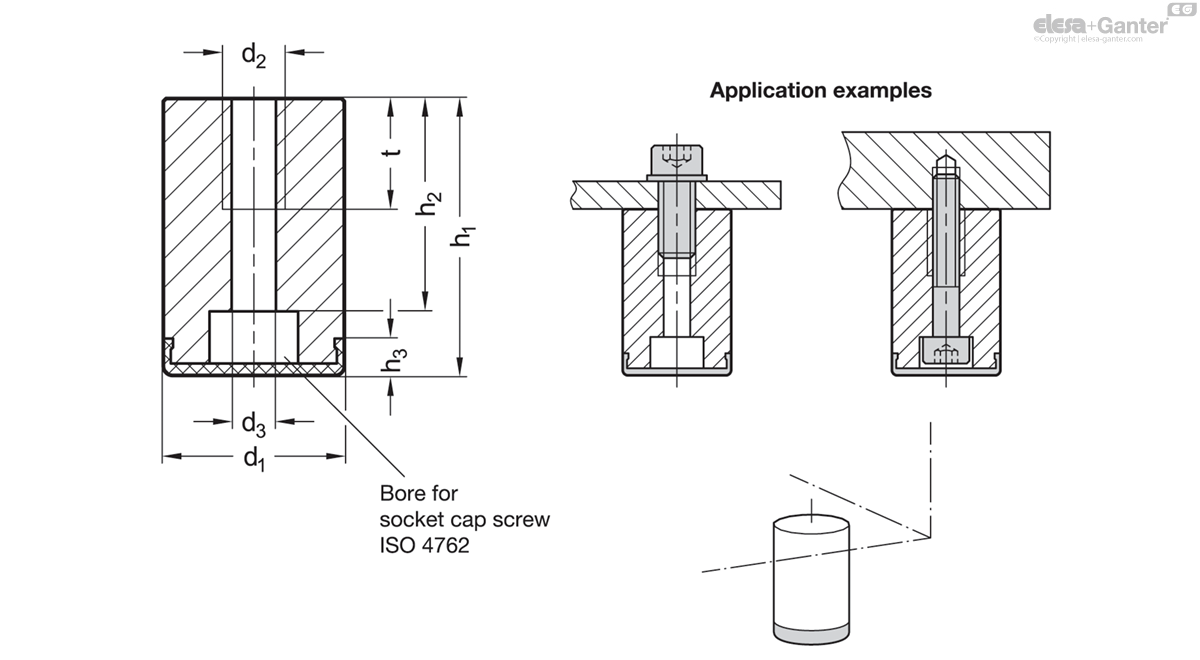

They can be installed either from above using the internal thread d2 or with a socket cap screw ISO 4762 from below using the through hole d3. The cover cap is packaged separately and reusable.

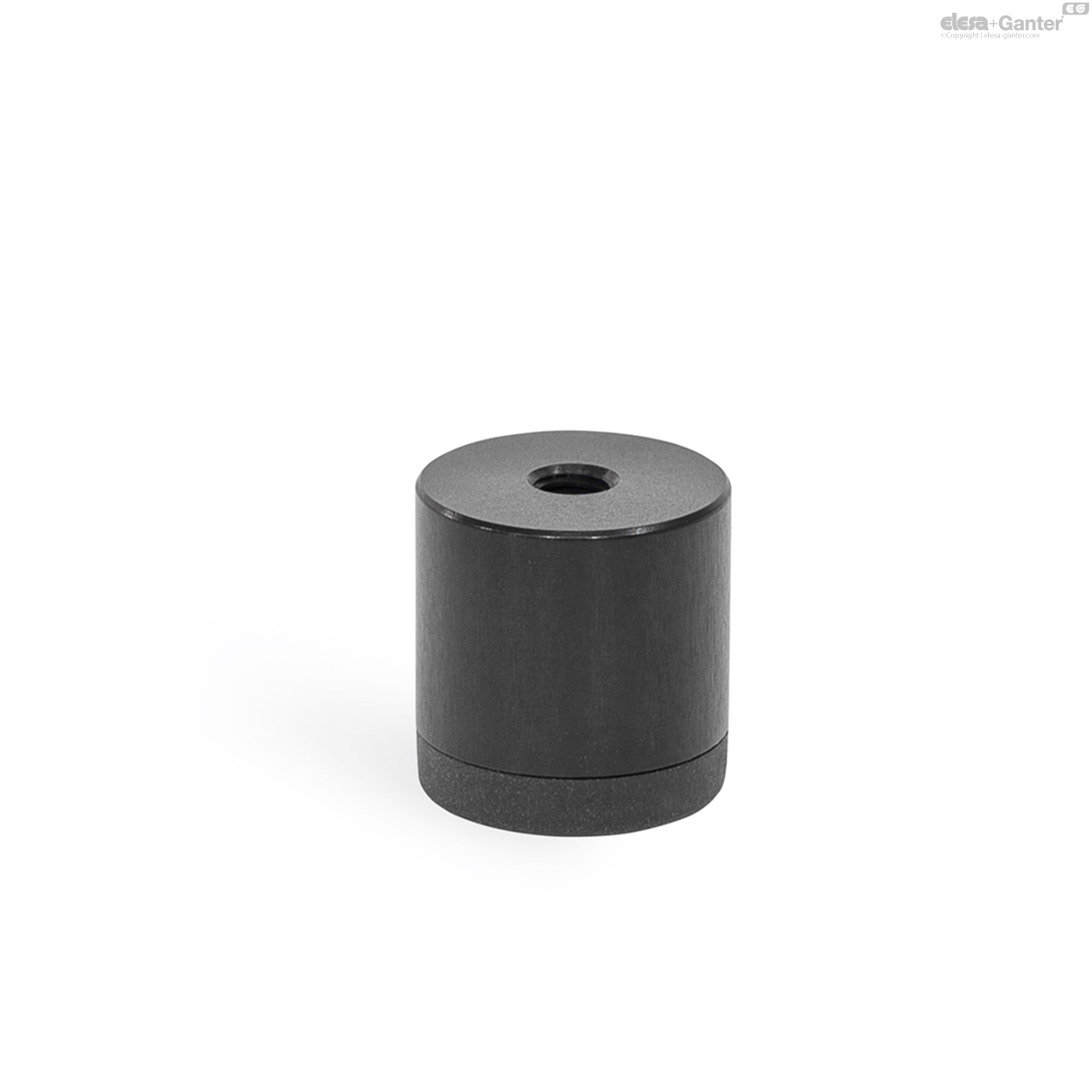

The black version ALS offers a discreet appearance and reduces surface reflections. The version A4M is particularly suitable for use in aggressive environments.
- d1 = 25 / 32 in stainless steel with ESD cover cap
Related products
GN 338
Discs with cover cap
as device bases, sliding guides, screw covers
GN 339
Levelling mount
Steel / Stainless Steel / Threaded stem, not adjustable
GN 438
Spacer disks and foot disks
with rubber underlay, vulcanized
GN 438.5

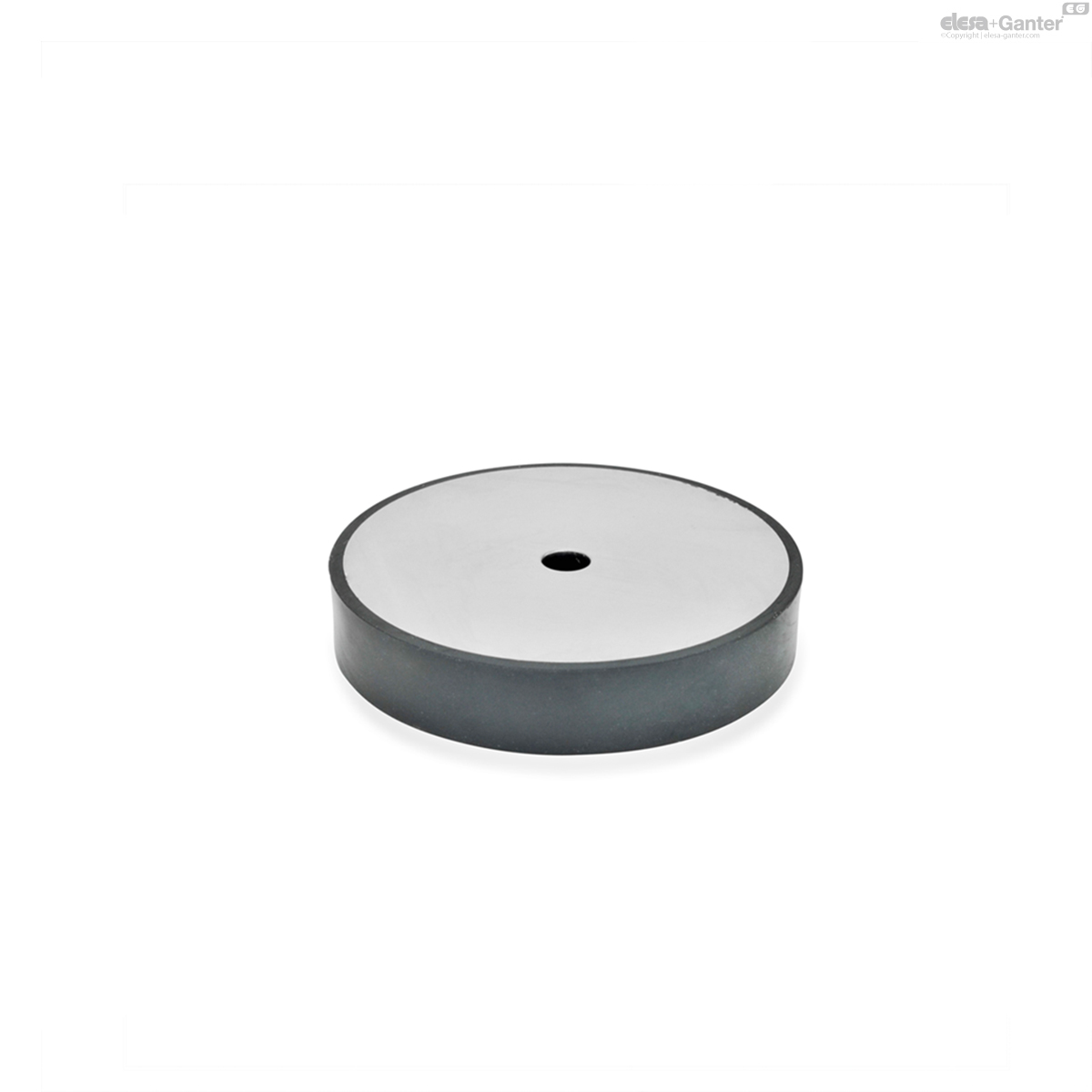

Stainless Steel-Spacer disks and foot disks
with rubber underlay, vulcanized
GN 439
Leveling feet
with rubber underlay, vulcanized
GN 439.5

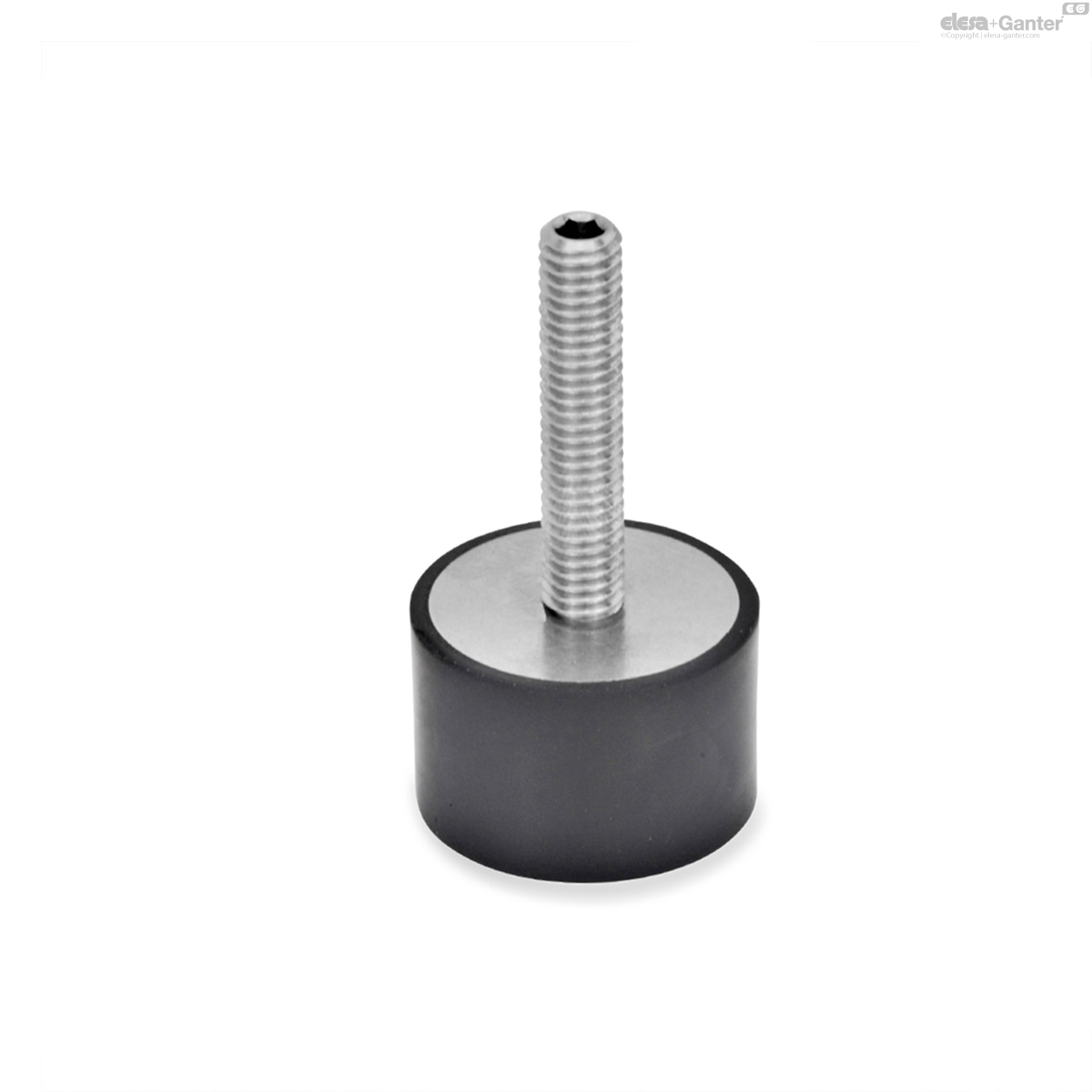

Stainless Steel-Levelling feet
