Technical datasheet

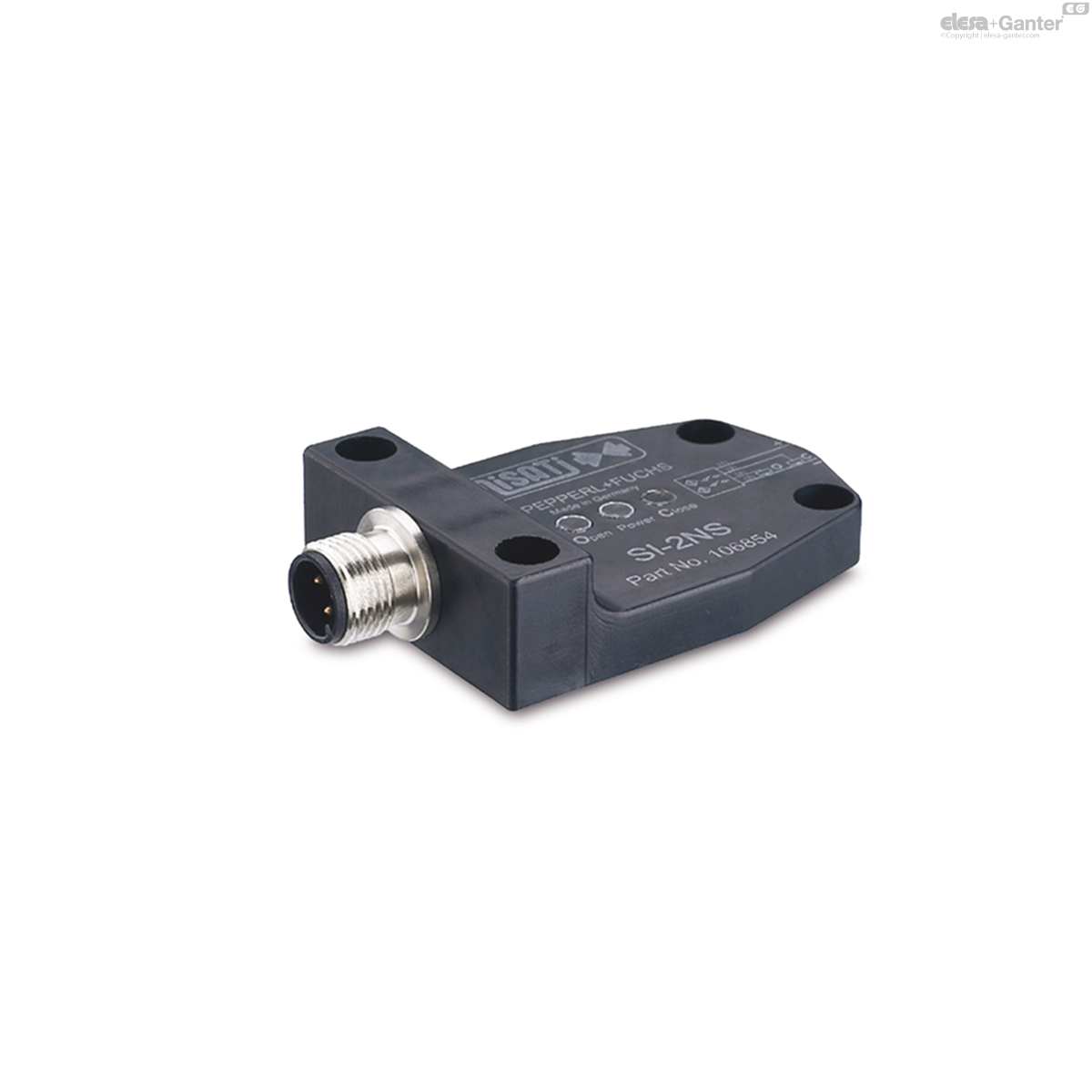

GN-893.2Proximity Switch
Proximity Switch
Plastic, for Power Clamps Size 32, Inductive Sensor
GN-893.2
|
Catalogue
|
Power clamps
|
Proximity switch
|

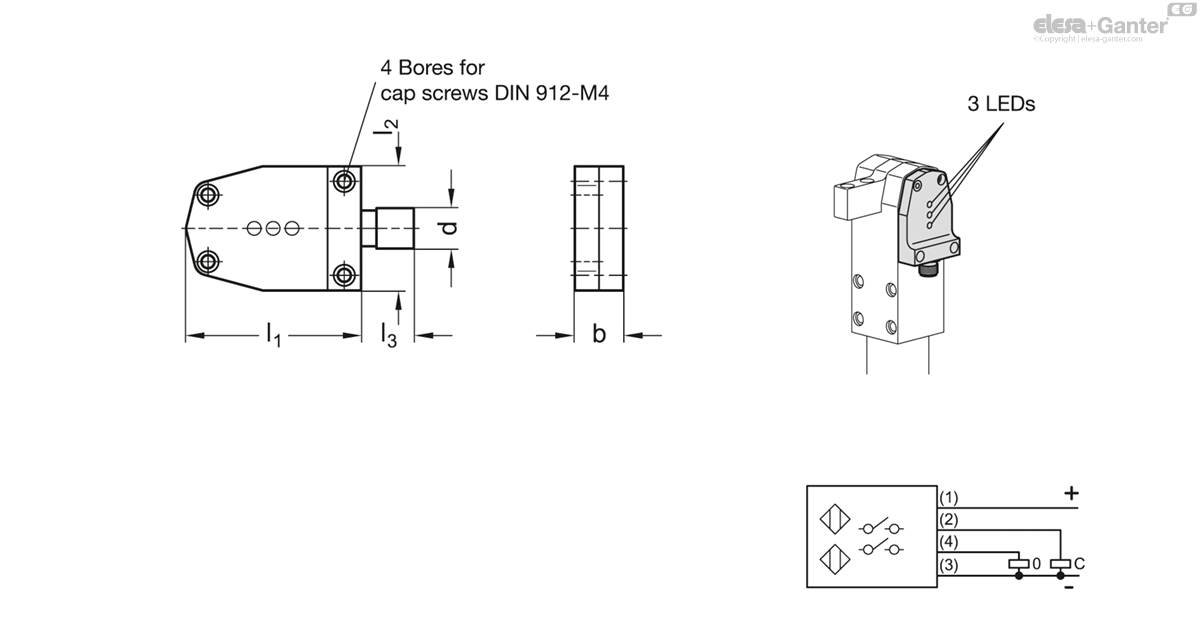

b
|
d Connector
4-pole |
l1 -0.2
|
l2
|
l3
|
|
|
|---|---|---|---|---|---|---|---|---|---|
|
GN 864-32-BL GN 865-32-BI GN 866-32-BC
|
GN 893.2
|
16
|
M 12 x 1
|
57.5
|
41
|
10
|
32
|
Housing
Plastic
Socket cap screws ISO 4762
Steel, blackened
Intermediate plate
Plastic
Voltage range 10 to 30 VDC
Switch load 0 to 100 mA
Voltage drop ≤ 2 V
Operating temperature 0° to +50 °C
Protection class IP 65
LED-Indication
- Green: Operating voltage
- Red: Switch position closed
- Yellow: Switch position open
With proximity switch GN 893.2 power clamps can induce controlled signals. They generally serve for querying the end positions. The LEDs indicate the operating and switch positions.
The proximity switches can be screwed directly on to the power clamps. The position of the switches can be on either side.
A plastic intermediate plate and two socket cap screws M4 are included.

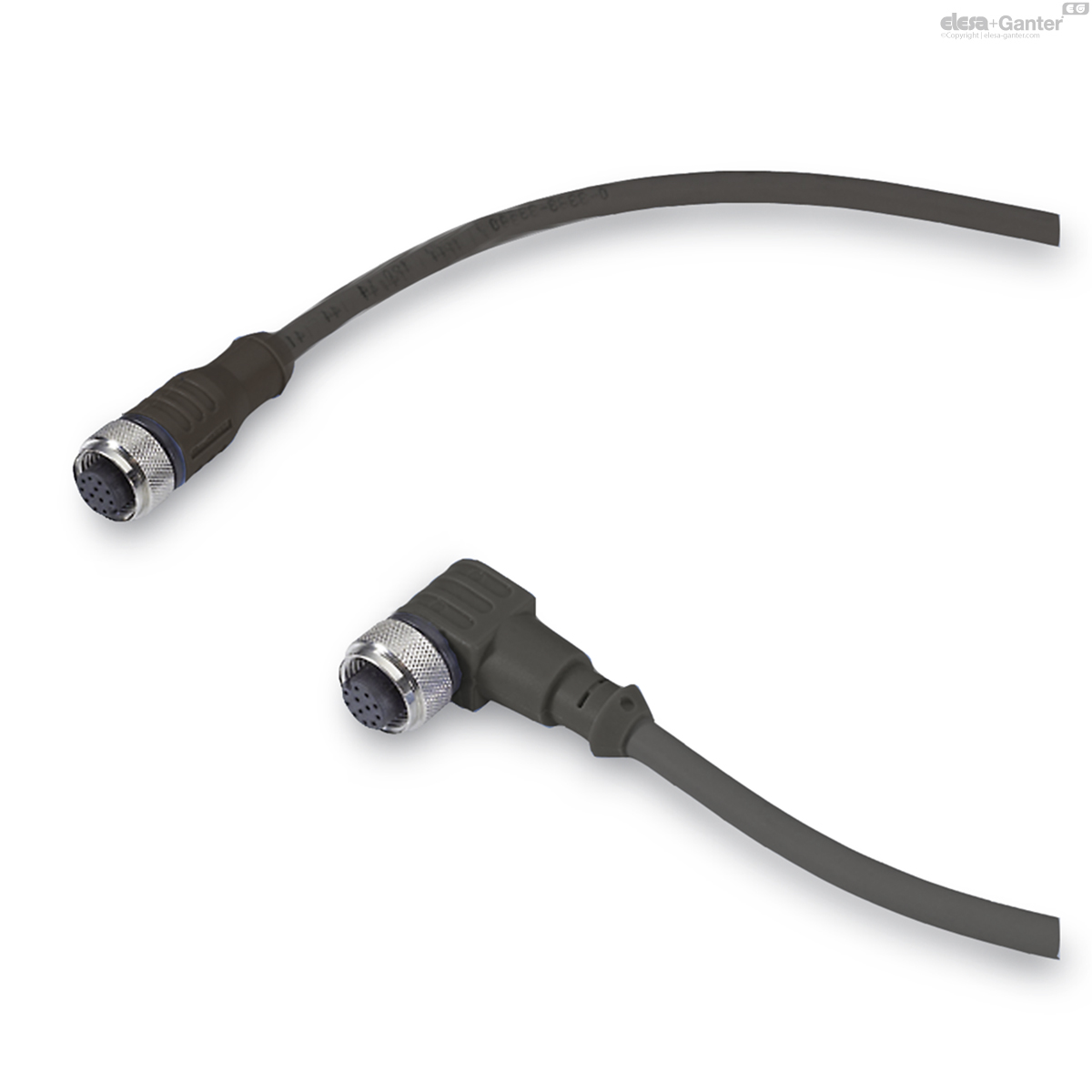

- GN 330 Cables with Connector Coupling (4-pole, 5 or 10 meters long)
