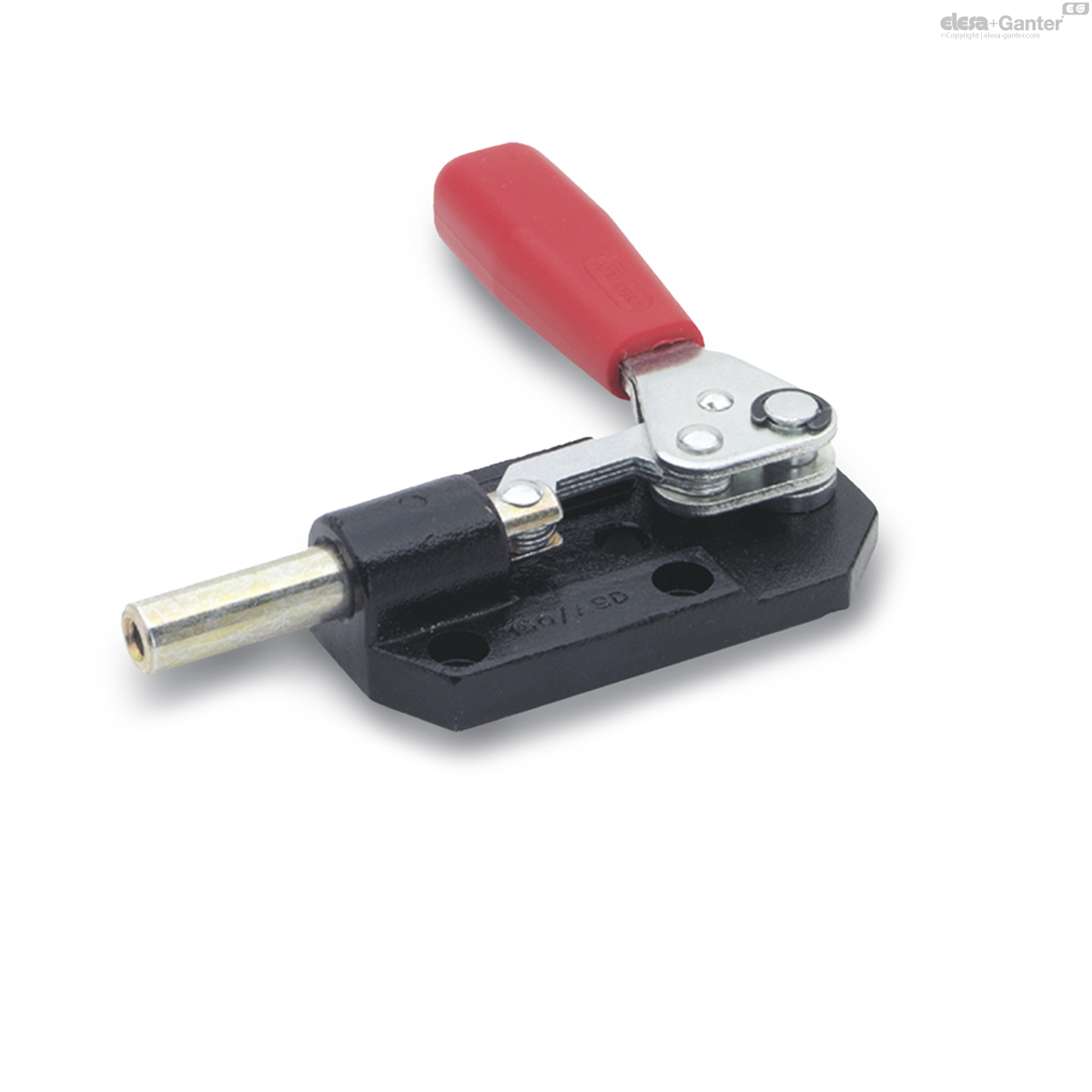

GN 844Heavy duty push-pull type toggle clamps

Heavy duty push-pull type toggle clamps

for push-pull clamping

  • Icons/__logo__RoHS__.png
Heavy duty push-pull type toggle clamps
Heavy duty push-pull type toggle clamps

GN 844

Reset
Catalogue
Size
FH in N
a
b
d1
d2
d3
h1 ≈
h2
l1 ≈
l2 ≈
l3 ≈
GN 844-70-ASD
70
900
12
19.5
8.5
M 6
4.3
49
36
86
77
22
GN 844-160-ASD
160
1300
15
25
11
M 6
5.5
79
46
117
107
32
GN 844-550-ASD
550
4500
20
32
14
M 8
7
113
55
165
153
42
GN 844-70-ASS
70
900
12
19.5
8.5
M 6
4.3
49
36
86
77
22
GN 844-160-ASS
160
1300
15
25
11
M 6
5.5
79
46
117
107
32
GN 844-550-ASS
550
4500
20
32
14
M 8
7
113
55
165
153
42
  • Icons/__logo__SPEEDYBLOCK__.png

Types

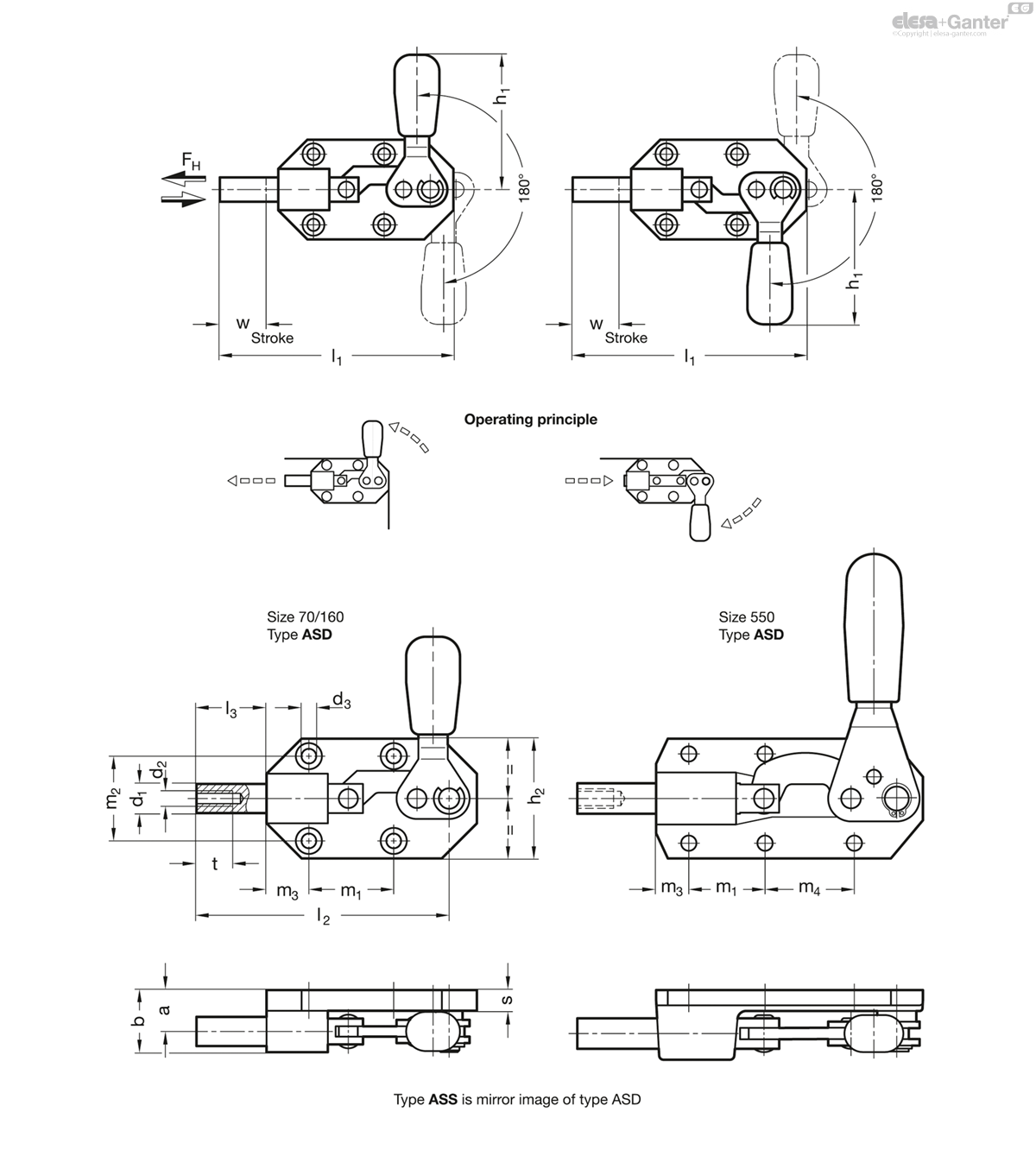

  • Type ASD: Clamping by turning handle counter-clockwise
  • Type ASS: Clamping by turning handle clockwise

Body

Steel

  • forged
  • manganese phosphated

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

Plunger

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

GN 844 heavy duty push-pull type toggle clamps are known for their low height in all clamping positions. They can be used for very high holding forces thanks to their massive and sturdy body.
