ERB-PFBi-directional flush pull handle

Bi-directional flush pull handle

for snap-in assembly, technopolymer

Technical datasheet

Reset

Catalogue	Description	B	L	h₁	h₂	b₁	b₂	l₁	l₂	l₃	F2 [N]

261401-C1	ERB.115-PF-C1	115	58	19	22	91	94	31	43.5	40	600	47

Material

Glass-fibre reinforced polyamide based (PA) technopolymer grey-black colour, matte finish.

Standard execution

Snap-in assembly (see Assembly Instructions).

Features and applications

ERB-PF bi-directional flush pull handles are suitable to open and close sliding doors. The ergonomy of the cavity offers a safe and comfortable grip.

Technical data

The pull out resistance values (F2) reported in the table are the result of laboratory tests carried out with the handle assembled on a panel with a thickness of 1.5 mm, stiffened for testing purposes.

Assembly instructions

Drill the handle housing according to the template dimensions.

Remove all drilling burrs before fitting the handle.

Fit the side of the handle with fixed toothing into the housing (Fig. 1).

Press onto the opposite side (elastic toothing) until the handle is completely snapped in (Fig. 2).

S	X	Y
0,7 - 1	105,3 +0,2	51,5 + 0,2
>1 - 1,5	105,3 +0,2	51,7 + 0,2
>1,5 - 2,2	105,3 +0,2	52,0 + 0,2

EPR-PF

Flush pull handles for snap-in assembly, technopolymer

EPR-SH

Flush pull handles for screw mounting, technopolymer

ERB-PF-CLEAN

Bi-directional flush pull handle for snap-in assembly, technopolymer, easy cleaning

ERB.

Bi-directional flush pull handle for screw mounting, technopolymer

GN 425.8-ST

Folding Handles with Recessed Tray Handle Bar Steel / Stainless Steel, Handle Tray Zinc Die Casting

GN 426.1

Cabinet U-Handles Aluminum

GN 430

Ledge Handles Handle Profile Aluminum, End Caps Plastic

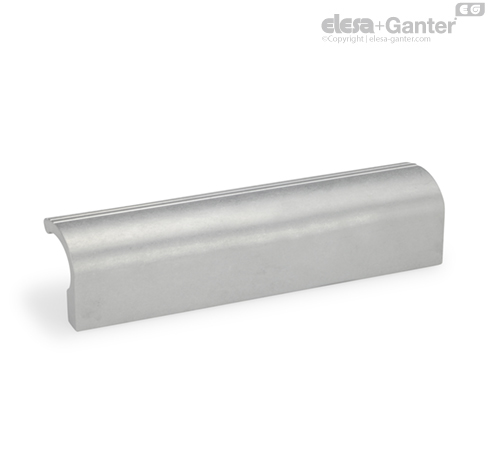

GN 730
