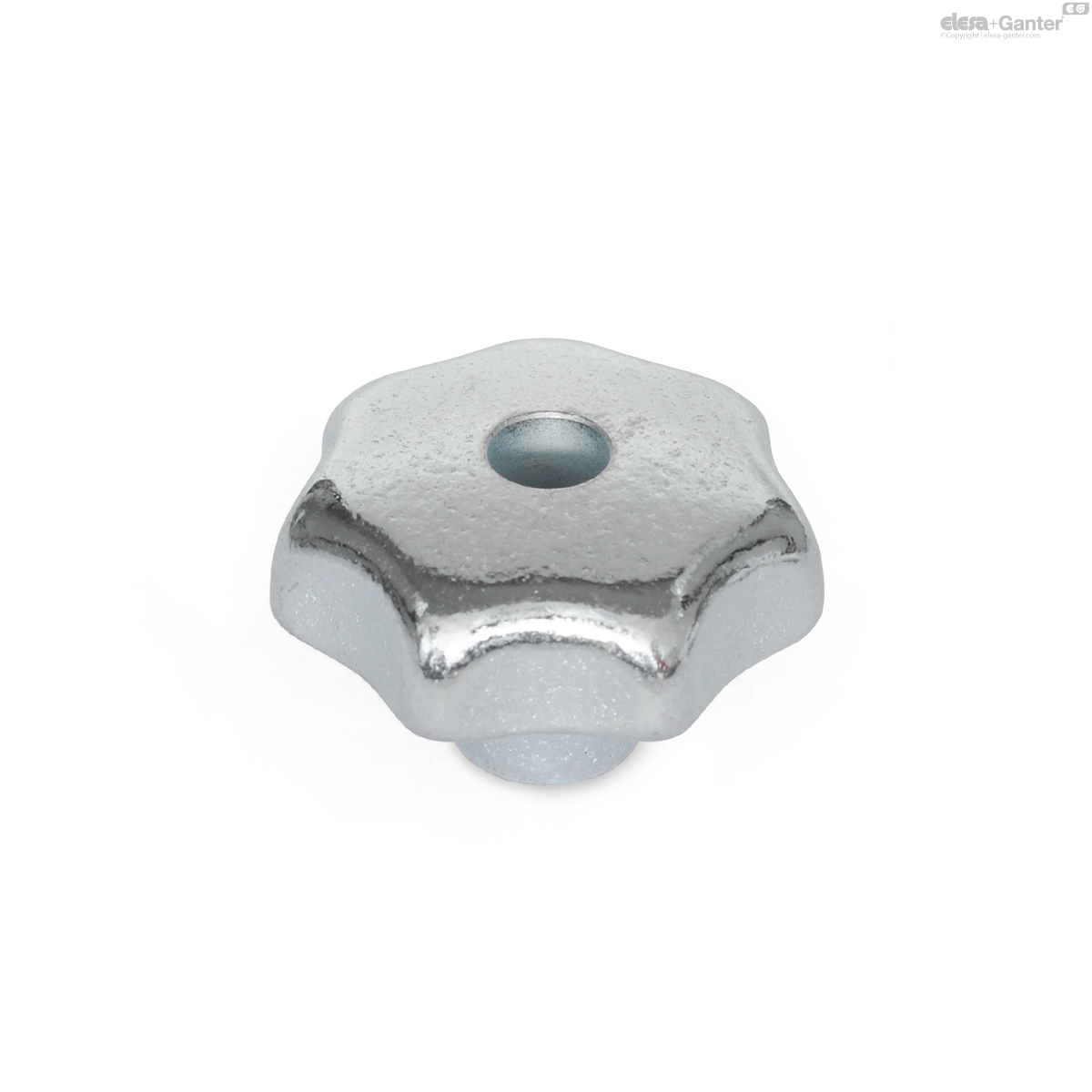

DIN 6336-ZBStar knobs

Zinc plated

Cast iron / Stainless Steel / Aluminium

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Zinc plated
Zinc plated
Stainless Steel
DIN 6336-NI
Stainless Steel
Cast iron
DIN 6336-GG
Cast iron
Zinc plated
DIN 6336-ZB
Zinc plated
Aluminium
DIN 6336-AL
Aluminium

DIN 6336-ZB

Catalogue

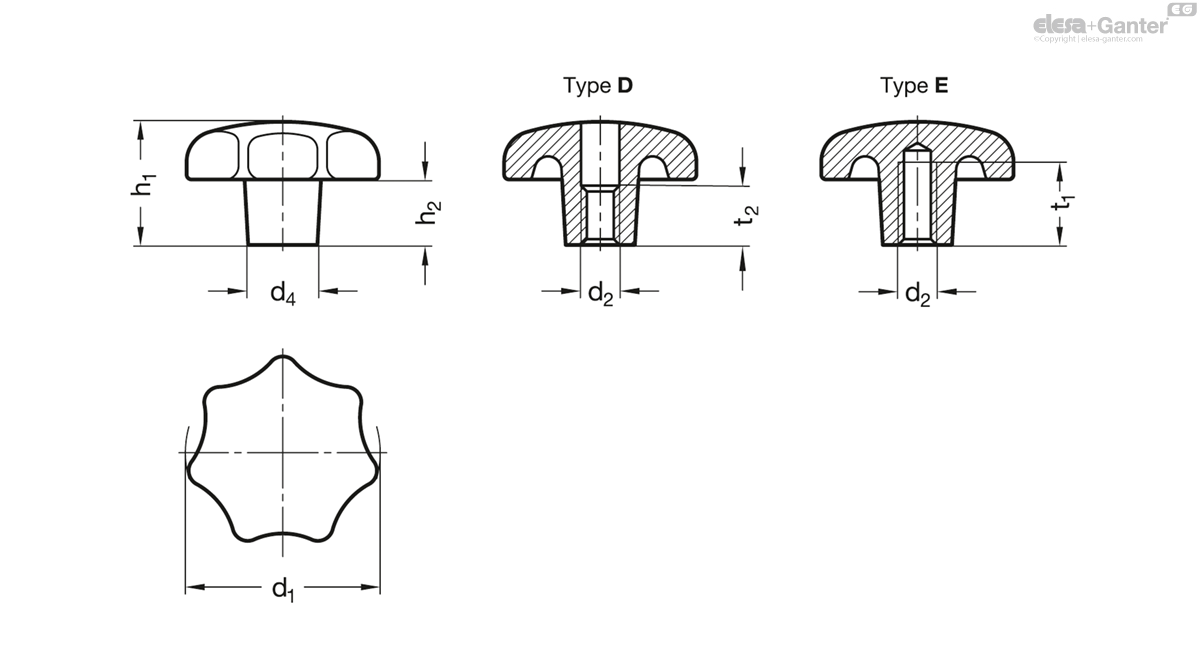

d1
d2
d4
h1
h2 min.
t1
t2
32
M 6
12
20
9
-
10
40
40
M 8
14
25
12
-
12
69
50
M 8
18
32
15
-
16
124
50
M 10
18
32
15
-
16
140
63
M 10
20
40
19
-
20
245
63
M 12
20
40
19
-
20
260
80
M 12
25
50
23
-
30
560
80
M 16
25
50
23
-
30
537
32
M 6
12
20
9
12
-
34
40
M 8
14
25
12
15
-
69
50
M 8
18
32
15
18
-
152
50
M 10
18
32
15
18
-
149
63
M 10
20
40
19
22
-
280
63
M 12
20
40
19
22
-
240
80
M 12
25
50
23
28
-
550
80
M 16
25
50
23
28
-
565

Types

  • Type A: without bore (unmachined)
  • Type B: with plain through bore H7
  • Type C: with plain blind bore H7
  • Type D: with threaded through bore
  • Type E: with threaded blind bore

Cast iron GG

fettled and tumbled

zinc plated, blue passivated ZB

Thread: screw mobility

only types D and E

Stainless Steel precision casting NI

only types A, D, E

  • AISI CF-8
  • matt shot-blasted

Aluminium AL

only types A, C, D, E

  • matt finish (ground), flash mark not visible MT
  • polished PL
  • plastic coated
