Technical datasheet
DIN 6307-STTommy Nuts
Steel
Steel / Stainless Steel, with Movable Bar
|
Catalogue
|

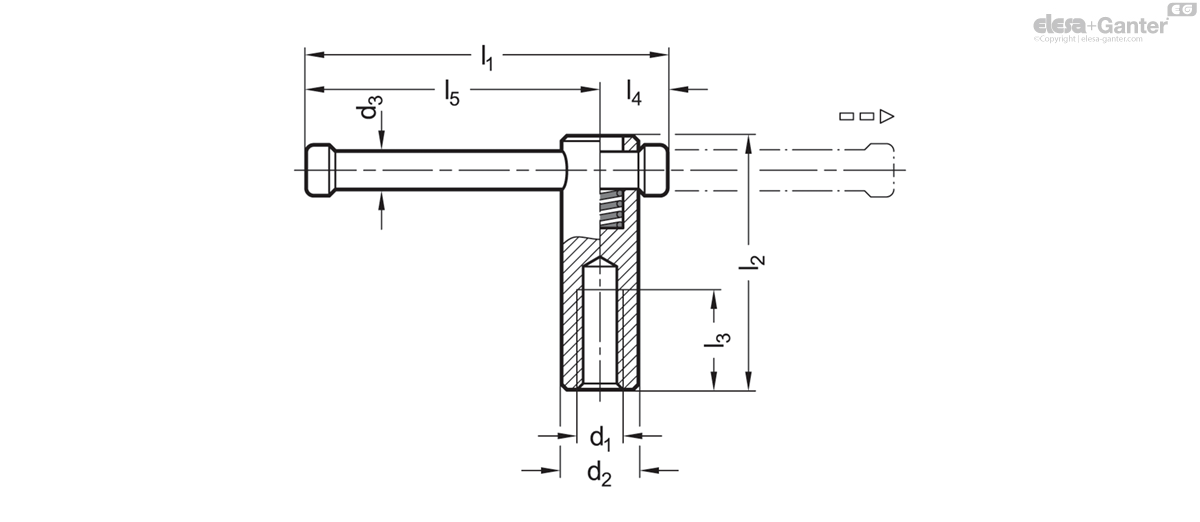

d1
|
d2
|
d3
|
l1
|
l2
|
l3 min.
|
l4
|
l5
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
DIN 6307-M6
|
M 6
|
14
|
6
|
60
|
50
|
15
|
15
|
45
|
58
|
|
DIN 6307-M8
|
M 8
|
14
|
6
|
60
|
55
|
17.5
|
15
|
45
|
60
|
|
DIN 6307-M10
|
M 10
|
18
|
8
|
80
|
60
|
20
|
17
|
63
|
110
|
|
DIN 6307-M12
|
M 12
|
20
|
10
|
100
|
70
|
25
|
19
|
81
|
173
|
|
DIN 6307-M16
|
M 16
|
24
|
13
|
120
|
85
|
35
|
23
|
97
|
320
|
|
DIN 6307-M20
|
M 20
|
30
|
16
|
140
|
95
|
40
|
28
|
112
|
568
|

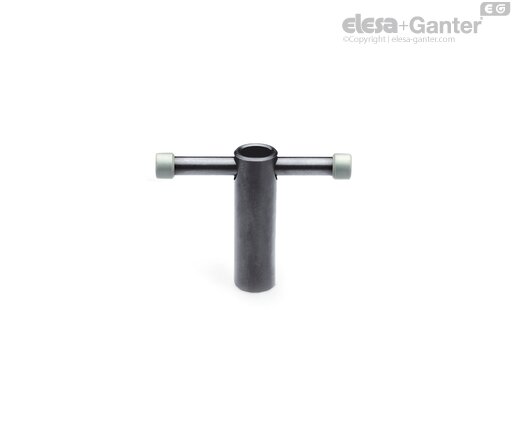

Tommy nut
Tommy nut
- Steel
- Property class 5
- Blackened

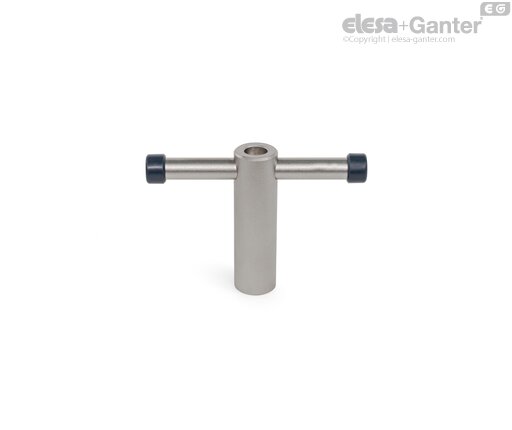

- Stainless steel AISI 304 NI
Bar end caps
Bar end caps
Plastic, Polyethylene (PE)
Gray
Pressure spring
Pressure spring
Stainless steel AISI 301
Tommy nuts DIN 6307 are used for clamping and locking.
The sliding bar is protected against loss by the end caps and held in any position by the pressure spring.
