Technical datasheet
DIN 580-NILifting Eye Bolts

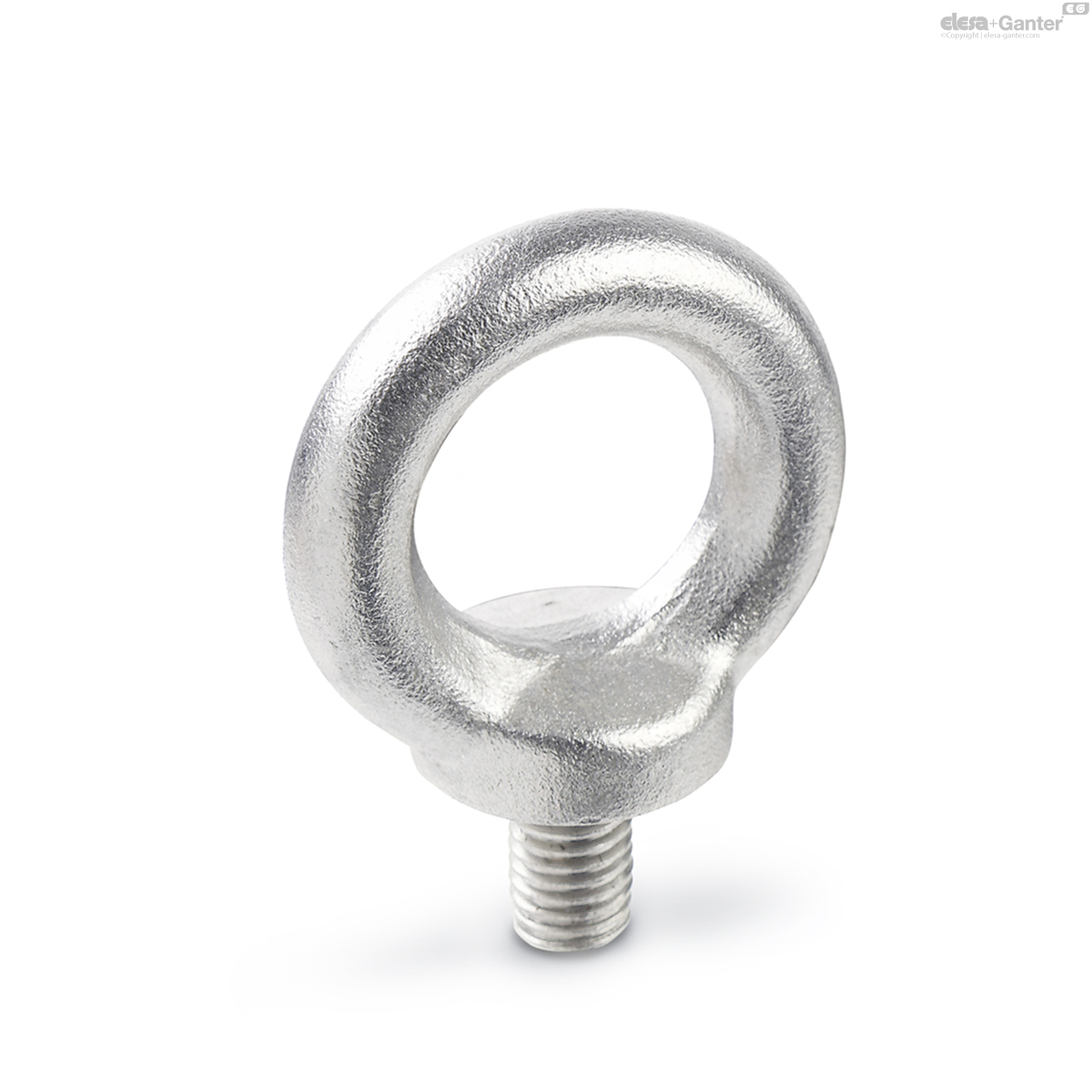

Stainless Steel NI
Steel / Stainless Steel
|
Catalogue
|

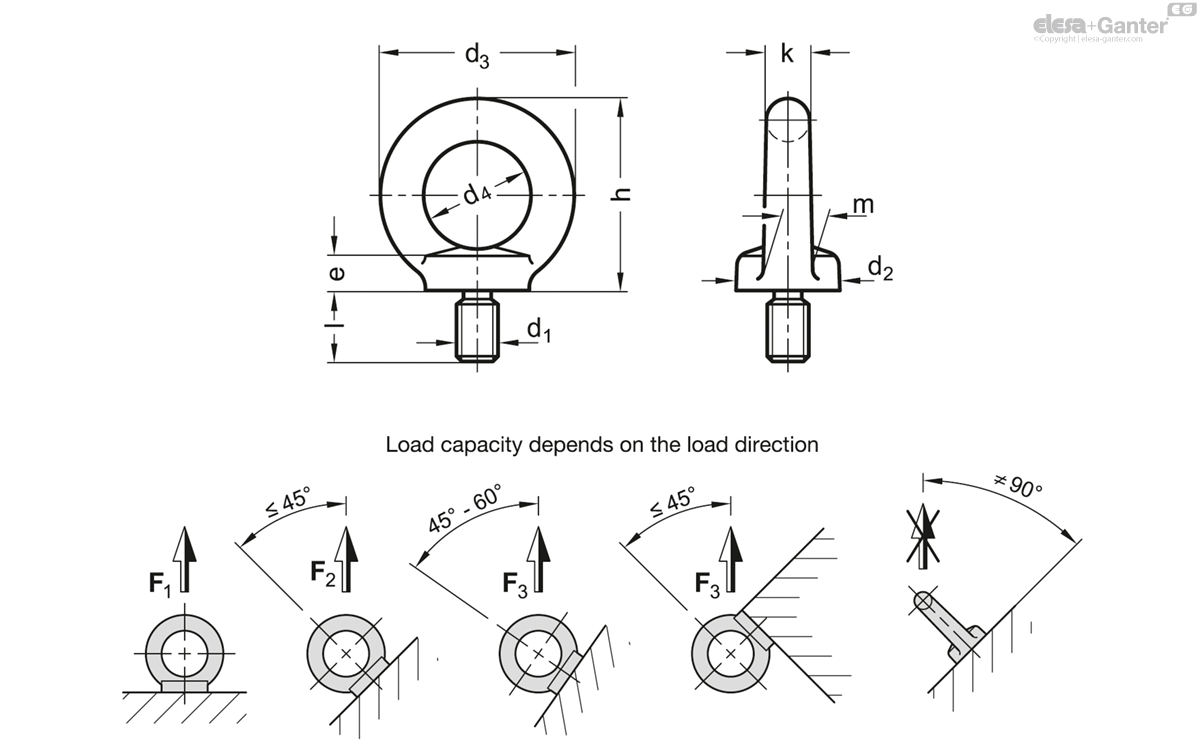

d1
|
d2
|
d3
|
d4
|
e
|
h
|
k
|
Length l
|
m
|
F1 max. in N
|
F2 max. in N
|
F3 max. in N
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DIN 580-M6-NI
|
M 6
|
20
|
36
|
20
|
6
|
36
|
8
|
13
|
10
|
750
|
550
|
380
|
|
DIN 580-M8-NI
|
M 8
|
20
|
36
|
20
|
6
|
36
|
8
|
13
|
10
|
1400
|
1000
|
700
|
|
DIN 580-M10-NI
|
M 10
|
25
|
45
|
25
|
8
|
45
|
10
|
17
|
12
|
2300
|
1700
|
1150
|
|
DIN 580-M12-NI
|
M 12
|
30
|
54
|
30
|
10
|
53
|
12
|
20.5
|
14
|
3400
|
2400
|
1700
|
|
DIN 580-M16-NI
|
M 16
|
35
|
63
|
35
|
12
|
62
|
14
|
27
|
16
|
7000
|
5000
|
3500
|
|
DIN 580-M20-NI
|
M 20
|
40
|
72
|
40
|
14
|
71
|
16
|
30
|
19
|
12000
|
8600
|
6000
|
|
DIN 580-M24-NI
|
M 24
|
50
|
90
|
50
|
18
|
90
|
20
|
36
|
24
|
18000
|
12900
|
9000
|
Steel C15E ST
- Drop-forged
- Annealed
- Contact face machined
- Zinc plated, blue passivated
Stainless steel NI
- Drop-forged
- Contact face machined
Stainless steel A4
- Drop-forged
- Contact face machined
The following guidelines for lifting eye bolts DIN 580 have to be observed in addition to the load values given in the above table.
The eye bolt must be of fully screwed in to achieve a perfect contact between the two mating faces.
Both threads must be of a equal length and the base material of equal strength to that of the bolt.
Other important information and notes can also be found in the operating instruction. It is part of the scope of delivery and can be downloaded as a PDF.
The official DIN standard sheet specifies the additional sizes M42, M48, M56, M64, M72x6, M80x6 and M100x6.
