Technical datasheet
DIN 508-NIT-Nuts
Stainless Steel
Steel / Stainless Steel
DIN 508-NI
|
Catalogue
|

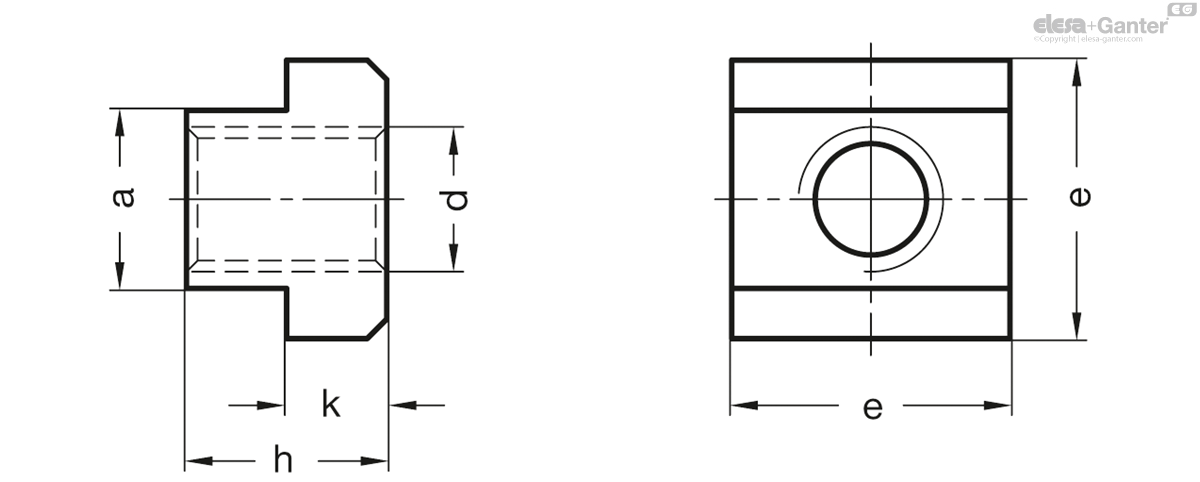

a -0.3/-0.5
|
d
|
e -0.5
|
h
|
k -0.5
|
T-Slot width DIN 650
|
|
|
|---|---|---|---|---|---|---|---|---|
|
8
|
-
|
13
|
10
|
6
|
8
|
10
| ||
|
10
|
-
|
15
|
12
|
6
|
10
|
15
| ||
|
12
|
-
|
18
|
14
|
7
|
12
|
26
| ||
|
14
|
-
|
22
|
16
|
8
|
14
|
46
| ||
|
16
|
-
|
25
|
18
|
9
|
16
|
66
| ||
|
18
|
-
|
28
|
20
|
10
|
18
|
95
| ||
|
8
|
M 6
|
13
|
10
|
6
|
8
|
9
| ||
|
10
|
M 8
|
15
|
12
|
6
|
10
|
13
| ||
|
12
|
M 10
|
18
|
14
|
7
|
12
|
20
| ||
|
14
|
M 12
|
22
|
16
|
8
|
14
|
34
| ||
|
16
|
M 14
|
25
|
18
|
9
|
16
|
49
| ||
|
18
|
M 16
|
28
|
20
|
10
|
18
|
70
|
* not available from stock in tensile strength class 8, requires a minimum order quantity
Version in Steel
Heat-treated steel
Tensile strength class 8
blank
Tensile strength class 10
blackened
Version in Stainless Steel NI
- AISI 316Ti (with thread)
- AISI 304 (without thread)
T-Nuts DIN 508 untapped with the tensile strength class 8 (blank) are also available. When ordering the latter the thread size is omitted in part number.
