CGA-MS-22-7-2-TPE CGA-MS Multiple sealing inserts

CGA-MS-22-7-2-TPE

CGA-MS Multiple sealing inserts

for CGT and CGM cable glands, rubber
All sizes and variants
  • g10030
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
561139
d
18
d1
7
d2
22.2
h
11
Number of holes
2
For cable glands
CGT-18 / CGM-18
weight
5

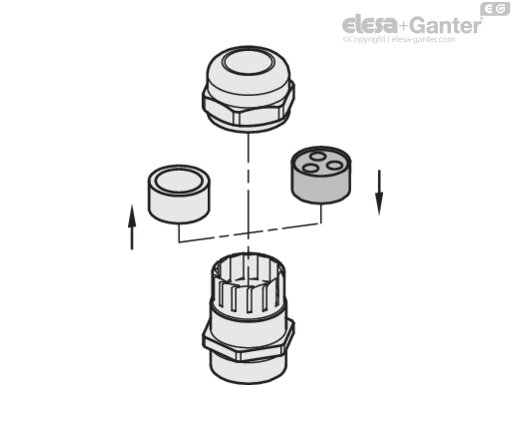

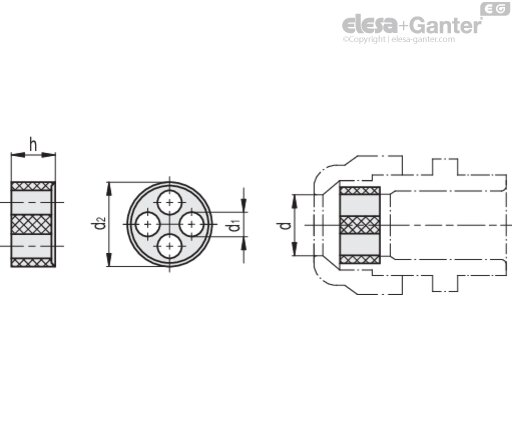

CGA-MS-22-7-2-TPE drawing
CGA-MS-22-7-2-TPE drawing
CGA-MS-22-7-2-TPE drawing

Material

Thermoplastic elastomer (TPE).

Features and applications

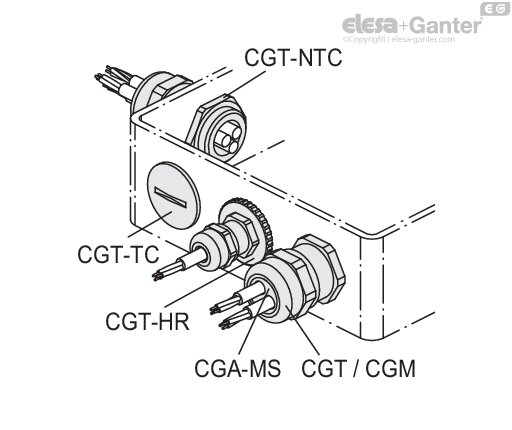

They are used as an alternative to the sealing inserts present in cable glands when more than one cable needs to be routed through the same cable gland; they can be used interchangeably with both CGT technopolymer cable glands and CGM metal cable glands.
