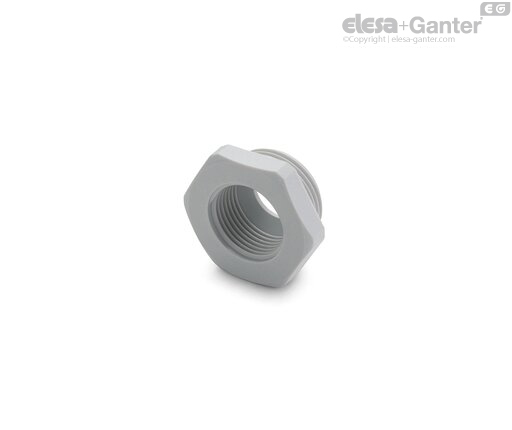

CGT-HR-M50-M40-C3
CGT-HR Metric thread
for CGT cable glands, metric and PG thread, technopolymer
Eta: 1-2 weeks
Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

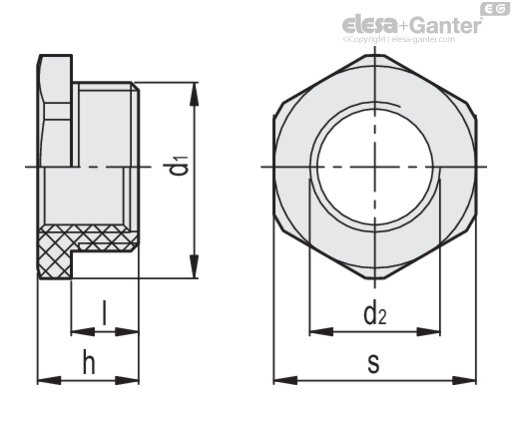

Technical data
- Catalogue
- 560211-C3
- d1
- M 50 x 1.5
- d2
- M 40 x 1.5
- h
- 21
- l
- 14
- s
- 55
- 24
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 7035 (C3) grey colour.
Standard executions
- CGT-HR: metric threadings.
- CGT-HR-PG: PG threadings.
Features and applications

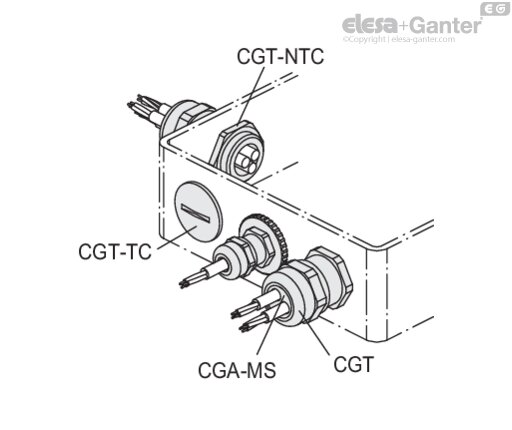

They are used to install a cable gland in a mounting hole on electrical equipment that does not match the thread size of the cable gland itself, ensuring mechanical protection and a secure seal. To secure the reducers, use the CGT-NTC mounting nut.
