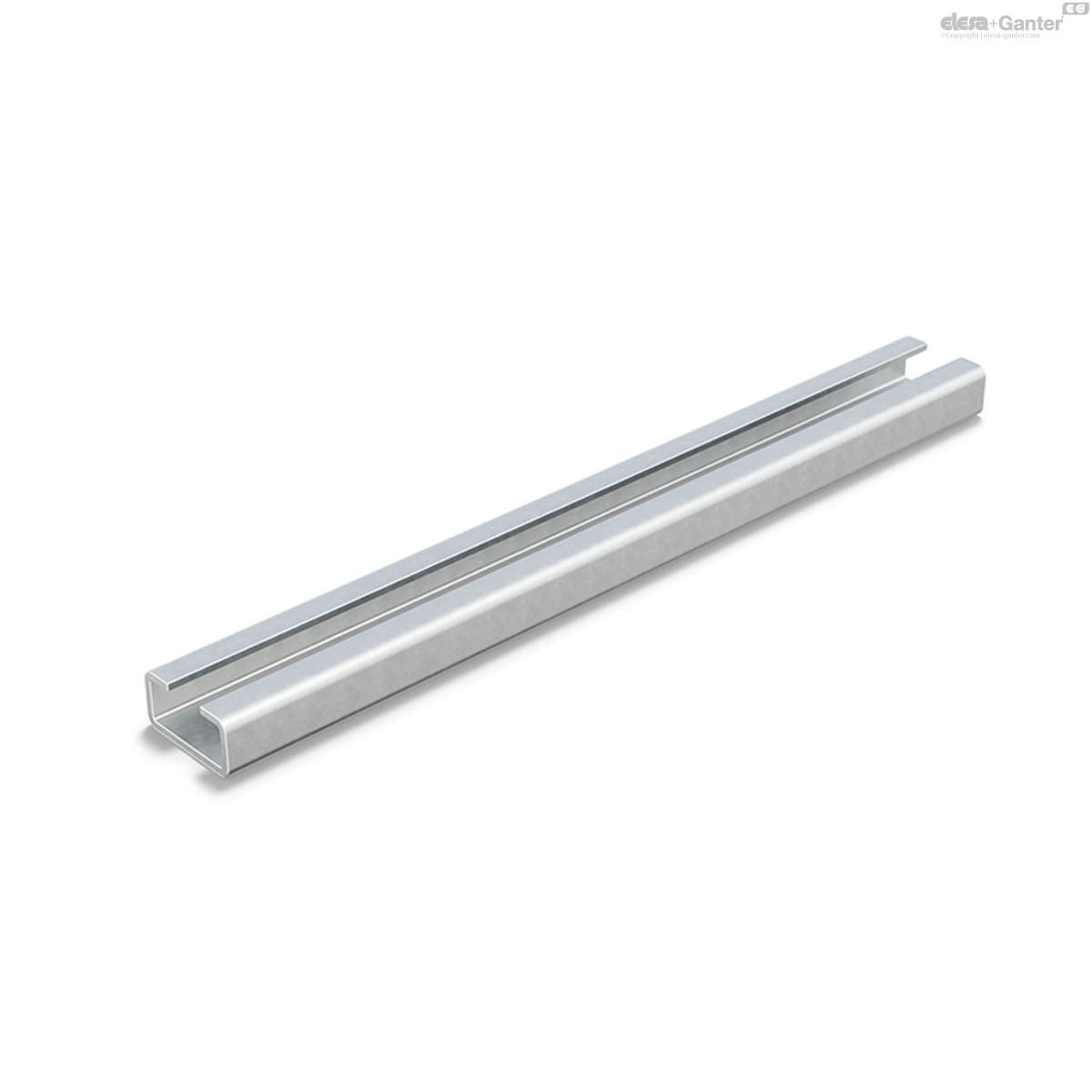

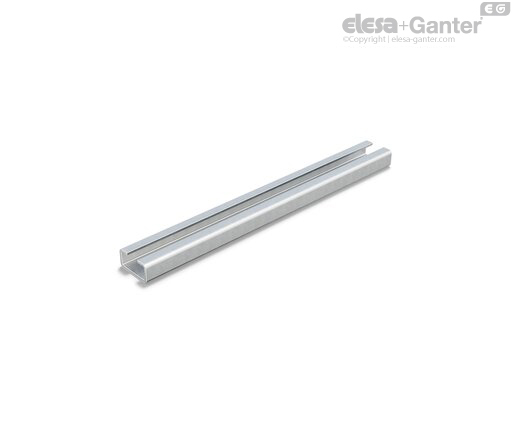

DCE-GU-H-40-22-2000-ZN DCE-GU-H For DIN 3015-2 heavy-duty series tube clamps

DCE-GU-H-40-22-2000-ZN

DCE-GU-H For DIN 3015-2 heavy-duty series tube clamps

for DCE tube clamps, steel
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DCE-GU

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
570521
l
40
l1
13
h
22
s
5
For tube clamp
DCE-H
3227
DCE-GU-H-40-22-2000-ZN drawing

Material

Zinc-plated steel

Standard executions

  • DCE-GU: for use with DCE-S standard series (DIN 3015-1) and DCE-D double series (DIN 3015-3) tube clamps.
  • DCE-GU-H: for use with DCE-H heavy-duty series tube clamps (DIN 3015-2).

Features and applications

Different C-profile dimensions to suit different DIN 3015 series. The guide is the ideal solution for creating modular structures for fixing tube clamps.

Length 2 m.

Accessories

For the assembly kit DCK-S, DCK-H and DCK-D.

  • DCE-S: standard series tube clamps.
  • DCE-H: heavy-duty series tube clamps.
  • DCE-D: double series tube clamps.
