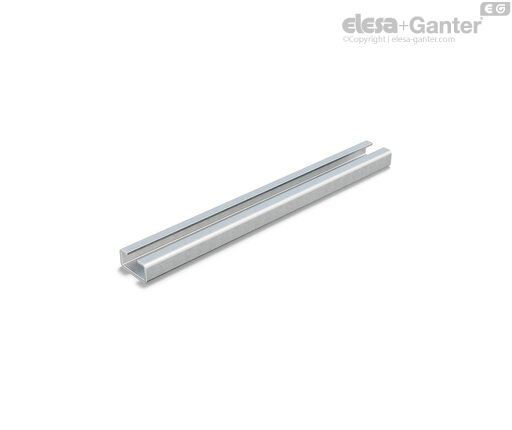

DCE-GU-28-11-2000-ZN DCE-GU For DIN 3015-1 standard series and DIN 3015-3 double series tube clamps

DCE-GU-28-11-2000-ZN DCE-GU For DIN 3015-1 standard series and DIN 3015-3 double series tube clamps

for DCE tube clamps, steel
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
570511
l
28
l1
11
h
11
s
2
For tube clamp
DCE-S - DCE-D
weight
847
DCE-GU-28-11-2000-ZN drawing
Video: DCE-GU

Material

Zinc-plated steel

Standard executions

  • DCE-GU: for use with DCE-S standard series (DIN 3015-1) and DCE-D double series (DIN 3015-3) tube clamps.
  • DCE-GU-H: for use with DCE-H heavy-duty series tube clamps (DIN 3015-2).

Features and applications

Different C-profile dimensions to suit different DIN 3015 series. The guide is the ideal solution for creating modular structures for fixing tube clamps.

Length 2 m.

Accessories

For the assembly kit DCK-S, DCK-H and DCK-D.

  • DCE-S: standard series tube clamps.
  • DCE-H: heavy-duty series tube clamps.
  • DCE-D: double series tube clamps.
