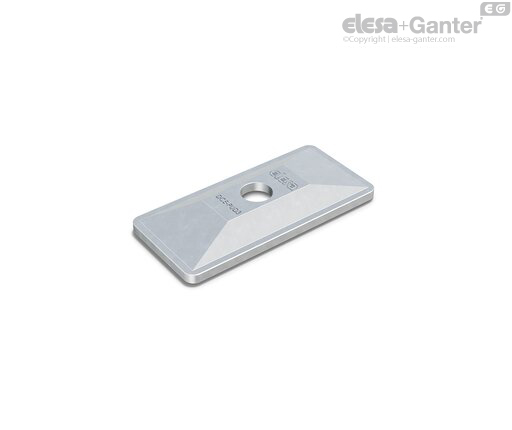

DCE-PU-D-2-ZN DCE-PU-D For DIN 3015-3 double series tube clamps

DCE-PU-D-2-ZN

DCE-PU-D For DIN 3015-3 double series tube clamps

for DCE tube clamps, steel
All sizes and variants
  • RoHS

In stock at the manufacturer (indicative)

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
570493
b
30
d
9
l
52
h
3
h1
7
For tube clamp
DCE-D-2
weight
36
DCE-PU-D-2-ZN drawing
Video: DCE-PU

Material

Zinc-plated steel.

Standard executions

  • DCE-PU-S: for use with DCE-S standard series tube clamps (DIN 3015-1).
  • DCE-PU-H: for use with DCE-H heavy-duty series tube clamps (DIN 3015-2).
  • DCE-PU-D: for use with DCE-D double series tube clamps (DIN 3015-3).

Executions on request

AISI 316L stainless steel.

Accessories

For the assembly kit DCK-S, DCK-H and DCK-D.

  • DCE-S: standard series tube clamps.
  • DCE-H: heavy-duty series tube clamps.
  • DCE-D: double series tube clamps.
