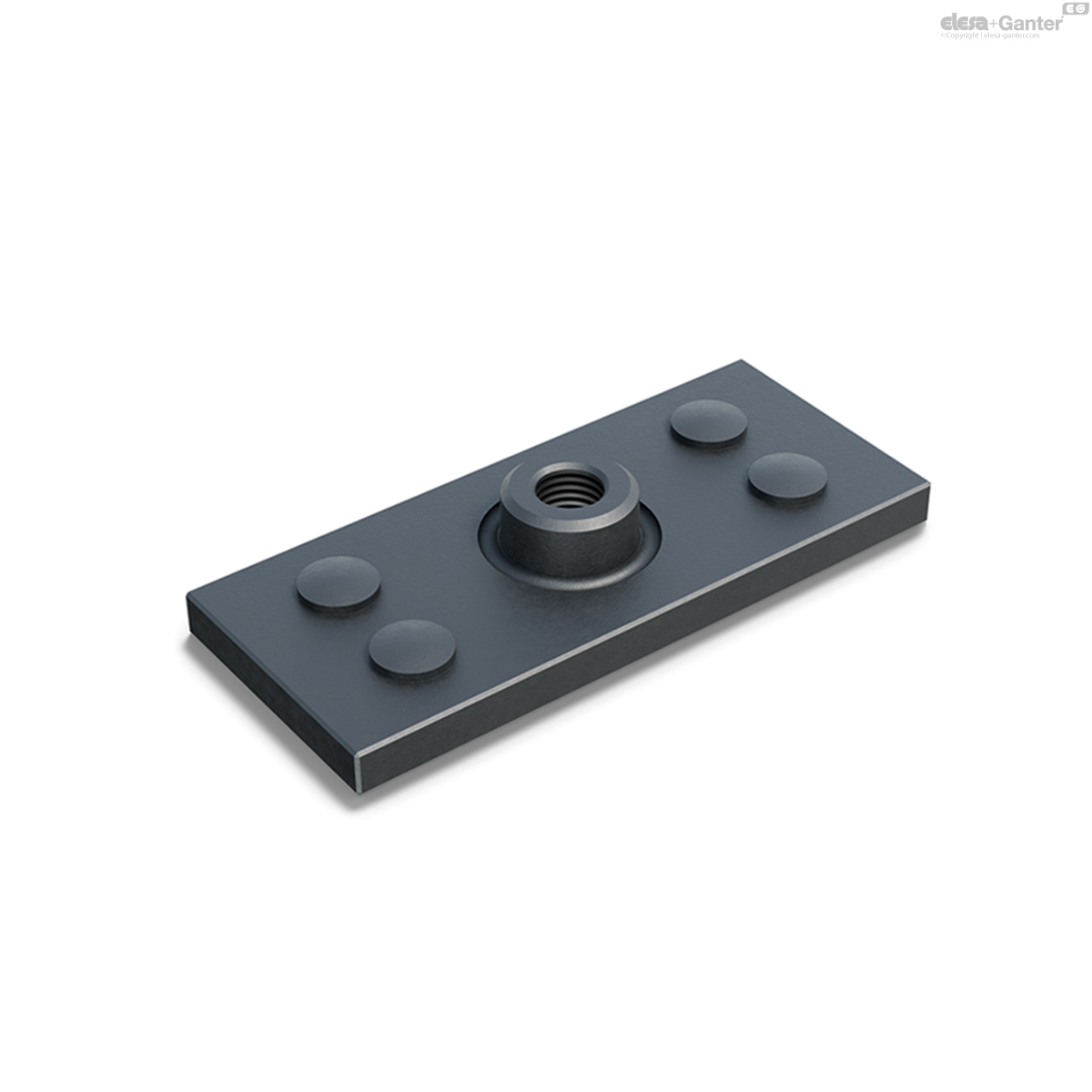

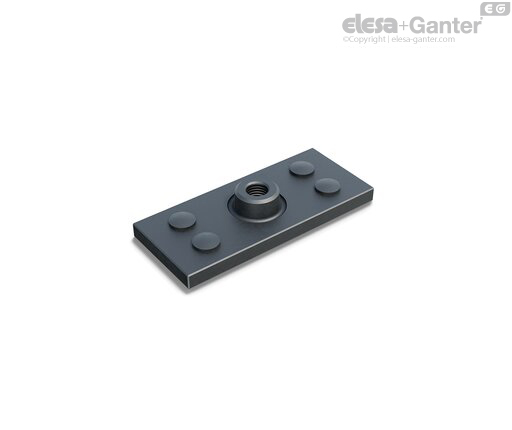

DCE-PL-D-3-M8-PH DCE-PL-D For DIN 3015-3 double series tube clamps

DCE-PL-D-3-M8-PH

DCE-PL-D For DIN 3015-3 double series tube clamps

for DCE tube clamps, steel
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DCE-PL

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
570475
b
30
d
M 8
d1
14
l
70
h
5
h1
6
For tube clamp
DCE-D-3
85
DCE-PL-D-3-M8-PH drawing

Material

Phosphated steel.

Standard executions

  • DCE-PL-S: for use with DCE-S standard series tube clamps (DIN 3015-1).
  • DCE-PL-H: for use with DCE-H heavy-duty series tube clamps (DIN 3015-2).
  • DCE-PL-D: for use with DCE-D double series tube clamps (DIN 3015-3).

Features and applications

The plates form the support base for the clamps, allowing them to be fixed to a flat surface.

Executions on request

AISI 316L stainless steel.

Accessories

For the assembly kit DCK-S, DCK-H and DCK-D.

  • DCE-S: standard series tube clamps.
  • DCE-H: heavy-duty series tube clamps.
  • DCE-D: double series tube clamps.
