DCE-H-4-38-PP-C9

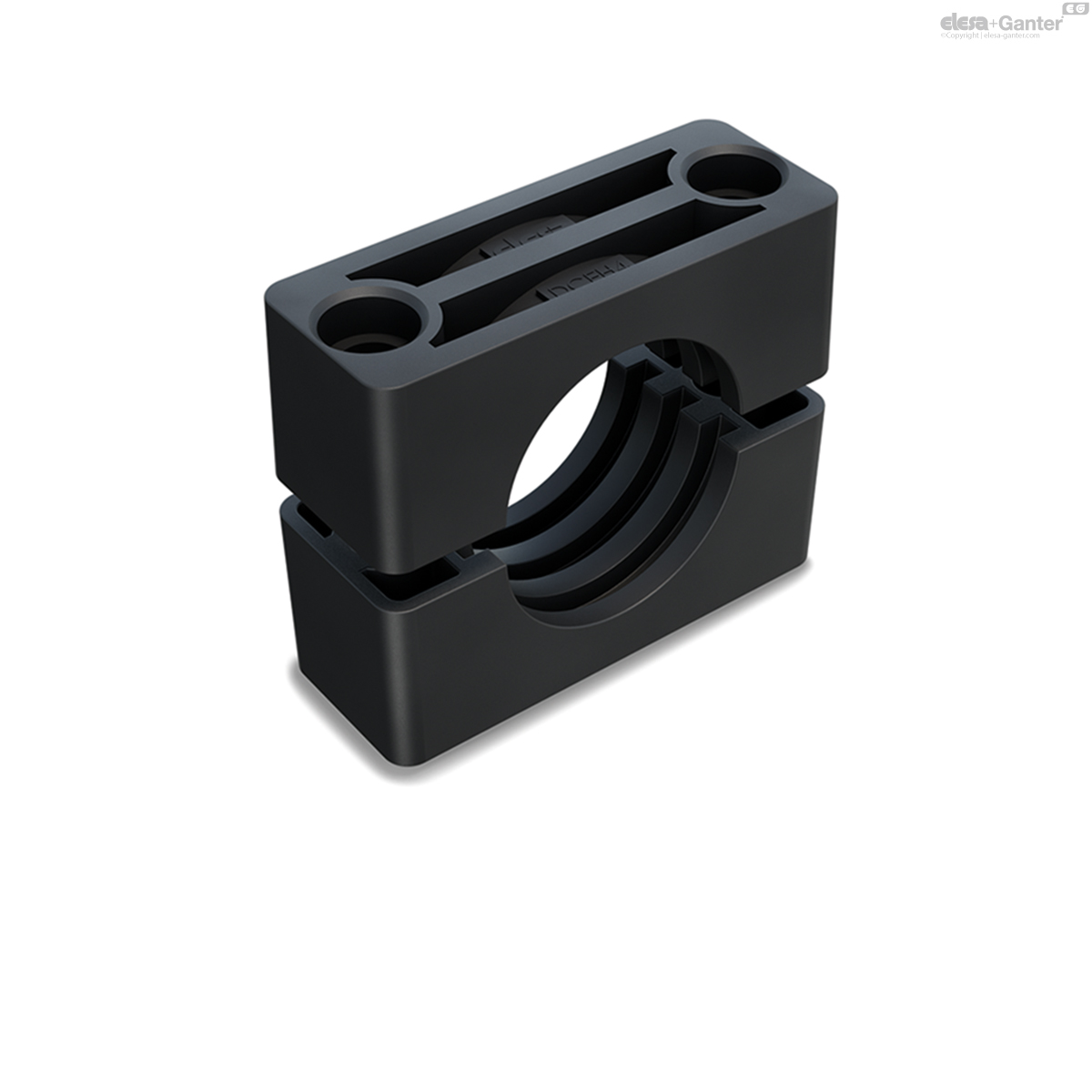

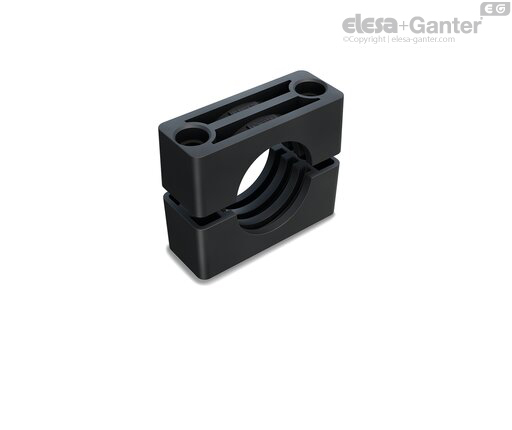

DCE-H Tube clamps of heavy series DIN 3015-2
Eta: 1-2 weeks All sizes and variants of DCE-H
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 570311-C9
- Group
- 4
- d
- 38
- d Tube
[GAS] - 1 1/2
- f
- 90
- l
- 116
- l1
- 45
- h
- 88
- s
- 2
- Fastening with screws
Metric - M 12
- Fastening with screws
UNC - 1/2-13
- 106
Material
Polypropylene-based (PP) technopolymer, high UV resistance, RAL 9005 black colour.
Standard execution
Two fastening holes for cylindrical-head or hexagon-head screws.
Working temperature
From -30 °C to +90 °C.
Features and applications
The heavy-duty series tube clamp, in accordance with DIN 3015-2, allows rigid pipes tubes to be secured and a tube system (for liquids or gases) to be created.
In particular, the DIN regulation defines specific reference groups based on the overall dimensions of the collar bodies.
The table shows the correspondence between the DIN 3015-2 group and the corresponding DCE-H group.
They are used in heavy industrial hydraulics for the construction of hydraulic and oil-hydraulic systems where high mechanical strength and effective vibration and noise reduction are required.
They are used in the rail and navel sectors, on offshore and onshore platforms.
See Tube clamps technical data.
| Correspondence between the DIN 3015-2 group and the DCE-H group | |||||
|---|---|---|---|---|---|
| DIN 3015-2 group | 1 | 2 | 3 | 4 | 5 |
| DCE-H group | 1 | 2 | 3 | 4 | 5 |
Executions on request
- Clamps for tubes with different diameters.
- Various materials and colours.
