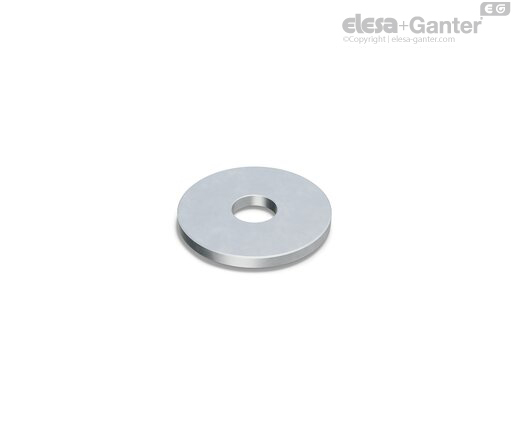

DCE-WA-D-8.5-2-ZN DCE-WA-D For DIN 3015-3 double series tube clamps

DCE-WA-D-8.5-2-ZN

DCE-WA-D For DIN 3015-3 double series tube clamps

for DCE tube clamps, steel
All sizes and variants
  • RoHS

In stock at the manufacturer (indicative)

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
570205
d
22
d1
8.5
s
2
Fastening with screws
M 8
weight
6
DCE-WA-D-8.5-2-ZN drawing
Video: DCE-WA

Material

Zinc-plated steel, class 8.

Standard executions

  • DCE-WA-S: for DCE-S (DIN 3015-1) standard series tube clamps.
  • DCE-WA-D: for DCE-D (DIN 3015-3) double series tube clamps.

Features and applications

They are mainly used in combination with DCE-SRC and DCE-SRE screws for fastening half clamps.

Accessories

For the assembly kit DCK-S and DCK-D.

  • DCE-S: standard series tube clamps.
  • DCE-D: double series tube clamps.
