DCE-WA-S-6.3-0.8-ZN DCE-WA-S For DIN 3015-1 standard series tube clamps

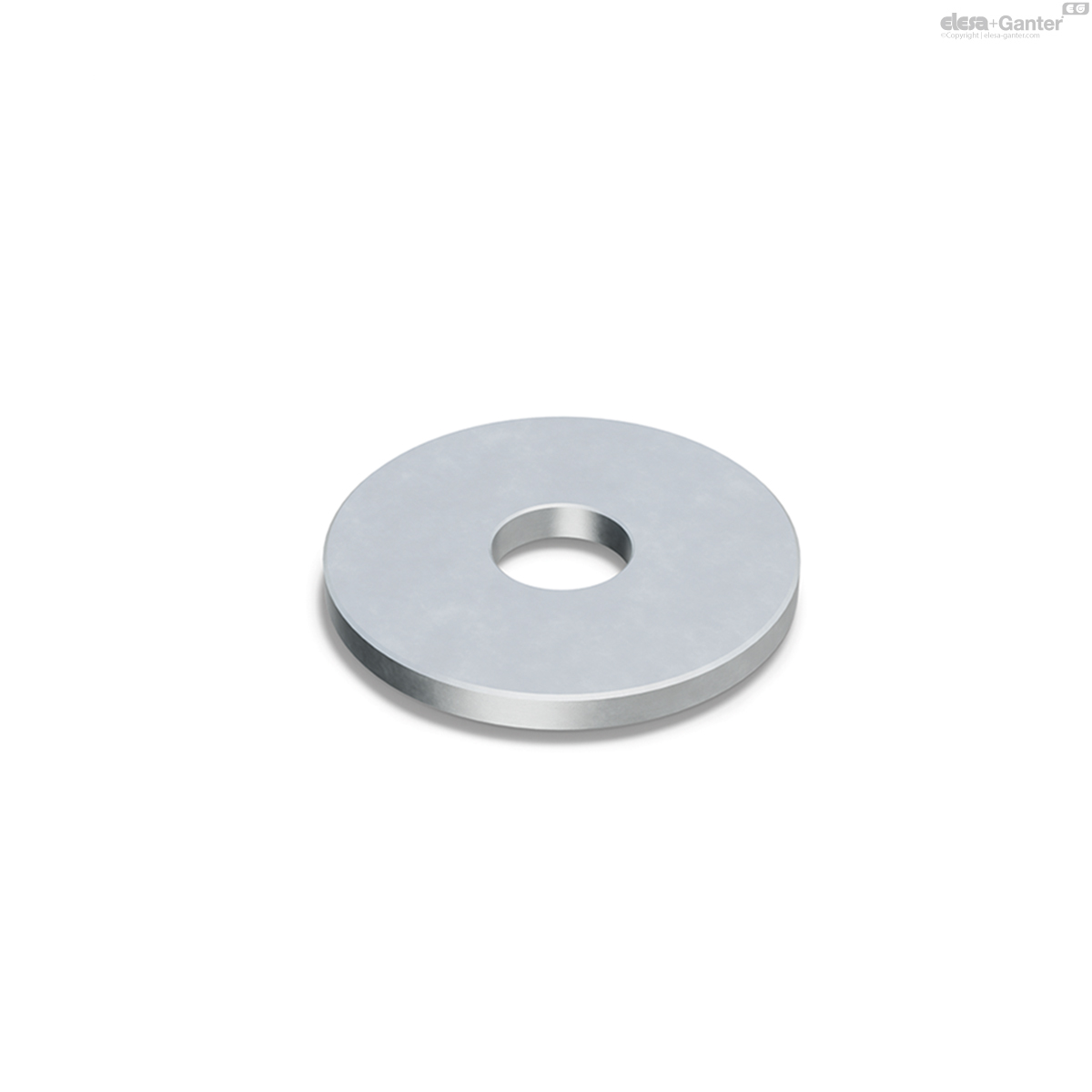

DCE-WA-S-6.3-0.8-ZN

DCE-WA-S For DIN 3015-1 standard series tube clamps

for DCE tube clamps, steel
  • RoHS

Eta: 1-2 weeks All sizes and variants of DCE-WA

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
570201
d
11
d1
6.4
s
1.6
Fastening with screws
M 6
1

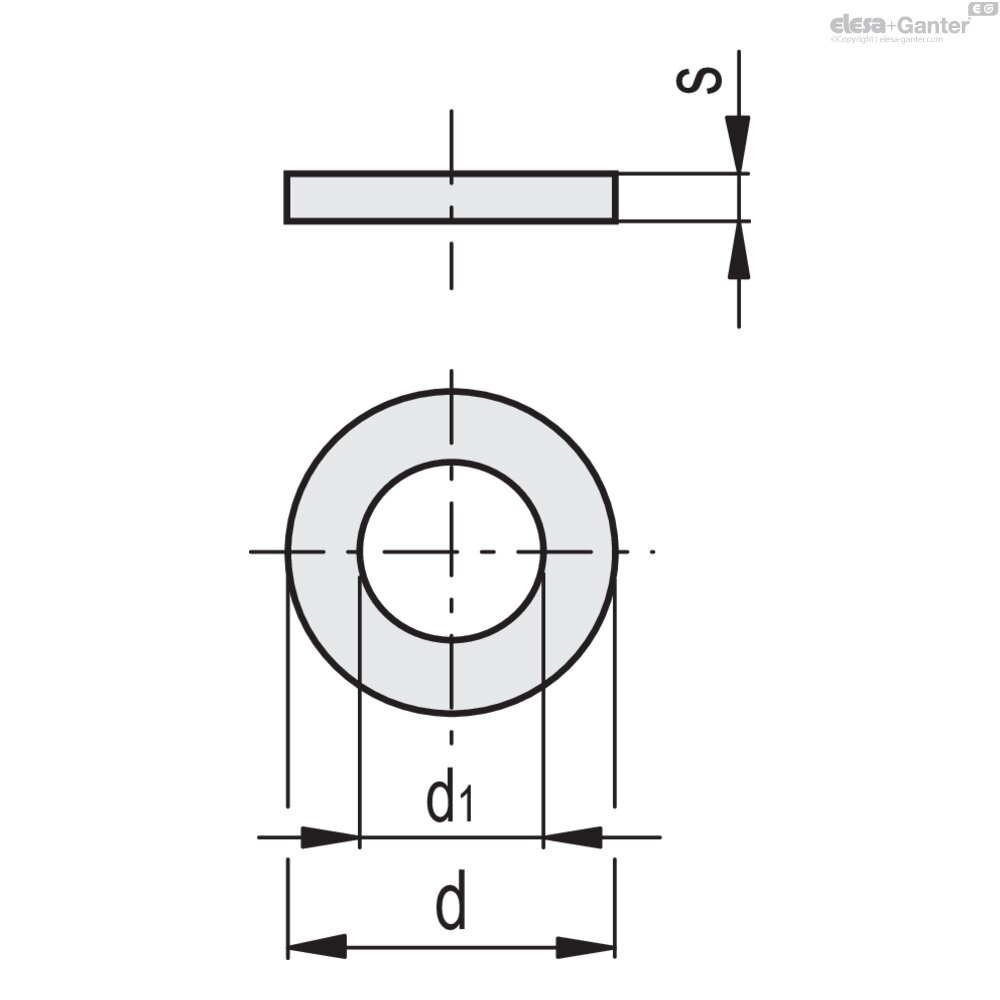

DCE-WA-S-6.3-0.8-ZN drawing

Material

Zinc-plated steel, class 8.

Standard executions

  • DCE-WA-S: for DCE-S (DIN 3015-1) standard series tube clamps.
  • DCE-WA-D: for DCE-D (DIN 3015-3) double series tube clamps.

Features and applications

They are mainly used in combination with DCE-SRC and DCE-SRE screws for fastening half clamps.

Accessories

For the assembly kit DCK-S and DCK-D.

  • DCE-S: standard series tube clamps.
  • DCE-D: double series tube clamps.
