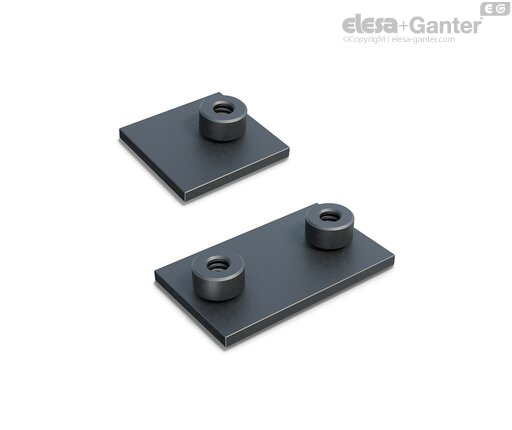

DCE-PL-S-6-M6-PH DCE-PL-S For DIN 3015-1 standard series tube clamps

DCE-PL-S-6-M6-PH DCE-PL-S For DIN 3015-1 standard series tube clamps

for DCE tube clamps, steel
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
570106
b
30
d
M 6
d1
12
f
52
l
71
h
3
h1
6.5
For tube clamp
DCE-S-6
weight
26
DCE-PL-S-6-M6-PH drawing
Video: DCE-PL

Material

Phosphated steel.

Standard executions

  • DCE-PL-S: for use with DCE-S standard series tube clamps (DIN 3015-1).
  • DCE-PL-H: for use with DCE-H heavy-duty series tube clamps (DIN 3015-2).
  • DCE-PL-D: for use with DCE-D double series tube clamps (DIN 3015-3).

Features and applications

The plates form the support base for the clamps, allowing them to be fixed to a flat surface.

Executions on request

AISI 316L stainless steel.

Accessories

For the assembly kit DCK-S, DCK-H and DCK-D.

  • DCE-S: standard series tube clamps.
  • DCE-H: heavy-duty series tube clamps.
  • DCE-D: double series tube clamps.
