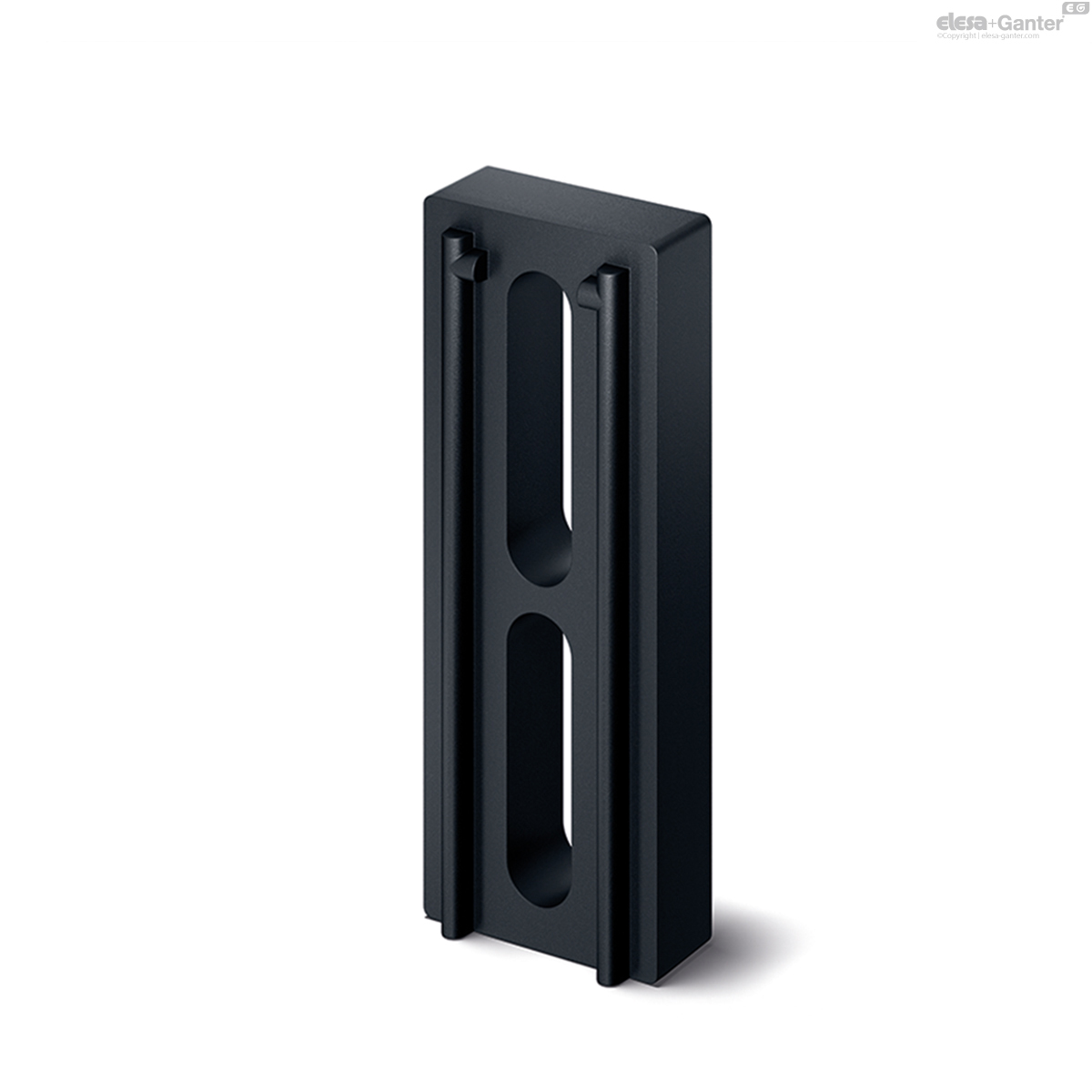

DSG-C For use with guide rail brackets SPFM e SPFL

DSG-C

For use with guide rail brackets SPFM e SPFL

Technopolymer
All sizes and variants
  • PA
  • g10030
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
419675
weight
55

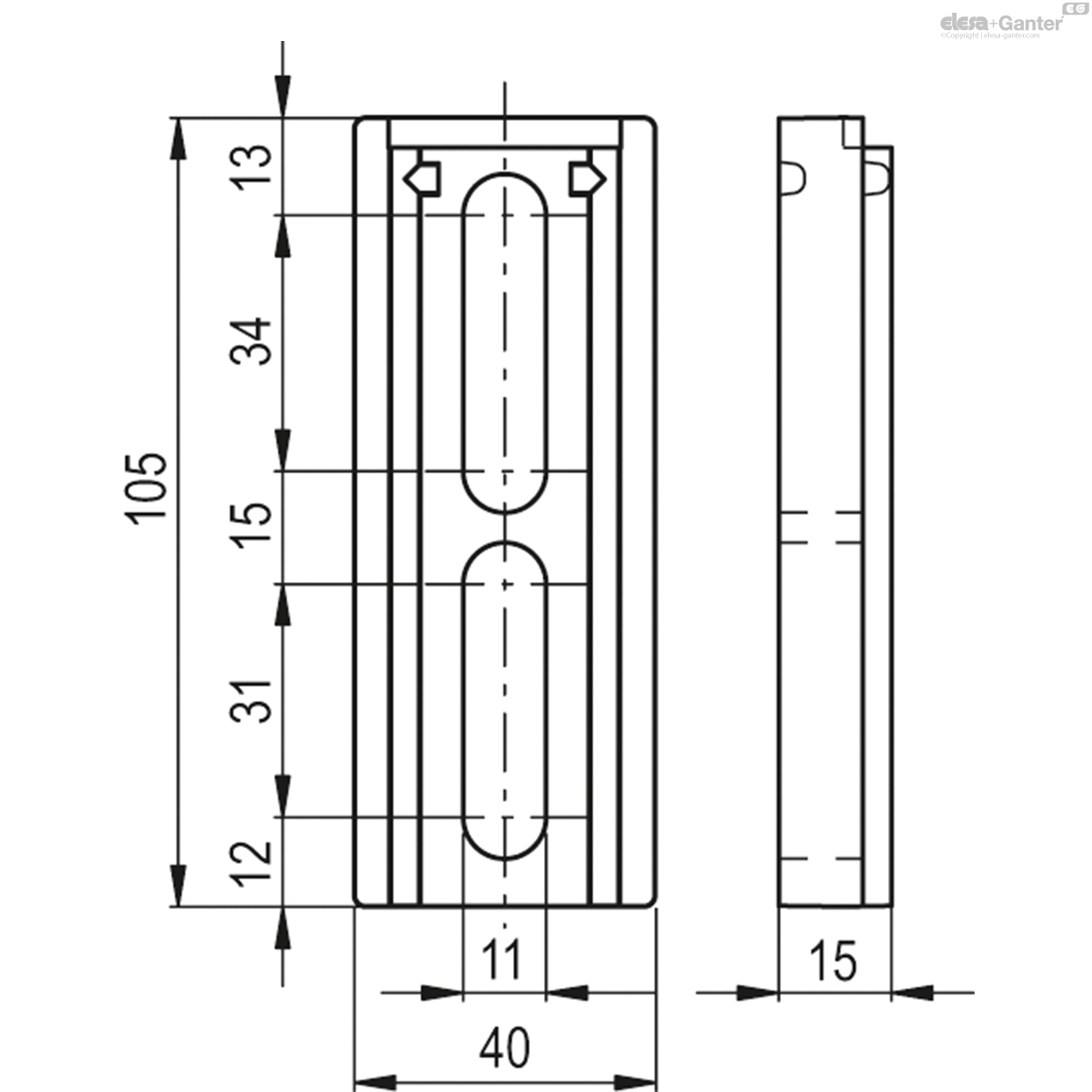

DSG-C drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • DSG-A: for use with guide rail brackets SPF, SPFS, SPR e SPR.V.
  • DSG-B: for use with guide rail brackets SPR e SPR.V.
  • DSG-C: for use with guide rail brackets SPFM e SPFL.

Features and applications

DSG spacers are used in combination with SPF, SPFS, SPFM, SPFL, SPR, SPR.V guide rail brackets when a more detached fixing positioning from the conveyor line is required.
