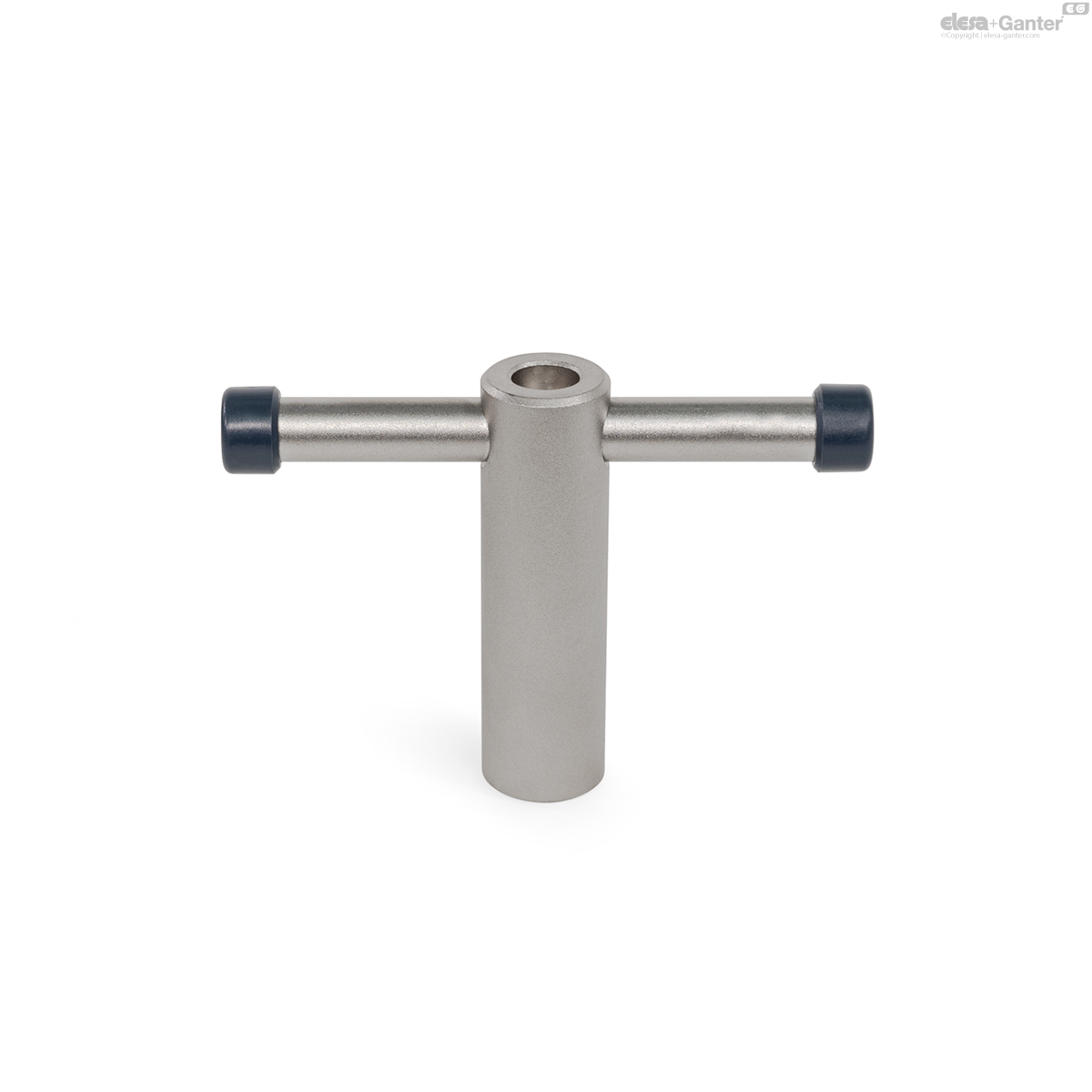

6307-M20-NI DIN 6307-NI Stainless steel

6307-M20-NI

DIN 6307-NI Stainless steel

Steel / Stainless Steel, with Movable Bar
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 6307

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 6307-M20-NI
d1
M 20
d2
30
d3
16
l1
140
l2
95
l3 min.
40
l4
28
l5
112
591

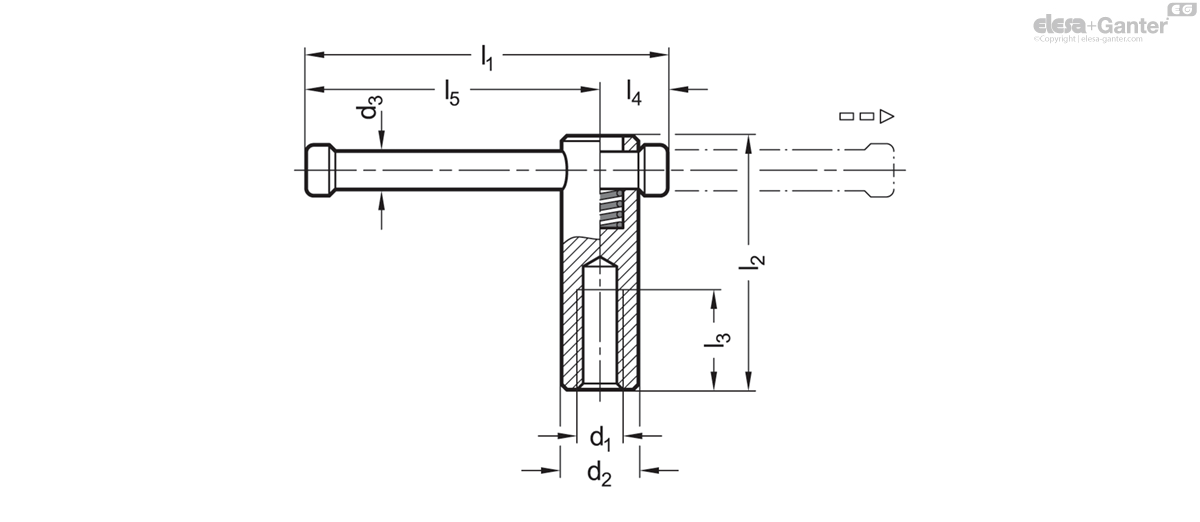

6307-M20-NI drawing

Tommy nut

  • Steel
  • Property class 5
  • Blackened
  • Stainless steel AISI 304 NI

Bar end caps

Plastic, Polyethylene (PE)

Gray

Pressure spring

Stainless steel AISI 301

Tommy nuts DIN 6307 are used for clamping and locking.

The sliding bar is protected against loss by the end caps and held in any position by the pressure spring.
