62444.4-M63-M50-MS GN 62444.4 Reducers

62444.4-M63-M50-MS

GN 62444.4 Reducers

for Cable Glands GN 62444, Brass, Metric Thread
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 62444.4

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 62444.4-M63-M50-MS
Size
M 63-M 50
d1
M 63 x 1.5
d2
M 50 x 1.5
d3
66
h
14
Length l
10
124
62444.4-M63-M50-MS drawing

Brass MS

Nickel-plated

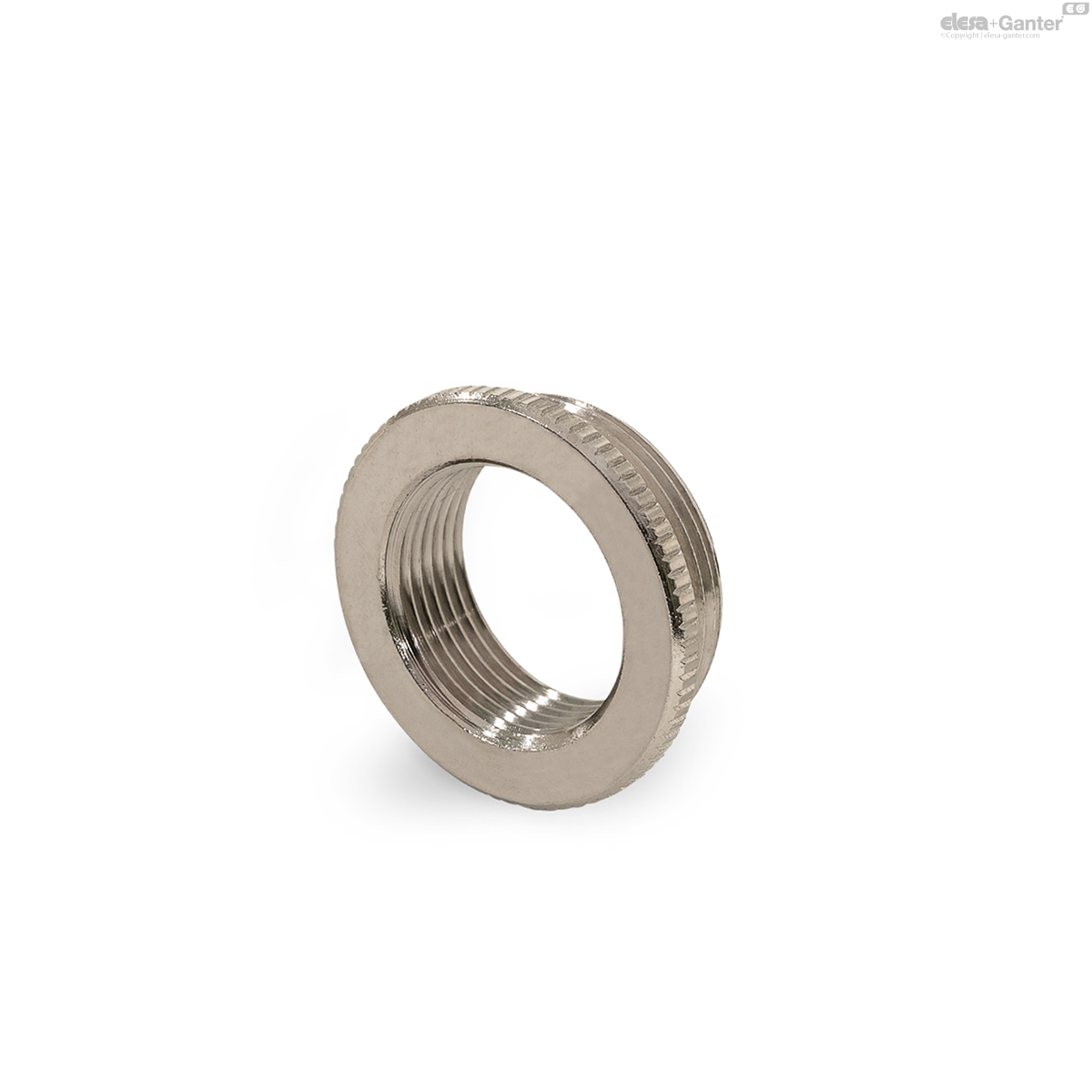

Reducers GN 62444.4 enable a transition from a larger to a smaller internal thread, allowing the use of smaller cable glands than the housing was designed for.

In combination with a mounting nut, fastening in a through hole is also possible.
